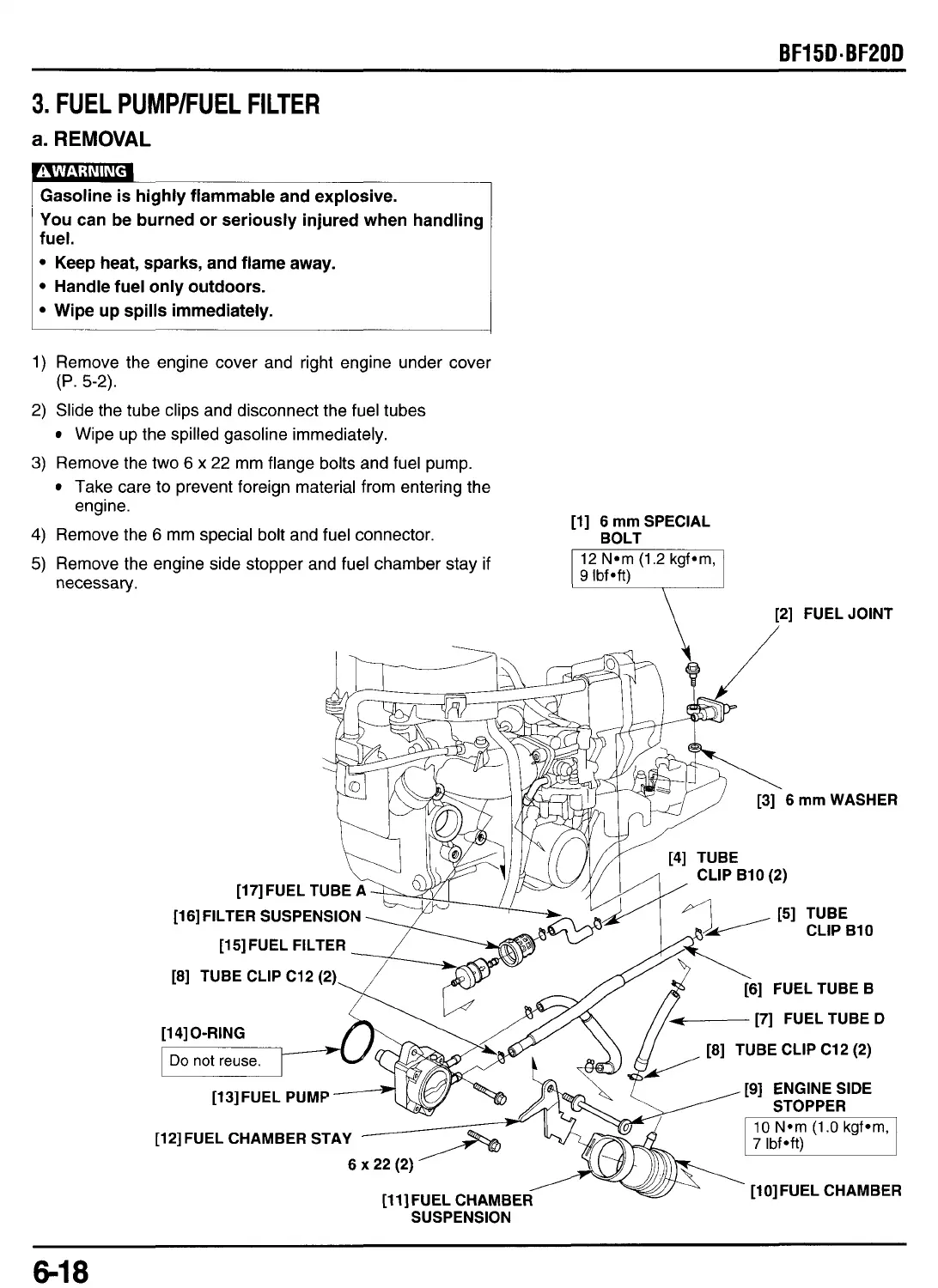

BF15D-BF20D
3.
FUEL PUMPlFUEL FILTER
a.
REMOVAL
Gasoline is highly flammable and explosive.
You can be burned or seriously injured when handling
fuel.
Keep heat, sparks, and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
1)
Remove the engine cover and right engine under cover
(P.
5-2).
2)
Slide the tube clips and disconnect the fuel tubes
Wipe up the spilled gasoline immediately.
3)
Remove the
two
6
x
22
mm flange bolts and fuel pump.
Take care
to
prevent foreign material from entering the
engine.
4)
Remove the
6
mm special bolt and fuel connector.
[l] 6
mm
SPECIAL
BOLT
[2] FUEL JOINT
5)
Remove the engine side stopper and fuel chamber stay if
necessary.
[16] FILTER SUSPENSIO
[15] FUEL FILTER
[8] TUBE CLIP C12
(2)
[7] FUEL TUBE D
[8] TUBE CLIP C12
(2)
[9] ENGINE SIDE
[12] FUEL CHAMBER STAY
[lo] FUEL CHAMBER
[11]FUEL CHAMBE
--
SUSPENSION
6-1 8
