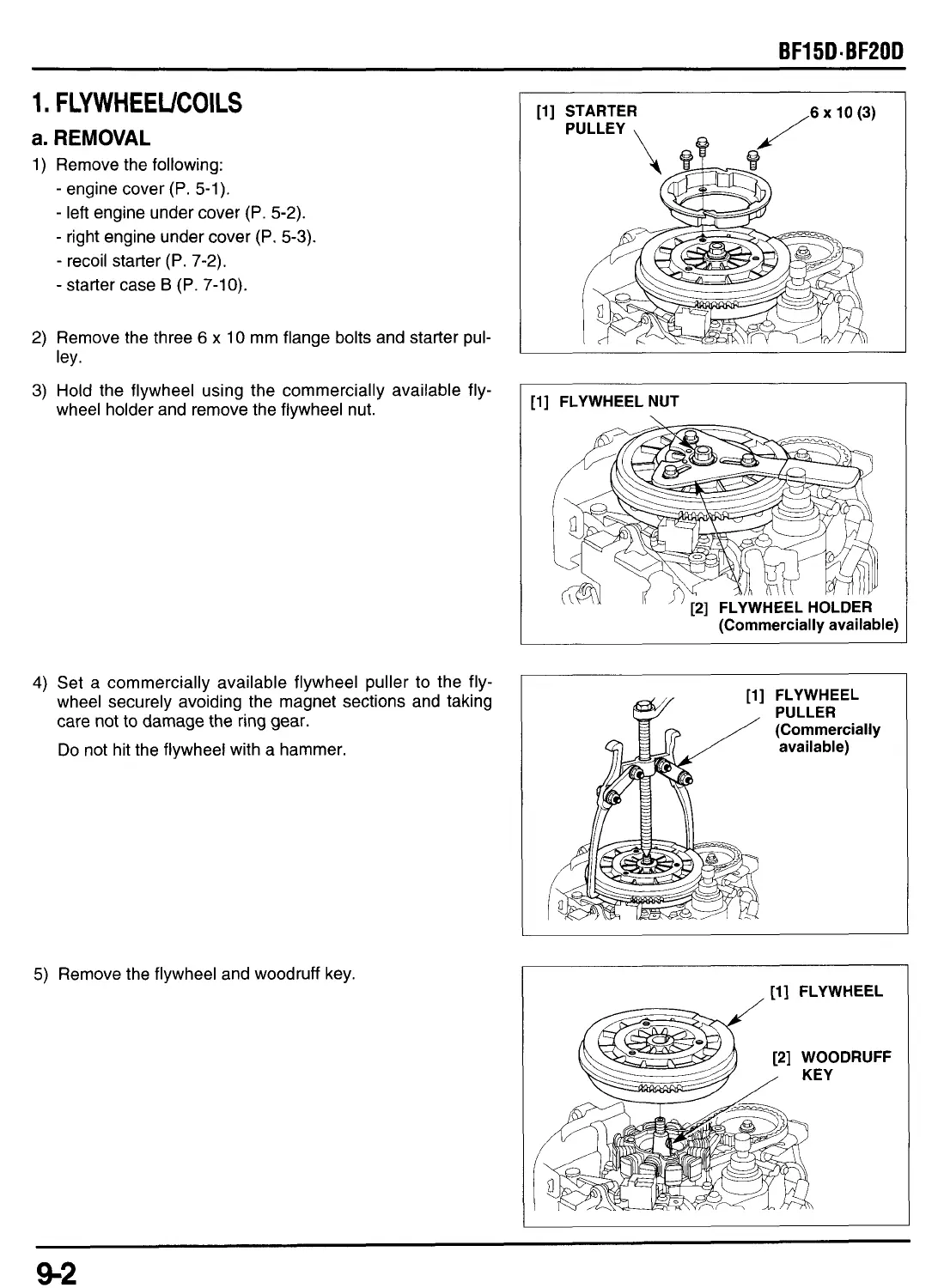

1. FLYWHEEUCOILS
a. REMOVAL
1) Remove the following:
- engine cover (P. 5-1).
- left engine under cover (P. 5-2).
- right engine under cover (P. 5-3).
- recoil starter (P. 7-2).
- starter case B (P. 7-10).
2) Remove the three 6 x 10 mm flange bolts and starter pul-
3) Hold the flywheel using the commercially available fly-
ley.
wheel holder and remove the flywheel nut.
4) Set a commercially available flywheel puller to the fly-
wheel securely avoiding the magnet sections and taking
care not to damage the ring gear.
Do not hit the flywheel with a hammer.
5) Remove the flywheel and woodruff key.
[l] STARTER
PULLEY
\
I [l] FLYWHEELNUT
.,a
(Commercially available)
[l] FLYWHEEL
PULLER
(Commercially
available)
[l] FLYWHEEL
[2] WOODRUFF
9-2

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
