Honda BF15D User Manual

BF15D-BF20D

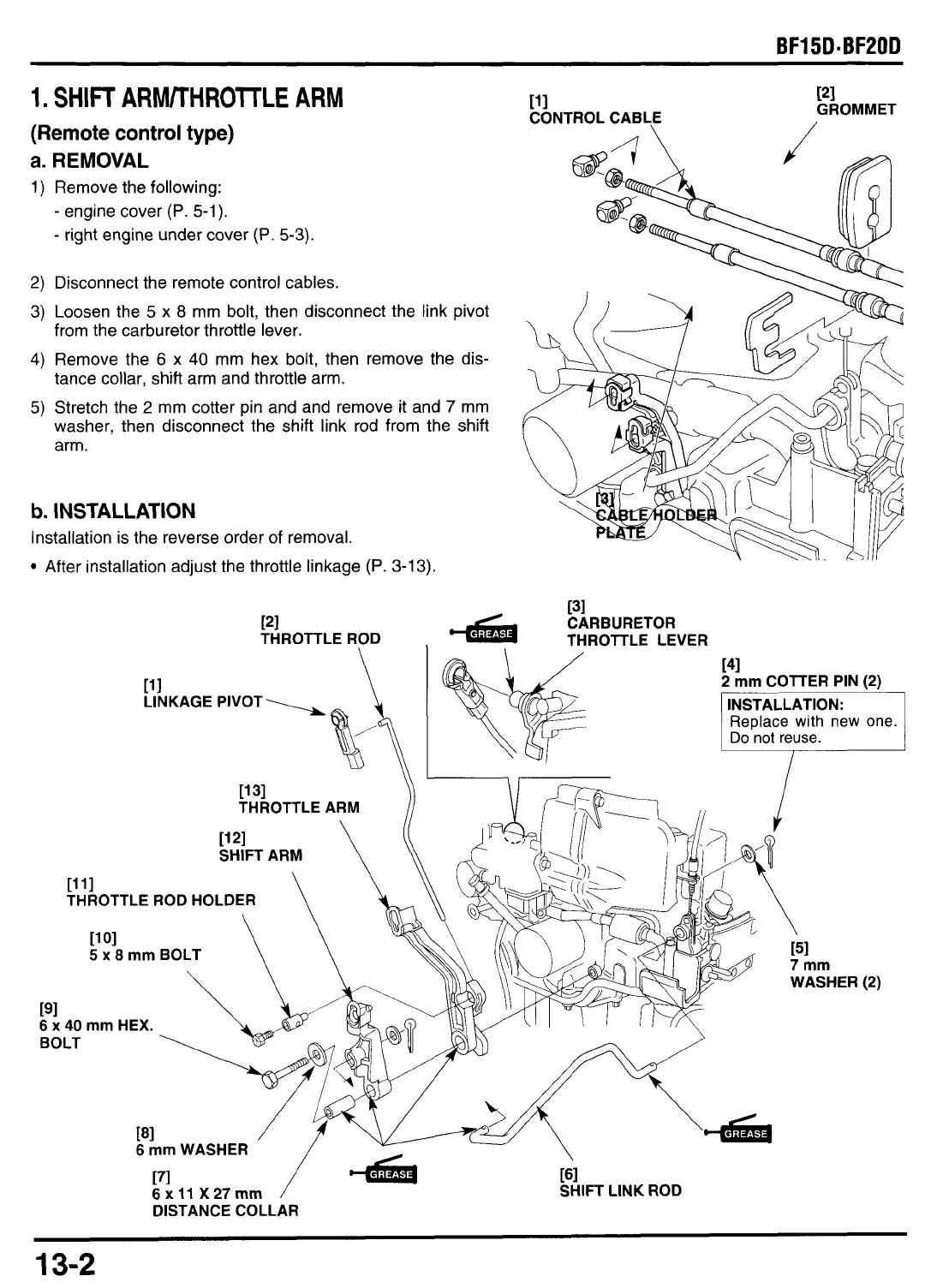

1. SHIFT ARMRHROTLE ARM
(Remote control type)
a. REMOVAL
1) Remove the following:
- engine cover (P. 5-1).
- right engine under cover (P. 5-3).
2) Disconnect the remote control cables.
3) Loosen the 5 x 8 mm bolt, then disconnect the link pivot
from the carburetor throttle lever.
4) Remove the 6 x 40 mm hex bolt, then remove the dis-
tance collar, shift arm and throttle arm.
5) Stretch the 2 mm cotter pin and and remove it and 7 mm
washer, then disconnect the shift link rod from the shift
arm.
b. INSTALLATION
Installation is the reverse order of removal.
After installation adjust the throttle linkage (P. 3-13).
t11
CONTROL CABLE
121
GROMMET
/
[31
CARBURETOR
4 THROTTLE LEVER
PI
THROTTLE ROD ,
[111
THROTTLE ROD HOLDER
[91
6 x 40 mm HEX.
BOLT
IFT LINK
ROD
DISTANCE COLLAR
1 3-2

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
