Honda BF15D User Manual

BF15D-BF20D

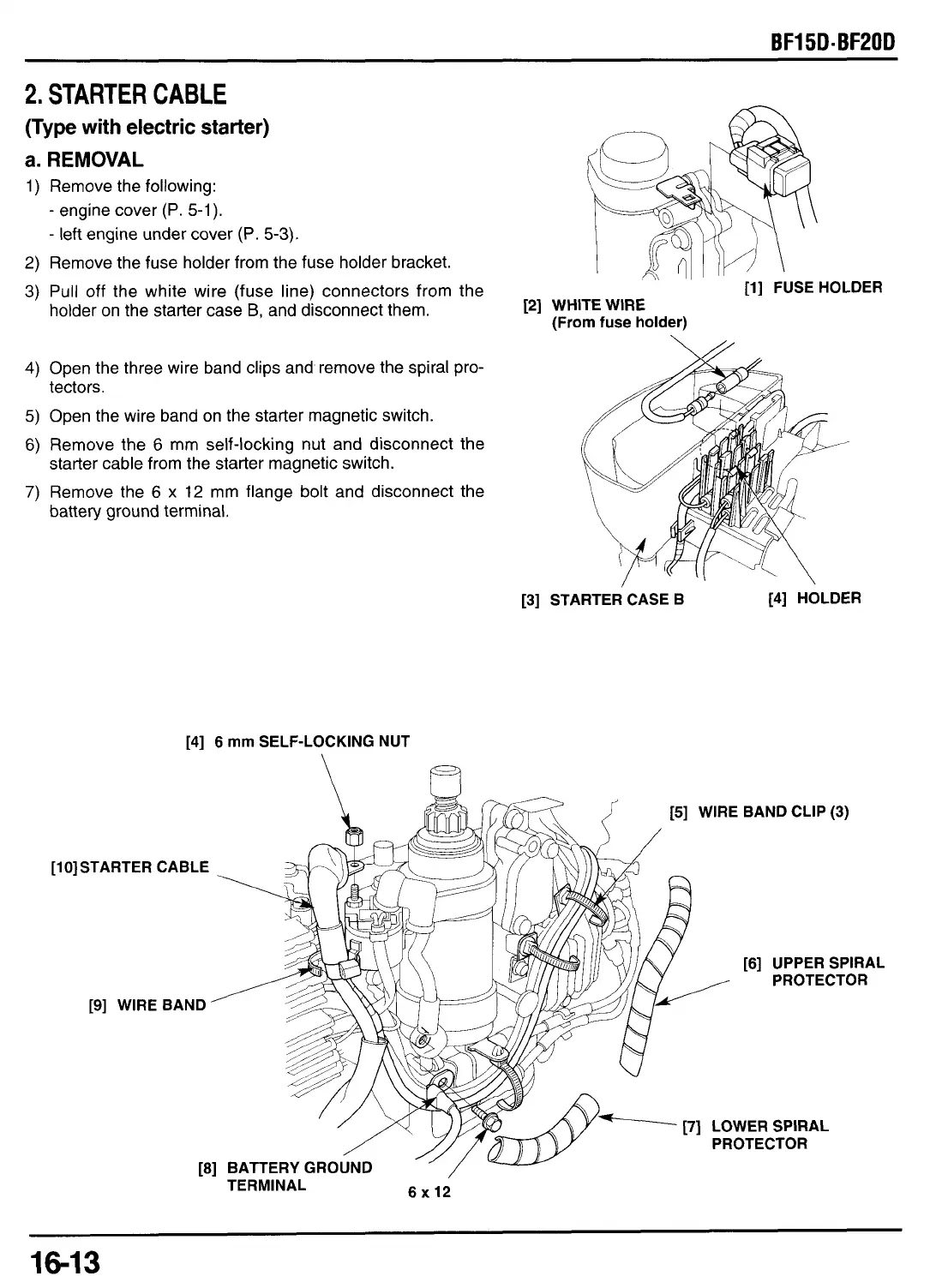

2. STARTER CABLE
(Type with electric starter)
a. REMOVAL
1) Remove the following:
- engine cover (P. 5-1).
- left engine under cover (P. 5-3).
2) Remove the fuse holder from the fuse holder bracket.
3) Pull off the white wire (fuse line) connectors from the
[l] FUSE HOLDER
holder on the starter case B, and disconnect them.
[2] WHITE WIRE
(From fuse holder)
4) Open the three wire band clips and remove the spiral pro-
5) Open the wire band on the starter magnetic switch.
6) Remove the 6 mm self-locking nut and disconnect the
7) Remove the 6 x 12 mm flange bolt and disconnect the
tectors.
starter cable from the starter magnetic switch.
battery ground terminal.
[3] STARTER CASE B
[4] HOLDER
[4] 6 mm SELF-LOCKING NUT
\
[5] WIRE BAND CLIP (3)
[lo] STARTER CABLE
[6] UPPER SPIRAL
PROTECTOR
[9] WIRE BAND
[7] LOWER SPIRAL
PROTECTOR
6 x 12
TERMINAL
16-13

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
