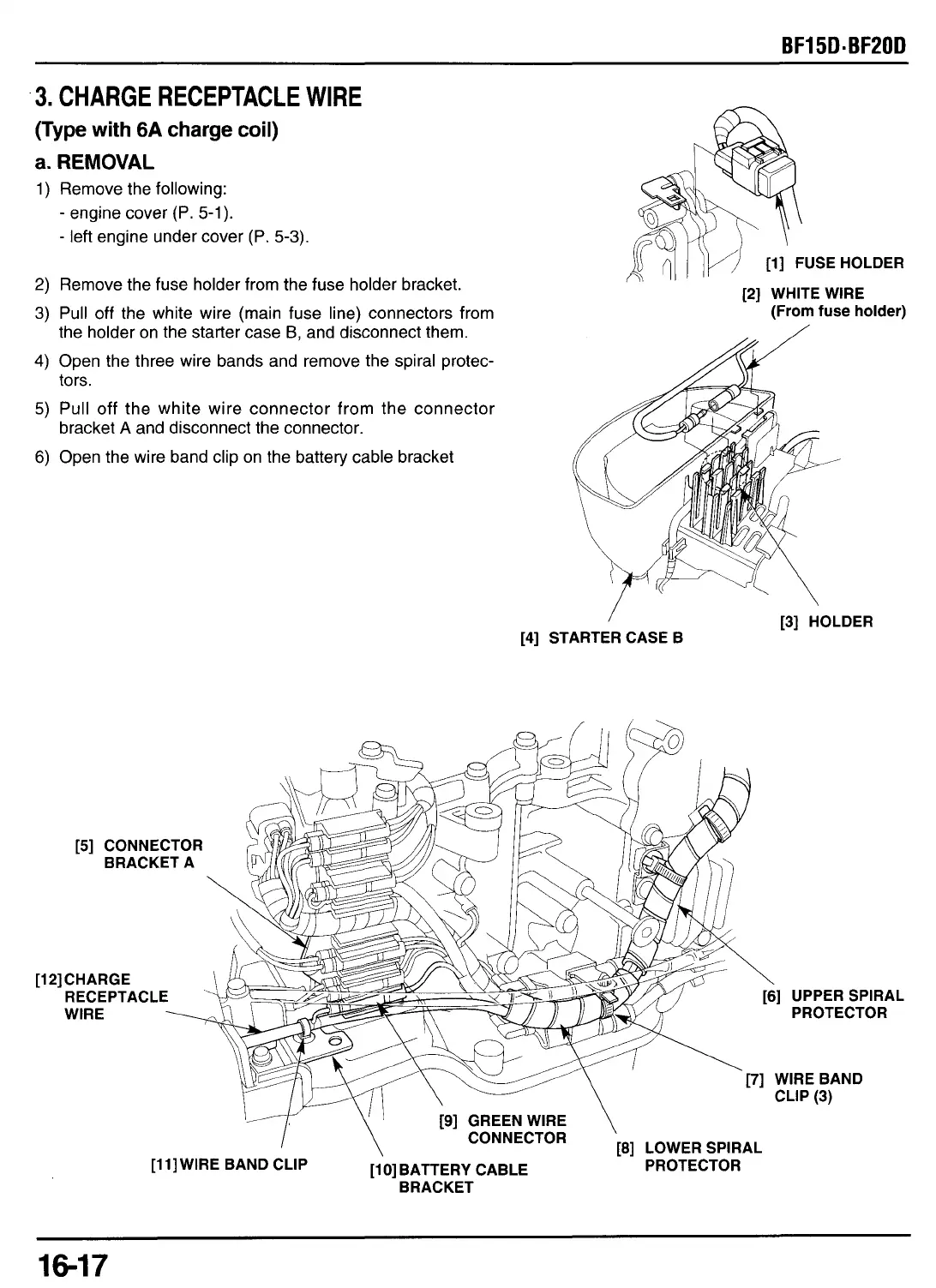

CHARGE RECEPTACLE WIRE

(Type with

charge coil)

REMOVAL

Remove the following:

engine cover

(P.

5-1).

left engine under cover

(P.

5-3).

[2] WHITE WIRE

Remove the fuse holder from the fuse holder bracket.

Pull off the white wire (main fuse line) connectors from

the holder on the starter case

and disconnect them.

Open the three wire bands and remove the spiral protec-

tors.

Pull

off

the white wire connector from the connector

bracket

and disconnect the connector.

Open the wire band clip on the battery cable bracket

(From fuse holder)

[3] HOLDER

[4] STARTER CASE B

[5] CONNECTOR

[12] CHARGE

PROTECTOR

CLIP

(3)

[ll] WIRE BAND CLIP [lo] BATTERY CABLE PROTECTOR

BRACKET

16-17
