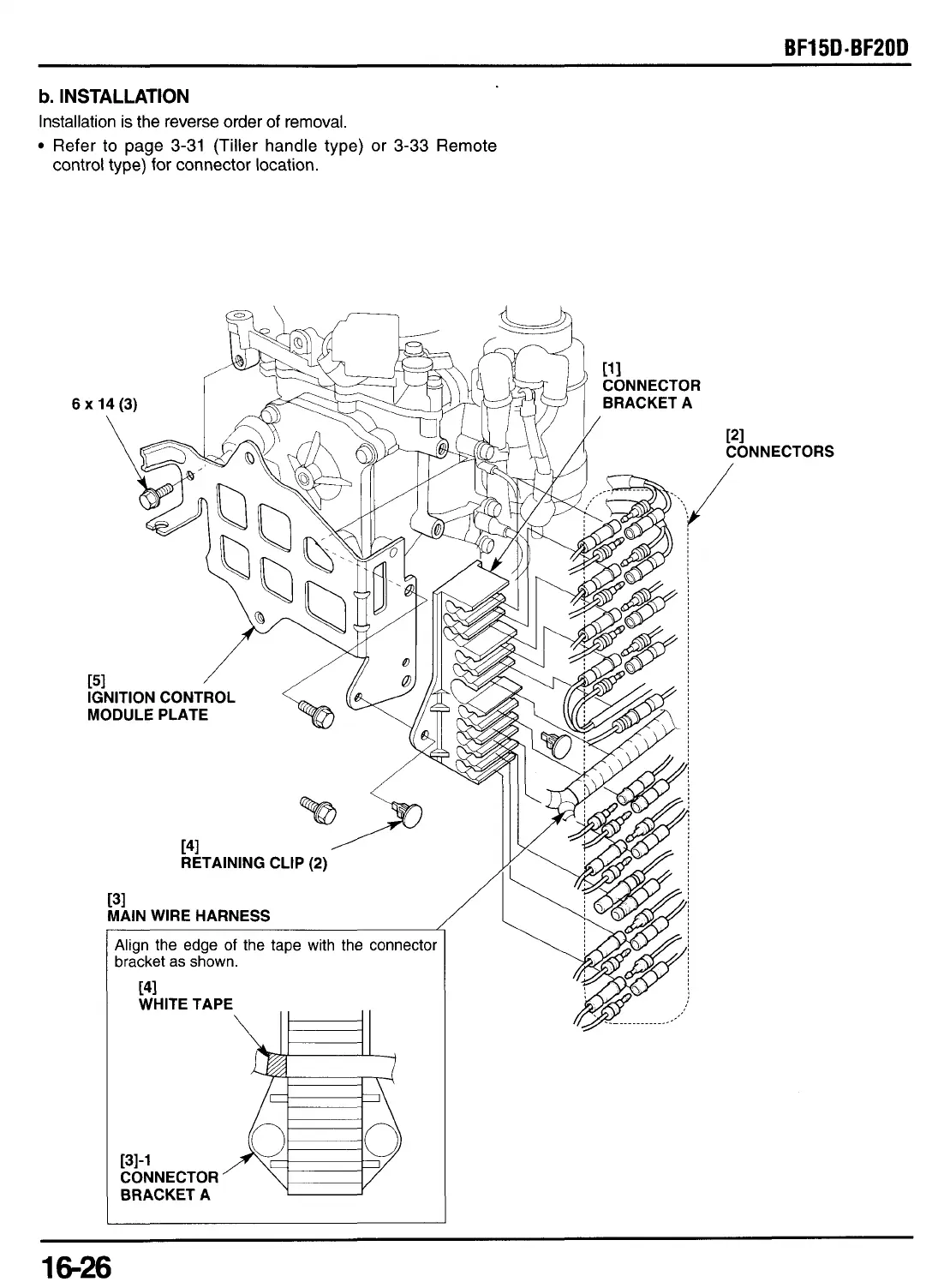

BF15D-BF20D
b.
INSTALLATION
Installation is the reverse order
of
removal.
Refer
to
page
3-31
(Tiller handle type) or
3-33
Remote
control type) for connector location.
[41
/
RETAINING CLIP
(2)
131
MAIN
WIRE
HARNESS
Align the edge
of
the tape with the connector
bracket
as
shown.
WHITE TAPE
141
[31-1
CONNECTOR
BRACKET A
121
CONNECTORS
16-26
