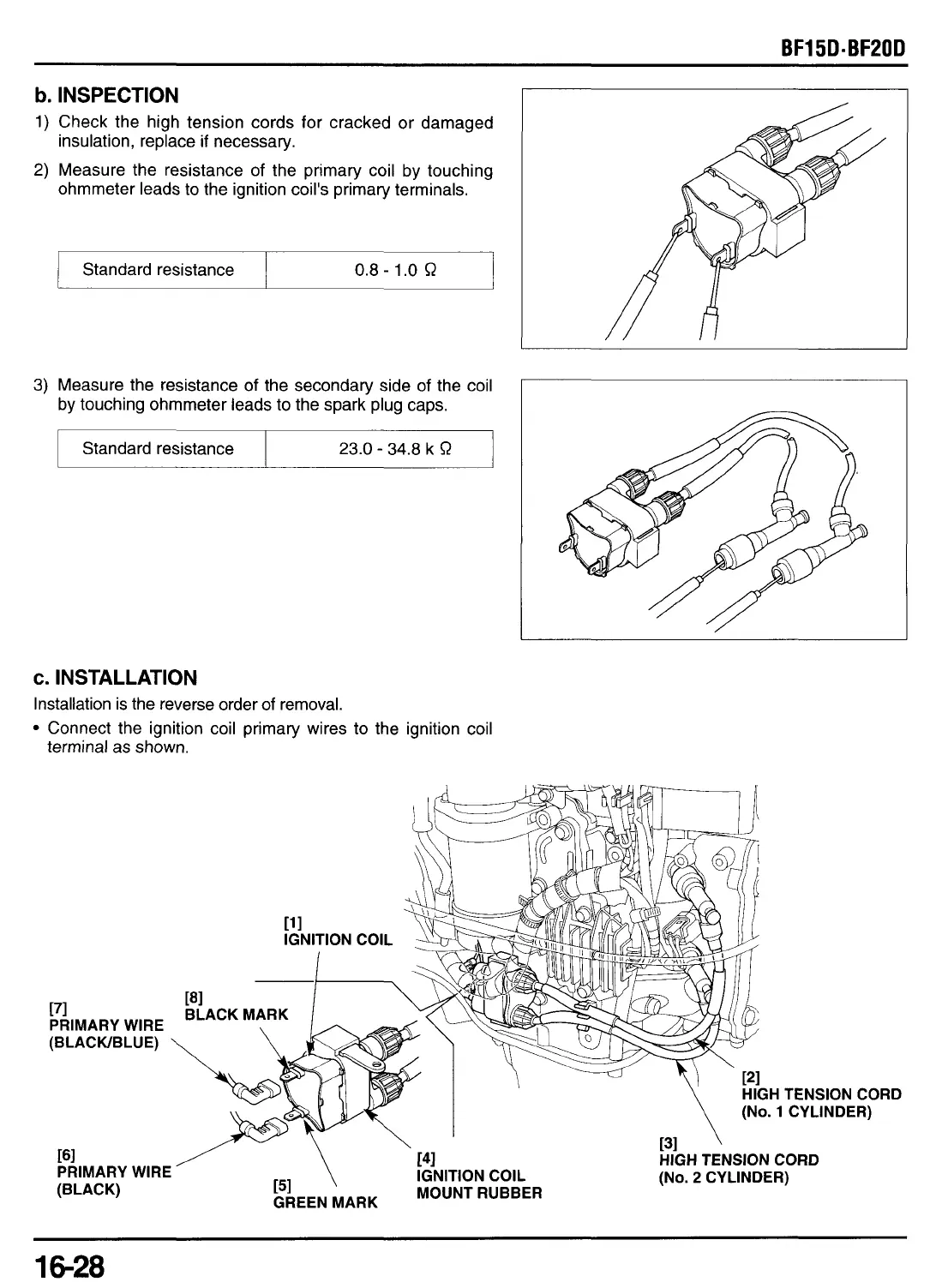

b. INSPECTION
1) Check the high tension cords for cracked or damaged
insulation, replace
if necessary.
2) Measure the resistance of the primary coil by touching
ohmmeter leads to the ignition coil's primary terminals.
1 Standard resistance I 0.8- 1.0 R 1
3) Measure the resistance of the secondary side of the coil
by touching ohmmeter leads to the spark plug caps.
I Standard resistance I 23.0 - 34.8 k R I
c. INSTALLATION
Installation is the reverse order of removal.
Connect the ignition coil primary wires to the ignition coil
terminal as shown.
171 BLACK MARK
PRIMARY WIRE
(B LAC WBLU E)
HIGH TENSION CORD
(No.
1 CYLINDER)
[GI CORD
PRIMARY WIRE
(BLACK) MOUNT
RUBBER
IGNITION COIL R)
GREEN MARK
16-28

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
