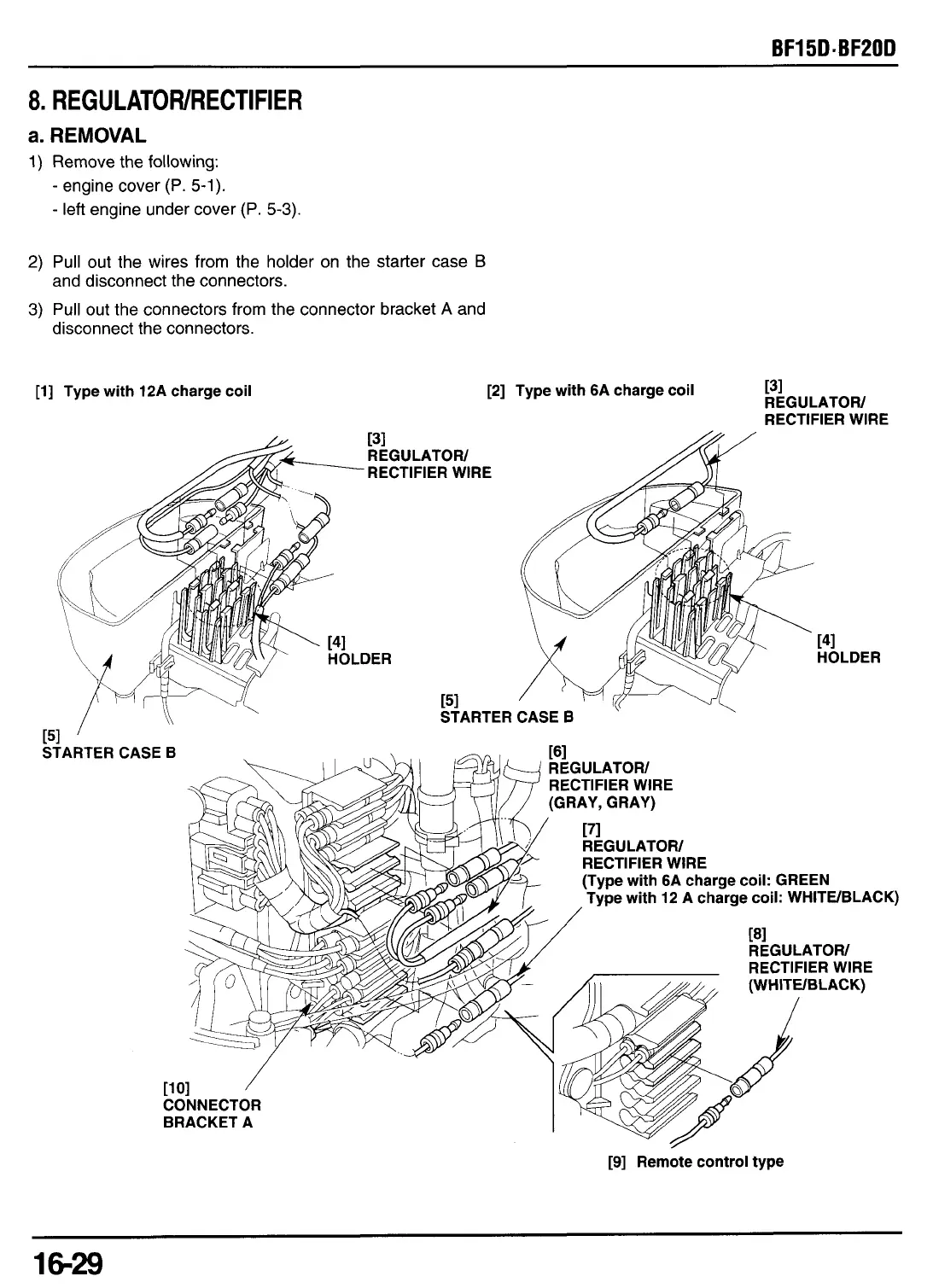

8. REGULATOWRECTIFIER
REMOVAL
Remove the following:
- engine cover (P. 5-1).
- left engine under cover (P. 5-3).
Pull out the wires from the holder on the starter case B
and disconnect the connectors.
Pull out the connectors from the connector bracket
A and
disconnect the connectors.
[l] Type with 12A charge coil
[2] Type with 6A charge coil
131
REGULATOR/
RECTIFIER WIRE
[9] Remote control type
16-29
