BF15DmBF20D
6.
VALVE CLEARANCE
Inspection

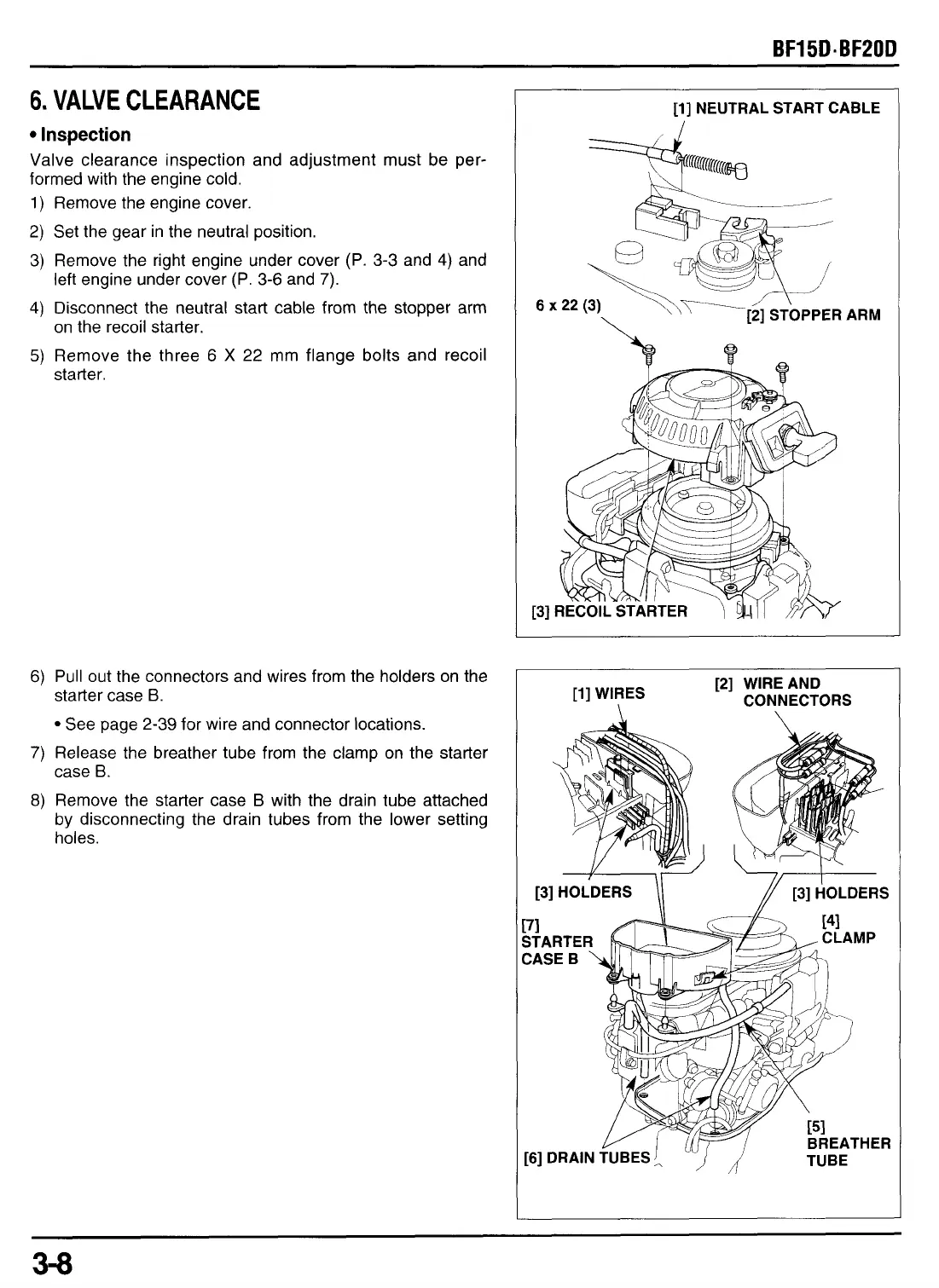

Valve clearance inspection and adjustment must be per-
formed with the engine cold.
1)
Remove the engine cover.
2) Set the gear in the neutral position.
3) Remove the right engine under cover (P.
3-3
and
4)
and
4)
Disconnect the neutral start cable from the stopper arm
5)
Remove the three
6
X
22 mm flange bolts and recoil
left engine under cover (P.
3-6
and
7).
on
the recoil starter.
starter.
6)
Pull out the connectors and wires from the holders on the
starter case
B.
See page 2-39 for wire and connector locations.
7)
Release the breather tube from the clamp on the starter
case
B.
8)
Remove the starter case
B
with the drain tube attached
by
disconnecting the drain tubes from the lower setting
holes.
6
x
22
[l]
NEUTRAL START CABLE
ARM
[l]
WIRES
[2] WIRE AND
CONNECTORS
BREATHER
To Next Page
