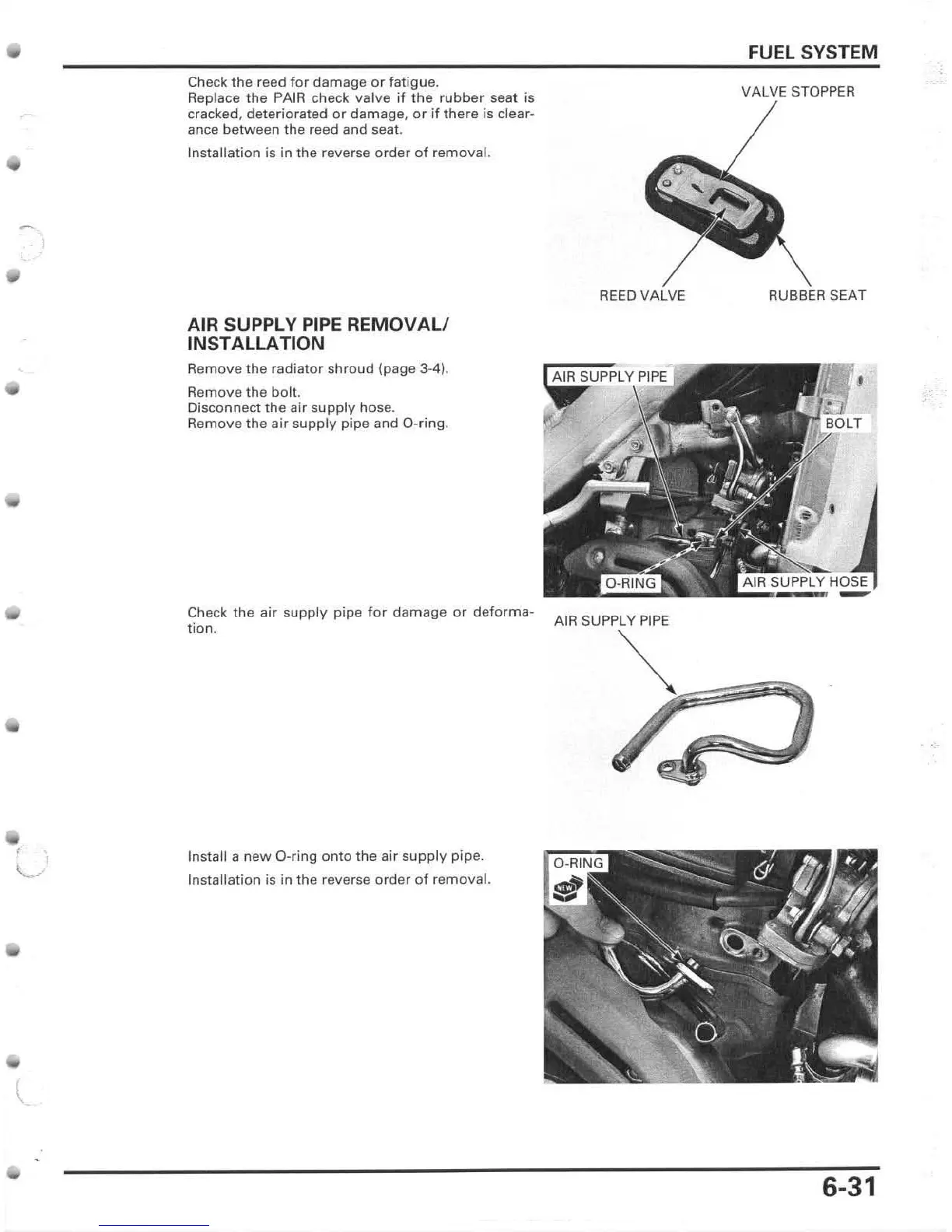

Check
the
reed
for
damage
or
fatigue.
Replace the
PAIR
check valve if the r
ubber
sea
t
is
cracked, deteriorated or
damage
,
or
if
there
is clear-
ance
between
the
reed and seat.
Installation is in
the
reverse
order
of
removal.
AIR SUPPLY
PIPE
REMOVAL!
INSTALLATION
Remove
the
radiator
shroud
(page 3-4),
Remove
the
bolt.
Disconnect
the
ai
r
supply
hose.
Remove
the
air
supply
pipe and O-ring.
Check the
ai
r
supply
pipe
for
damage
or
deforma-
tion.
Install a
new
O-ring
onto
the
ai
r
supply
pipe.
Installation is in
the
reverse
order
of
removal.
AIR SUPPLY PIPE
FUEL SYSTEM
VALVE STOPPER
RUI'B'HSEAT
6-31
