Honda CRF450R 2007 Service Manual

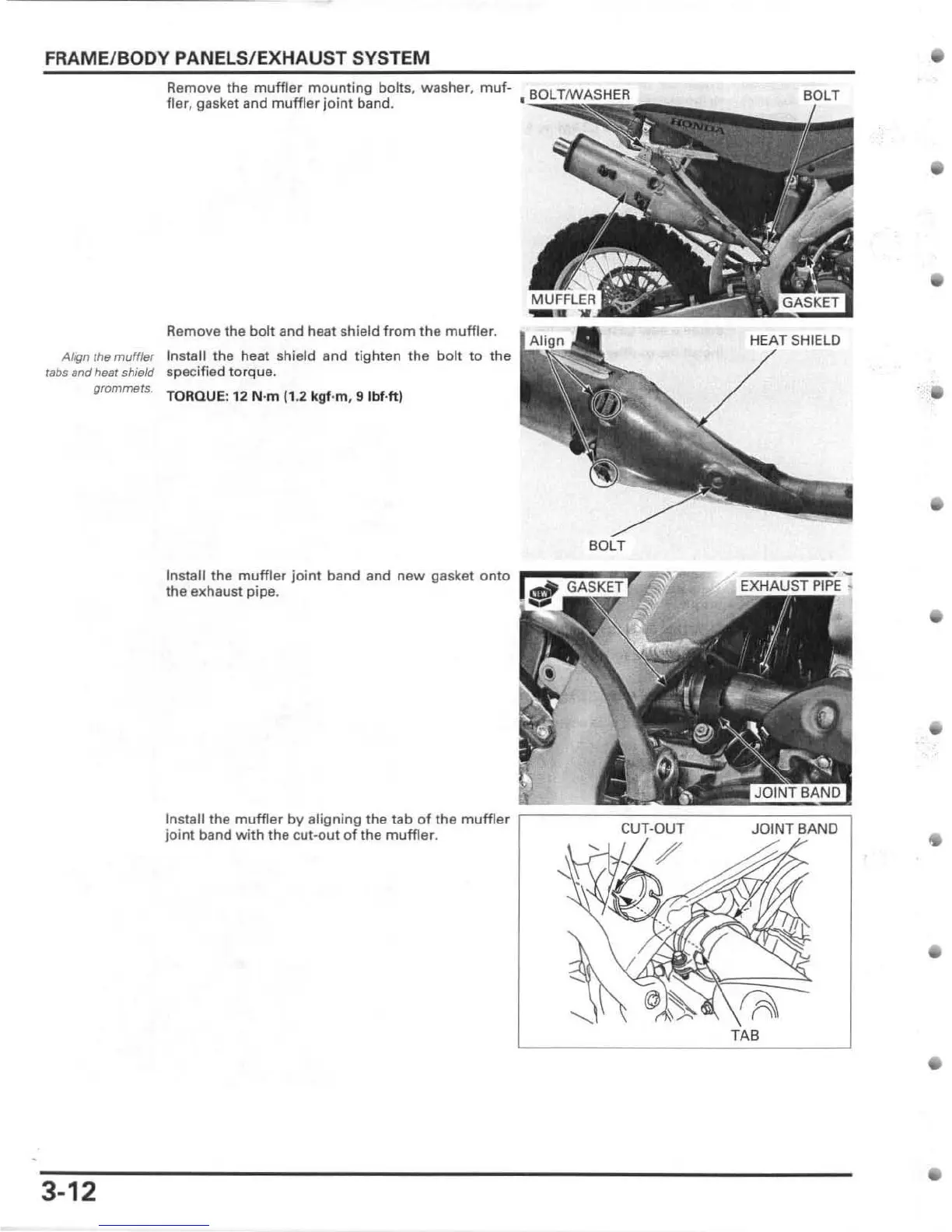

FRAME/BODY PANELS/EXHAUST SYSTEM
Remove the muffler mounting bolts , washer, muf-
fler, gasket and muffler joint band.
Remove the bolt and heat shield fr
om the muffler.
AI'9n the muffler Install the heat shield and tighten the bolt to the
labs 8nd heBt shield speC ified torqu e.
grommets.
TORQUE: 12 N'm (1.2 kgf·m, 9 Ibf.ft)
BOLT
Install the muffler joint band and new gasket onto r~~~ ~
the exhaust pipe.
HE AT SHIELD
Install the muffler by aligning the tab of the muffler ~ ~-~~~~~~~~~ ~:::::::::::~
joint band with the cut -o ul of the muffler .
T AB
3-12
•

Honda CRF450R 2007 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	96.0mm x 62.1mm
Compression Ratio	12.0:1
Transmission	5-speed
Final Drive	#520 chain; 13T/48T
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	110/90-19
Wheelbase	58.3 inches
Seat Height	37.6 inches
Fuel Capacity	1.9 gallons
Induction	Keihin 40mm carburetor
Ignition	CDI
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment
Trail	4.6 inches
