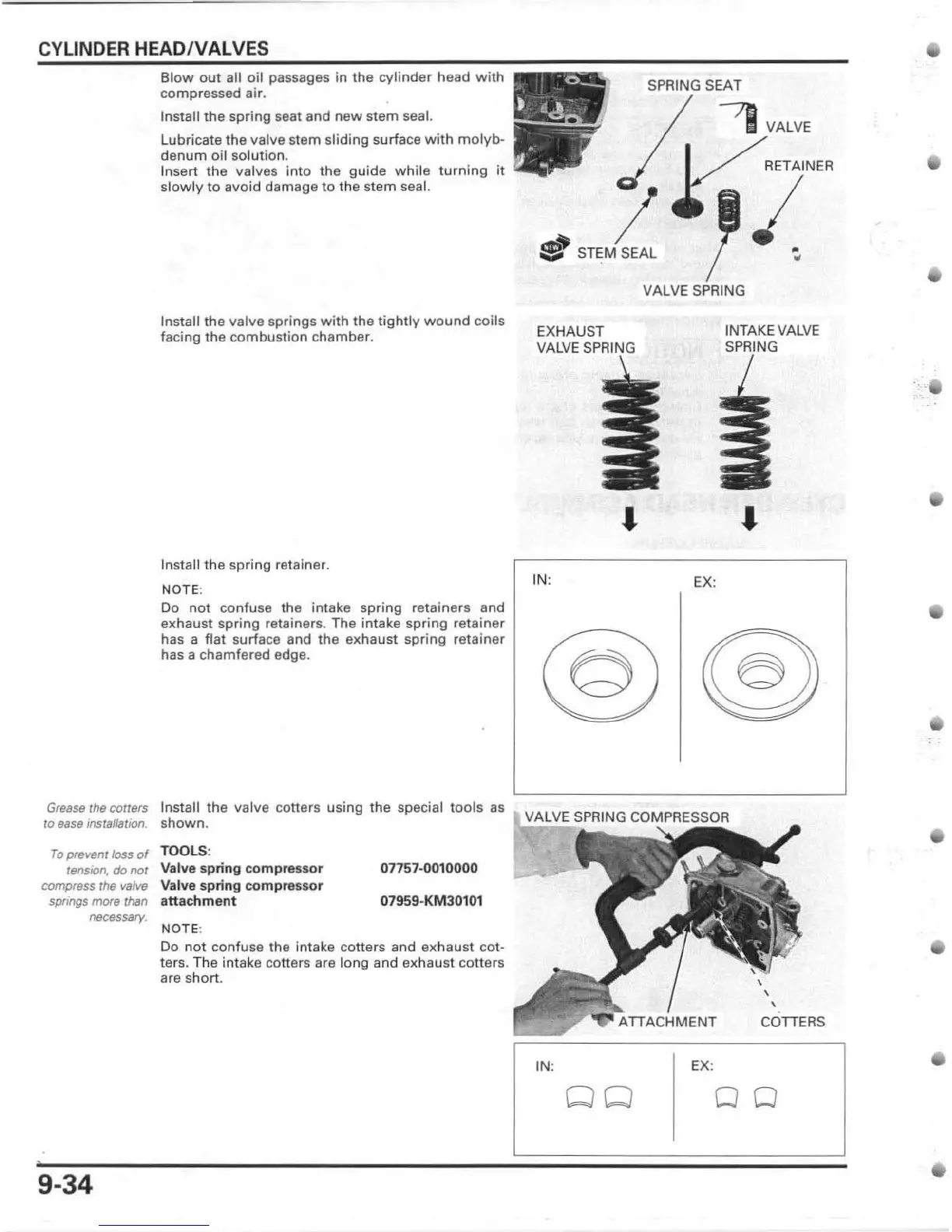

CYLINDER HEADIV ALVES
Blowout all oil passages in the cylinder head with
compressed air.
Install the spring seat and new stem seal.
Lubricate the valve stem sliding surface with molyb-
denum oil sol ution .
Insert the valves into the guide whi le turning it
slowly to avoid damage to the stem seal.
Install the va lve springs with the tightly wound coils
facing the combustion chamber.
Install the spring retainer.
NOTE:
Do not confuse the intake spring retainers and
exhaust spring retainers. The intake spring retainer
has a flat surface and the exhaust spring retainer
has a chamfered edge.
Gresse IlIecolters Install the valve coners using the special tools as
to ease ins/allation. shown.
To preV6n1loss of TOOLS :
16nsion, do no r Valve s prin g co mp ressor
compress rhe valve Valve s pring co mp ressor
spnngs more than atta c hm e nt
necessary.
NOTE;
07751·0010000
01959·
KM 3 0101
Do not confuse the intake cotters and exhaust cot-
ters. The intake cotters are long and exhaust cotte rs
are short.
9-34
SPRING SEAT
-:7J VALVE
fI =Z , ;
EXHAUST
VALV E SPR I NG
•
IN:
IN:
VALVE SPRING
INTAKE VALVE
•
EX:
,
COTTERS
EX:
00
•

Honda CRF450X 2005 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	96.0mm x 62.1mm
Compression Ratio	12.0:1
Valve Train	Unicam, four-valve
Transmission	Wide-ratio five-speed
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	110/100-18
Wheelbase	58.3 inches
Seat Height	37.6 inches
Fuel Capacity	1.9 gallons
Ignition	Solid-state CD with electronic advance
Final Drive	520 O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Induction	Keihin 40mm flat-slide carburetor
