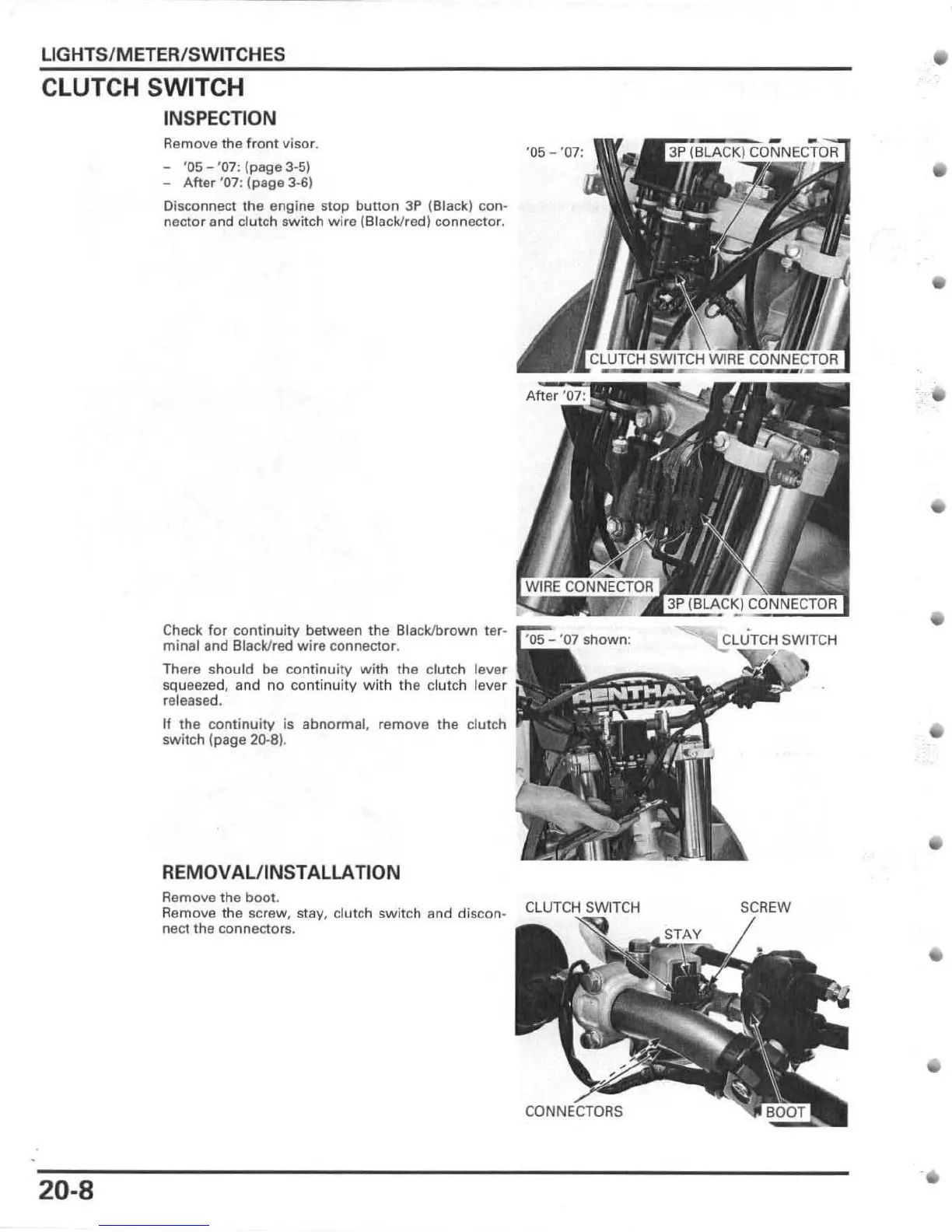

LIGHTS/ METER/SWITCHES
CLUTCH SWITCH
INSPECTION
20-8
Remove the front visor.
-
'05 - '0 7: (page 3-5)
-
Aher '07: (page 3-6)
Disconnect the engine stop button 3P (Black) con-
nector and clutch switch wire (B lack/red) connector.
Check fDr continuity between the Black/brown ter -
minal and Black/red wire connector.
There should be continuity with the clutch lever
squeezed, and no continuity
wi th the cl utch lever
released.
If the continuity is abnormal. remove the clutch
switch (page 20-8).
REMOVAUINSTALLA TION
Remove the boot.
Remove the screw, stay, clutch switch and discon-
nect the connectors.
'05 - '07:

Honda CRF450X 2005 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	96.0mm x 62.1mm
Compression Ratio	12.0:1
Valve Train	Unicam, four-valve
Transmission	Wide-ratio five-speed
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	110/100-18
Wheelbase	58.3 inches
Seat Height	37.6 inches
Fuel Capacity	1.9 gallons
Ignition	Solid-state CD with electronic advance
Final Drive	520 O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Induction	Keihin 40mm flat-slide carburetor
