Honda CRF450X 2005 User Manual

L

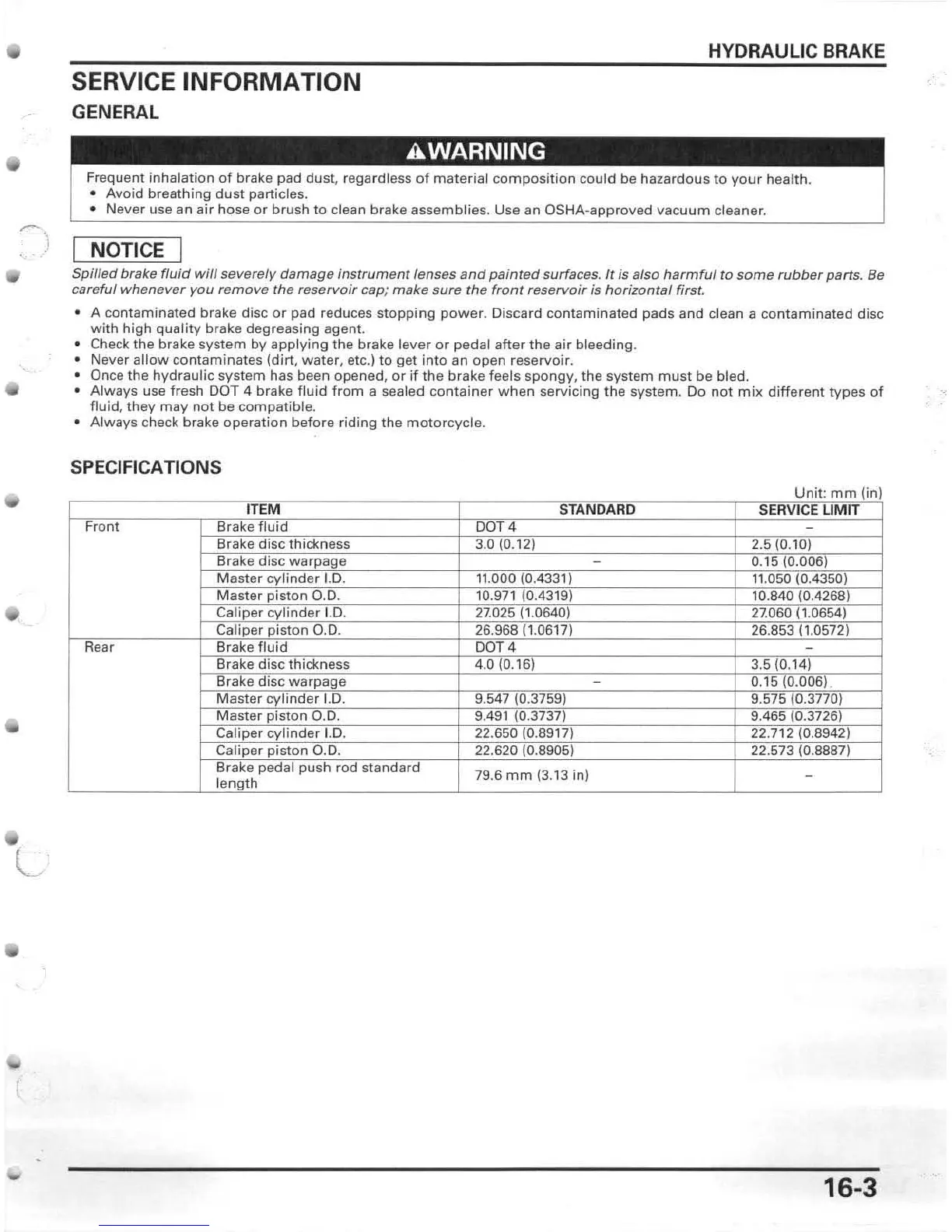

HYDRAULIC BRAKE
SERVICE INFORMATION
GENERAL
AWARNING
Frequent inhalation of brake pad dust , regardless of material composition could be hazardous to your health .
• Avoid breathing dust particles .
• Never use an air hose or brush to ctean brake assemblies. Use an OSHA-approved vacuum cleaner.
; I NOTICE I
Spilled brake fluid will severely damage instrument lenses and painted surfaces. It is also harmful to some rubber parts. Be
careful
whenever you remove the reservoir cap; make sure the front reservoir is horizontal first.
• A contaminated brake disc or pad reduces stopping power. Discard contaminated pads and clean a contaminated disc
with high
qual ity brake degreasing agent.
• Check the brake system by applying the brake lever or pedal after the air bleeding.
• Never allow contaminates (dirt, water, etc.) to get into an open reservoir.
• Once the hydraulic system has been opened, or if the brake feels spongy, the system must be bled.
• Always use fresh DO T 4 brake fluid from a sealed container when servicing t he system. Do not mix different types of
fluid , they may not be compat ible.
• Always check brake operation before riding the motorcycle .
SPECIFICATIONS
Fcoot
R,,,
TEM
I ;
ke IISC i
ke lise
16-3

Honda CRF450X 2005 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	96.0mm x 62.1mm
Compression Ratio	12.0:1
Valve Train	Unicam, four-valve
Transmission	Wide-ratio five-speed
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	110/100-18
Wheelbase	58.3 inches
Seat Height	37.6 inches
Fuel Capacity	1.9 gallons
Ignition	Solid-state CD with electronic advance
Final Drive	520 O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Induction	Keihin 40mm flat-slide carburetor
