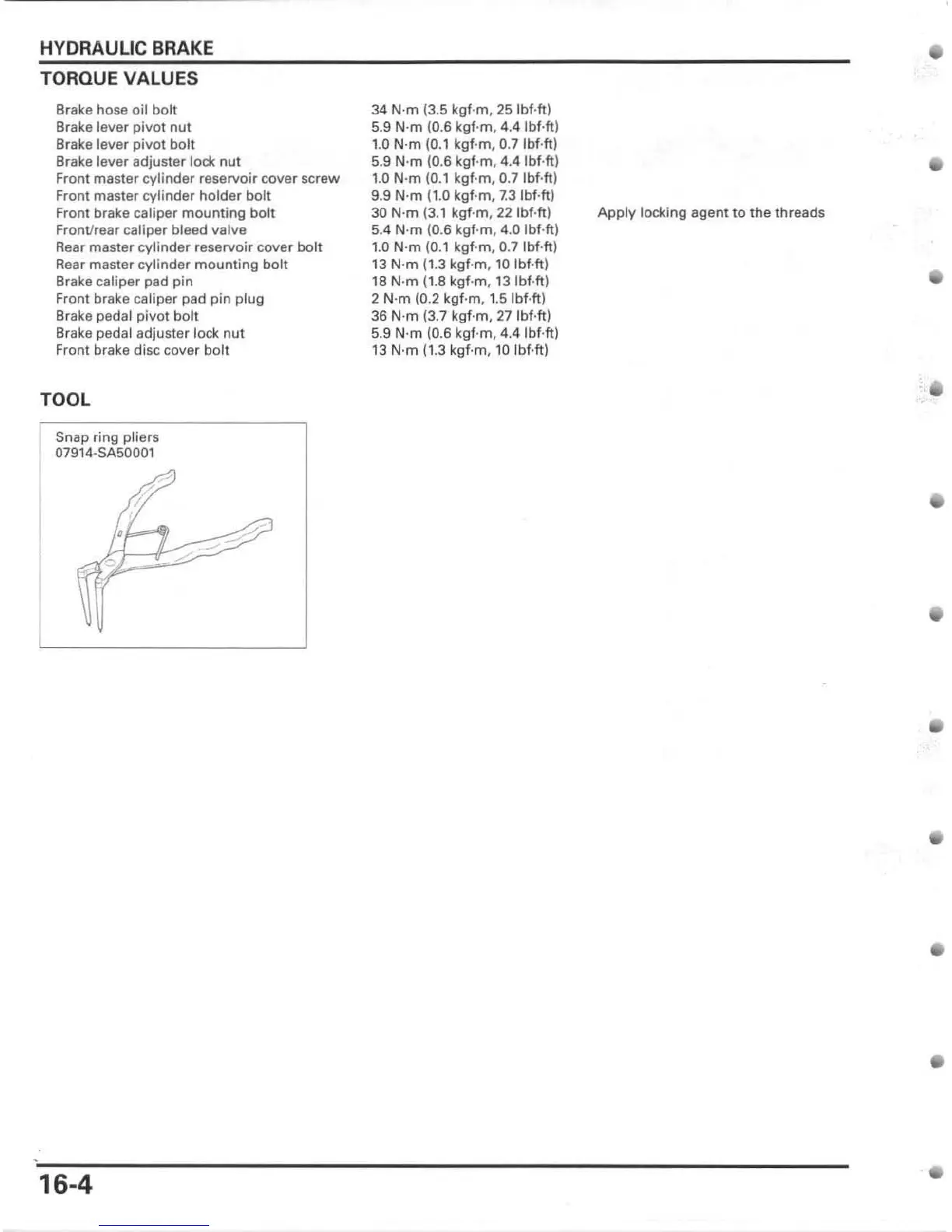

HYDRAULIC BRAKE
TORQUE VALUES
Brake hose oil bolt
Brake lever pivot nut
Brake lever pivot bolt
Brake lever adjuster lock nut
Front master cy linder reservoir cover screw
Front master cylinder
holder bolt
Front brake caliper mounting bolt
Fron t/ rear caliper bleed valve
Rear master cy linder reservoir cover bolt
Rear master cylinder mounting bolt
Brake caliper pad pin
front brake caliper pad pin plug
Brake pedal pivot bolt
Brake pedal adjuster lock nut
Front brake disc cover bolt
TOOL
Snap ring pliers
07914-SA50001
16-4
34 N-m (3.5 kgf - m, 25 Ibf.fU
5.9 N-m (0 .6 kgf · m, 4.4 Ibf.ft)
to N-m (0.1 kgf-m. 0.7 IbHt)
5.9 N'm (0.6 kgf-m, 4.4 Ibf.ftl
to N-m (0.1 kgf -m, O .7I hf.ft)
9.9 N-m (to kgf -m, 7.3 Ibf· h)
30 N-m (3.1 kgf·m, 22 Ibf.ft)
5.4 N·m (0.6 kgf·m, 4.0 Ibf.ftj
to N-m (0.1 kgf ·m, 0.7Ibf·ft)
13 N·m (1.3 kgf·m. 10 Ibf.ft)
18 N·m (1.8 kgf·m, 13Ibf ·ft)
2 N·m (0.2 kgf·m, 1.5 fbf·ft)
36 N'm (3.7 kgf·m, 27 Ibf·ft)
5.9 N'm (0.6 kgf · m, 4.4 Ibf·ft)
13 N·m ( 1. 3 kgf·m, 10 Ibf·ft)
Apply locking agent to the threads
•
•

Honda CRF450X 2005 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	96.0mm x 62.1mm
Compression Ratio	12.0:1
Valve Train	Unicam, four-valve
Transmission	Wide-ratio five-speed
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	110/100-18
Wheelbase	58.3 inches
Seat Height	37.6 inches
Fuel Capacity	1.9 gallons
Ignition	Solid-state CD with electronic advance
Final Drive	520 O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Induction	Keihin 40mm flat-slide carburetor
