Honda CRF450X 2005 User Manual

l

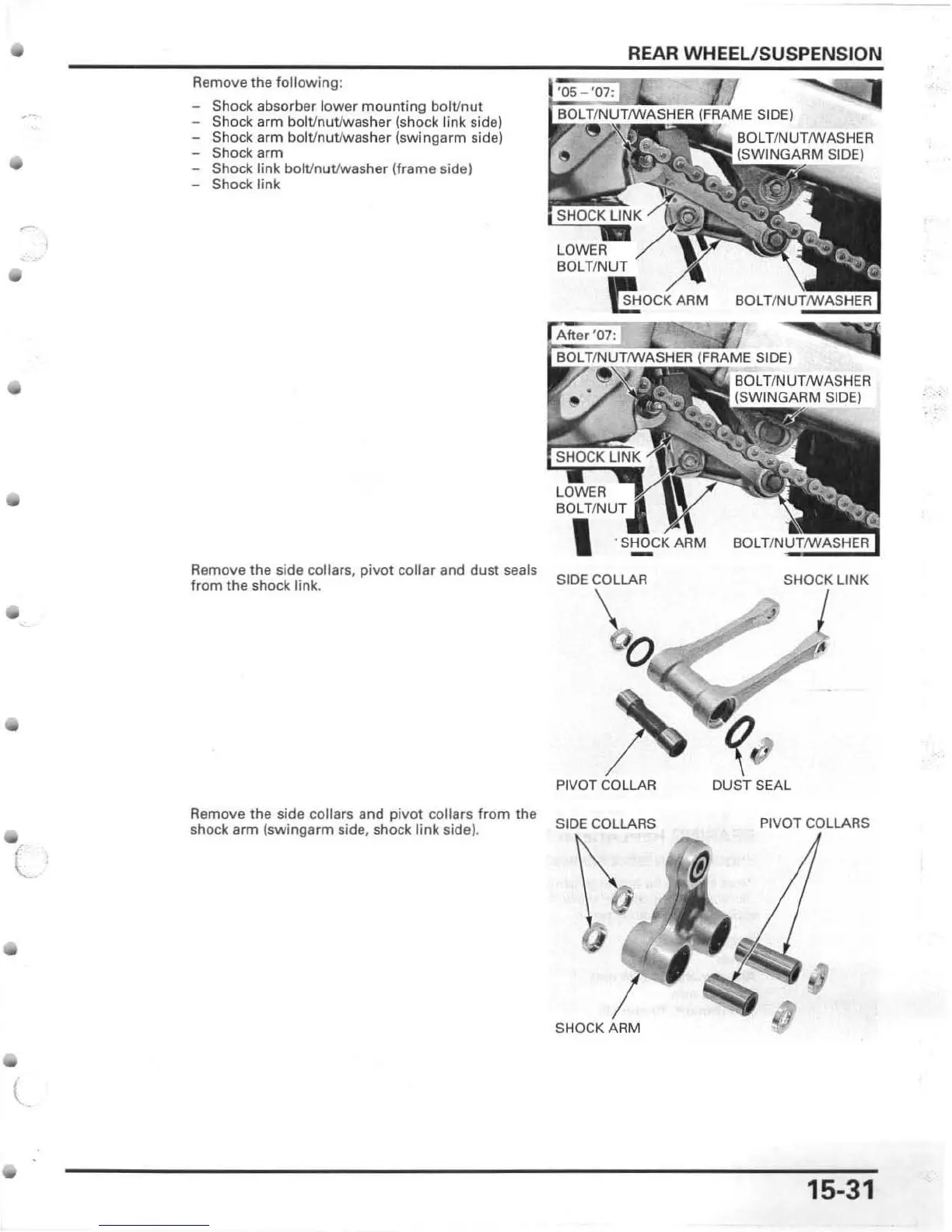

Remove the following :
- Shock absorber l ower mounting bolt/nut
Sho ck a rm bolt/nut/washer (shock link side)
-
S ho ck arm bolt/nut/washer (swinga rm side)
-
Shock a rm
- Shock link bolt/nutlwasher (frame side)
-
Shock link
Remove the side collars, pivot collar and dust seals
from the shock link.
Remove the sida collars and pivot collars from the
shock arm (
swingarm side, shock link side ).
REAR WHEEL/SUSPENSION
LOWER
BOLT/
NU T
I
-
SIDE COLLAR
PIVOT COLLAR
SIDE COLLARS
SHOCKUNK
DUST SEAL
PIVOT COL.LAI"
15-31
'.

Honda CRF450X 2005 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	96.0mm x 62.1mm
Compression Ratio	12.0:1
Valve Train	Unicam, four-valve
Transmission	Wide-ratio five-speed
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	110/100-18
Wheelbase	58.3 inches
Seat Height	37.6 inches
Fuel Capacity	1.9 gallons
Ignition	Solid-state CD with electronic advance
Final Drive	520 O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Induction	Keihin 40mm flat-slide carburetor
