Honda CRF450X 2005 User Manual

~,
I
l

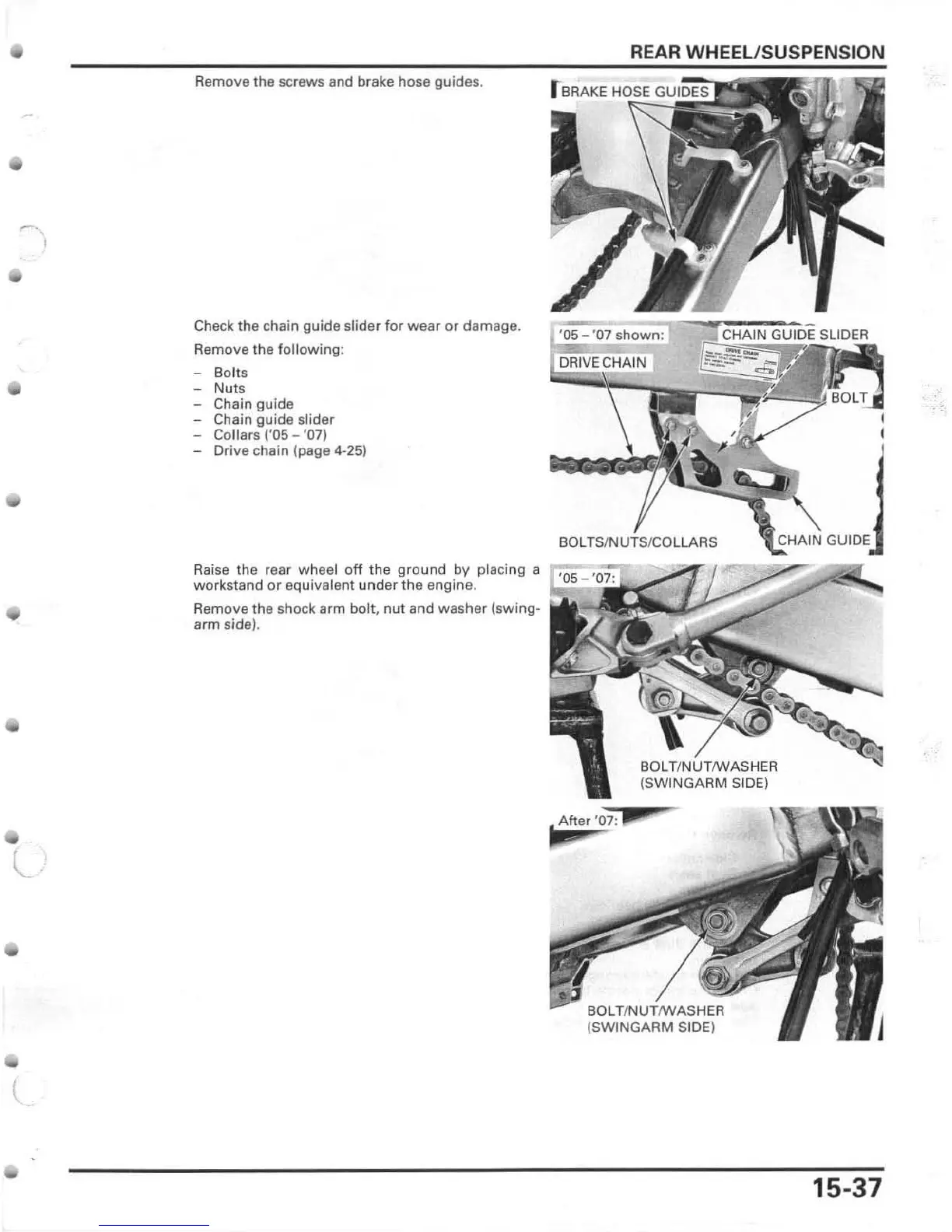

Remove 1he screws and brake hose guides.
Check 1he chain guide slider for wear or damage.
Remove the
following :
- Bo lts
Nuts
Chain guide
Chain guide slider
Collars ('05 - '07)
Drive chain !page 4-25)
Raise the rear wheel
off the ground by pla ci ng a
works1and
or equivalent under the engin e.
Remove the shock arm bolt, nut and washer !swing-
arm side).
REAR WHEEl/SUSPENSION
(SWINGARM SIDE)
15-37

Honda CRF450X 2005 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	96.0mm x 62.1mm
Compression Ratio	12.0:1
Valve Train	Unicam, four-valve
Transmission	Wide-ratio five-speed
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	110/100-18
Wheelbase	58.3 inches
Seat Height	37.6 inches
Fuel Capacity	1.9 gallons
Ignition	Solid-state CD with electronic advance
Final Drive	520 O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Induction	Keihin 40mm flat-slide carburetor
