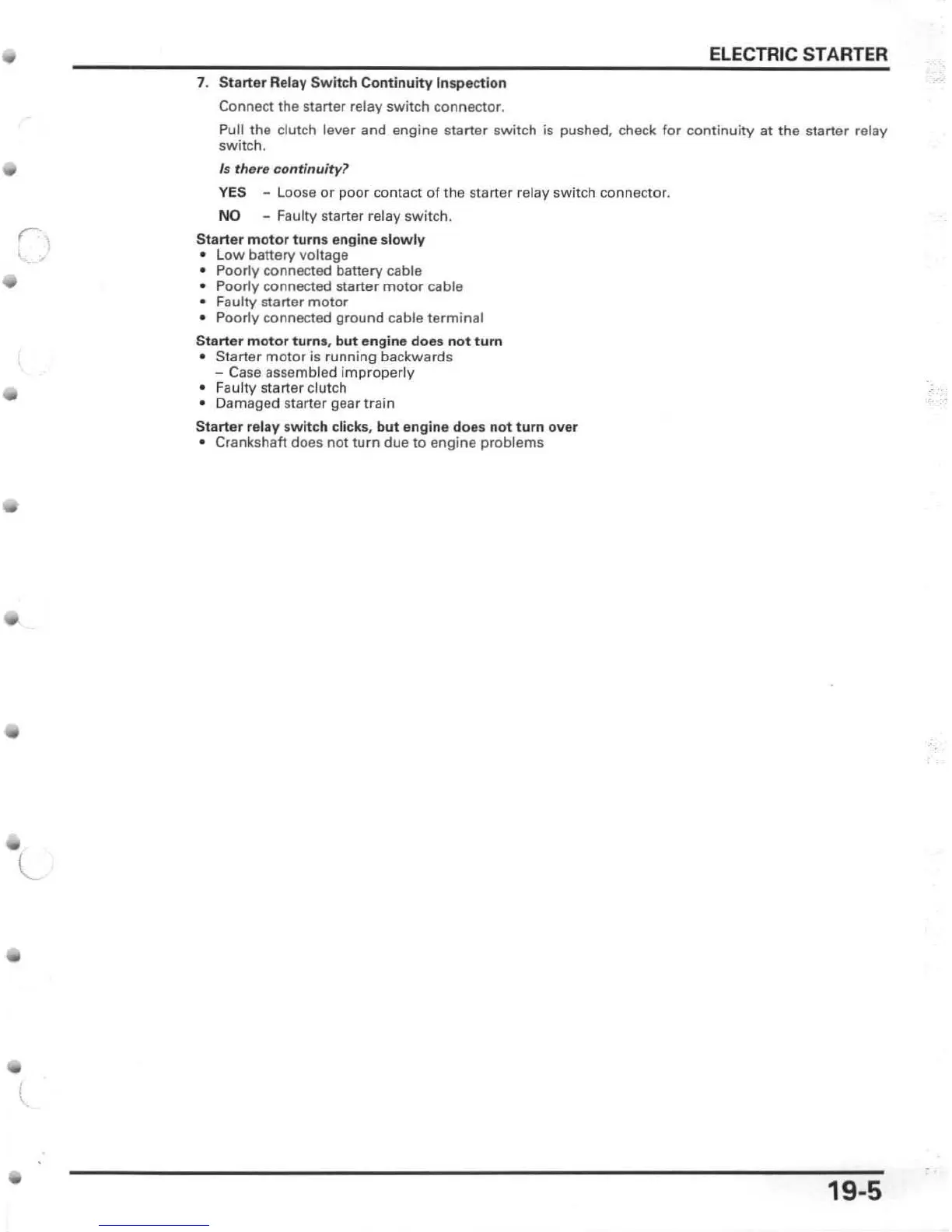

7. Starter Relay Switch Continuity In spection
Connect
the staner relay switch con nector .
ELECTRIC STARTER
Pull the clutch lever and engine staner switch is pushed, check for continuity at the starter relay
switch.
Is there continuity?
YES - Loose or poor contact of the starter relay switc h connector .
NO - Faulty starter relay switch.
Start er motor turn s engine slowly
• l ow battery voltage
• Poorly connected battery cable
• Poorly connected starter motor cable
• Faulty starter motor
• Poorly connected ground cable terminal
Starter motor turn s, but engine does not turn
• S ta rter motor is r unning backwards
- Case assembled improperly
• Faulty starte r clutch
• Damaged st arter gear tr ain
Starter relay switch clicks, but engine doe s not turn over
• Crankshaft does not turn due to engine problems
19-5

Honda CRF450X 2005 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	96.0mm x 62.1mm
Compression Ratio	12.0:1
Valve Train	Unicam, four-valve
Transmission	Wide-ratio five-speed
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	110/100-18
Wheelbase	58.3 inches
Seat Height	37.6 inches
Fuel Capacity	1.9 gallons
Ignition	Solid-state CD with electronic advance
Final Drive	520 O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Induction	Keihin 40mm flat-slide carburetor
