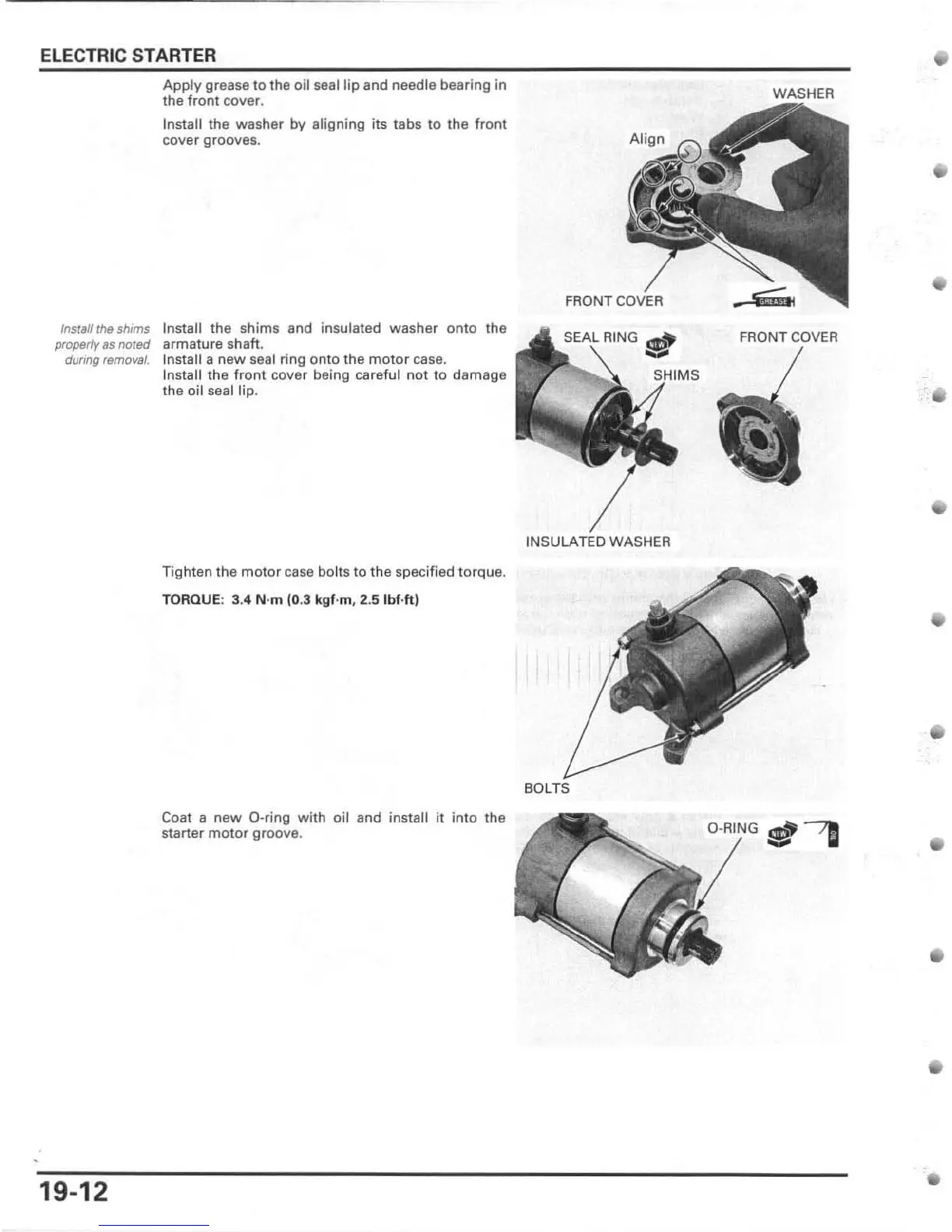

ELECTRIC STARTER
Apply grease to the oil seal lip and needle bearing in
the front cover.
Install the washer by aligning its tabs to the front
cover grooves .
Ins/till the shims Install the shims and insulated washer onto the
properly8S nOled armature shah .
dvrmQ remoV8l. Install a new seal ring onto the motor case.
19-12
Install the front cover being ca r ef ul not to damage
the oil seal lip.
Tighten the motor case bolts to the specified torque .
TORQU E: 3. 4 N'm 10 .3 kgf·m, 2.5 Ibf.ft)
Coat a new O'ring with oil and install it into the
starter motor groove,
SOL
RING ~
....
WASHER
WASHER
FRONT COl i ER
O-RING ",
•

Honda CRF450X 2005 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	96.0mm x 62.1mm
Compression Ratio	12.0:1
Valve Train	Unicam, four-valve
Transmission	Wide-ratio five-speed
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	110/100-18
Wheelbase	58.3 inches
Seat Height	37.6 inches
Fuel Capacity	1.9 gallons
Ignition	Solid-state CD with electronic advance
Final Drive	520 O-ring-sealed chain
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel
Induction	Keihin 40mm flat-slide carburetor
