Honda CRF450X 2008 Service Manual

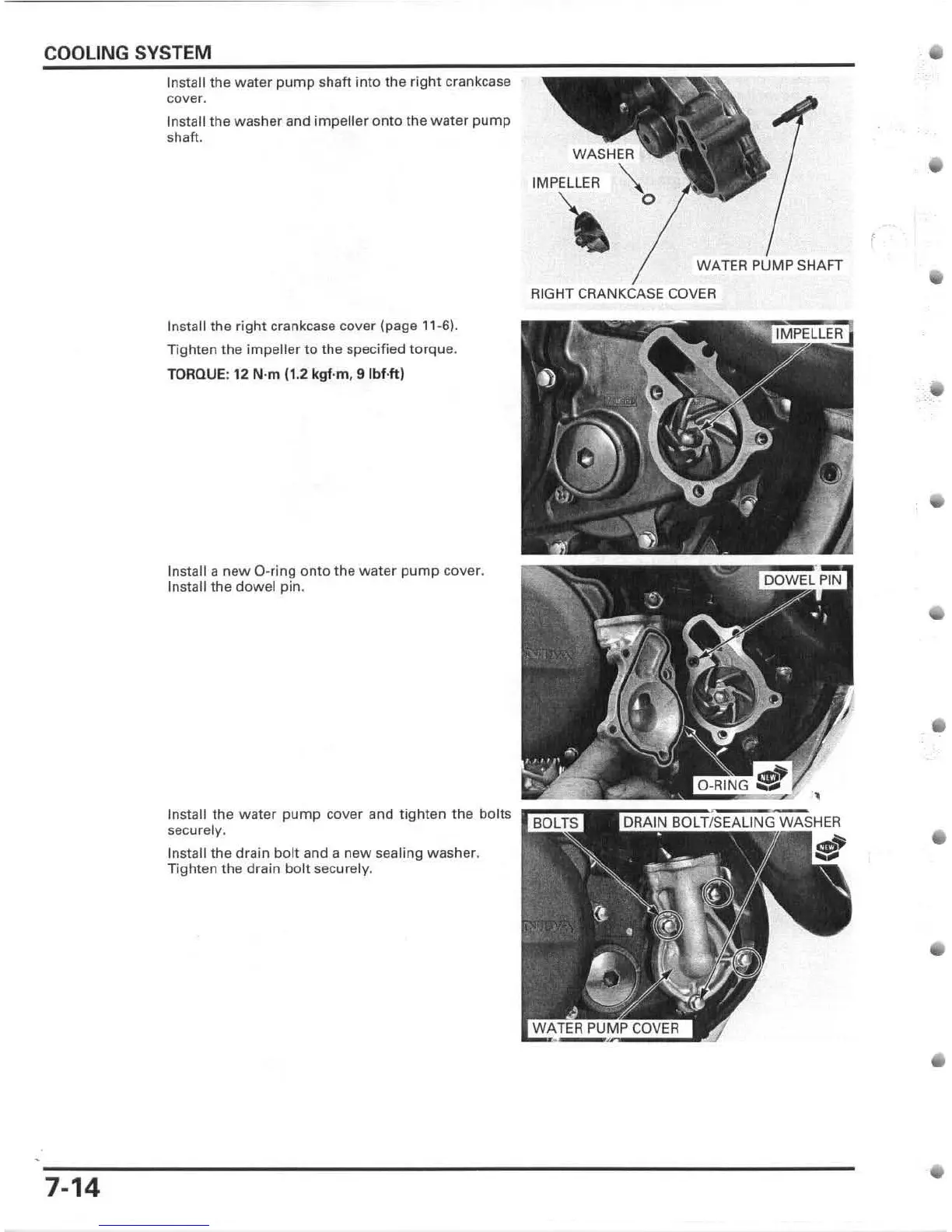

COOLING SYSTEM
Install the water pump shaft into the right crankcase
cover.
Install the washer and impeller onto the water pump
shaft.
Install the right crankcase cover (page 11 -6).
Tighten the impeller to th e specified torque.
TORQUE: 12 N'm 11.2 kgf ·m, 9Ibf.ft)
Install a new O-ring onto the water pump cover.
Install the dowel pin .
WASHER
IMPELLER "\.
~o
WATER PUMP SHAFT
RIG HT CRANKCASE COVER
Install the water pump cover and tighten the bolts :;~ :; ;;
securely.
Install the drain bolt and a new sealing washer .
Tighten
the drain bolt securely.
7-14
•
•
•

Honda CRF450X 2008 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore and Stroke	96.0mm x 62.1mm
Compression Ratio	12.0:1
Transmission	5-speed
Final Drive	#520 chain; 13T/51T
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	110/100-18
Wheelbase	58.3 inches
Seat Height	37.6 inches
Fuel Capacity	1.9 gallons
Induction	Keihin 40mm carburetor
Ignition	CD with electronic advance
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment; 12.4 inches travel
Trail	4.6 inches
