10-17
HRN216 CAMSHAFT/CRANKSHAFT/ PISTON/CYLINDER

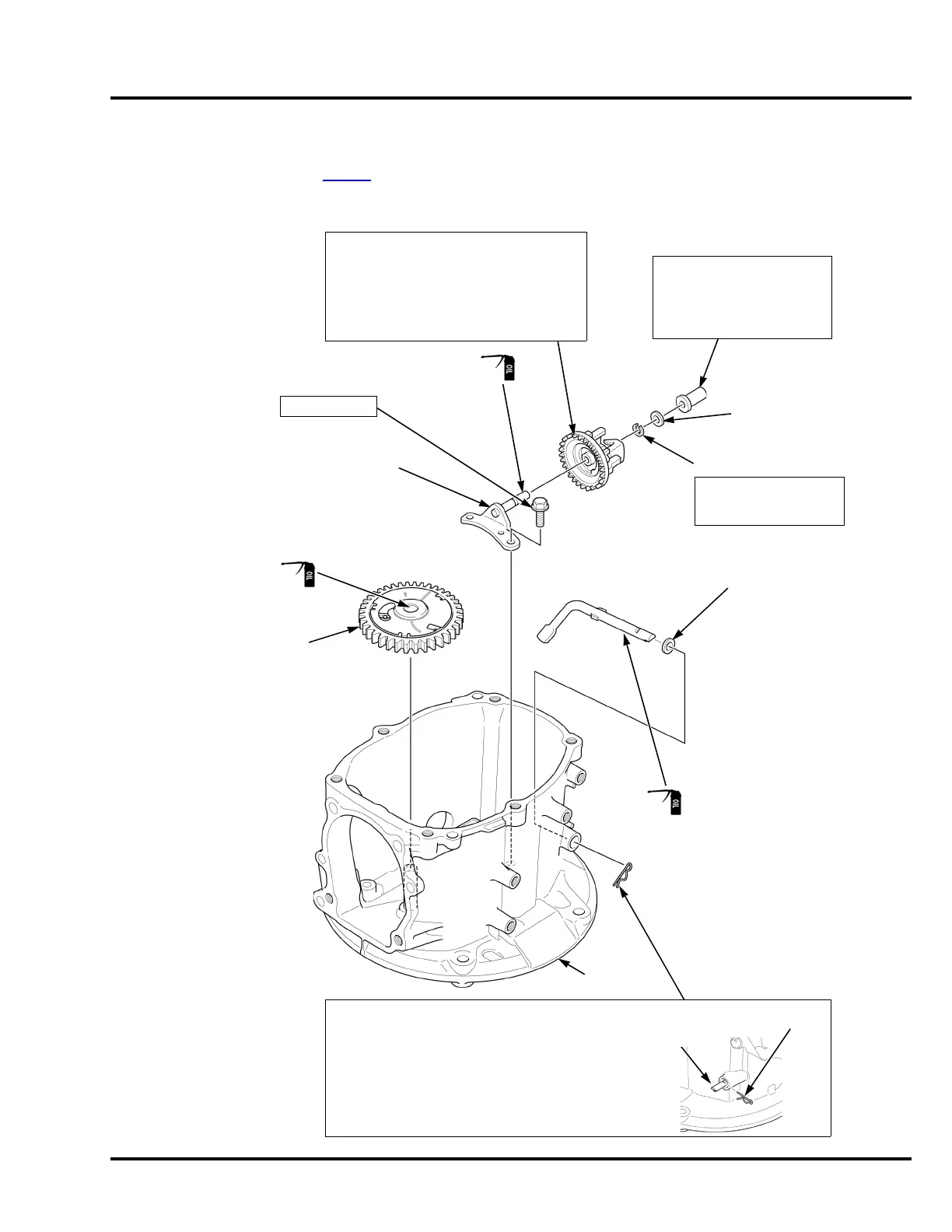

6. GOVERNOR REMOVAL/INSTALLATION
Remove the crankcase cover (P. 1 0 -2 ).
CRANKCASE
LOCK PIN
INSTALLATION:
Install the lock pin immediately after installing the
governor arm shaft, and move the shaft over against
the governor slider.
The lock pin must be installed with the straight side of
the pin against the groove in the shaft.
LOCK PIN
GOVERNOR
HOLDER SHAFT
Before installing, check for wear and
damage of the gear.
·
Check that the weights move freely.
·
Be sure to install the governor weight
before installing the crankshaft.
·
GOVERNOR WEIGHT HOLDER
THRUST
WASHER
GOVERNOR
HOLDER CLIP
ASSEMBLY:
Insert firmly into the
shaft groove.
12 N•m (9 ft-lb)
BOLT (6 x 14 mm)
WASHER
GOVERNOR ARM SHAFT
ASSEMBLY:
Slide the governor weights to
install the slider; then check
to be sure the slider moves
smoothly.
GOVERNOR SLIDER
CAMSHAFT
GOVERNOR
ARM SHAFT
