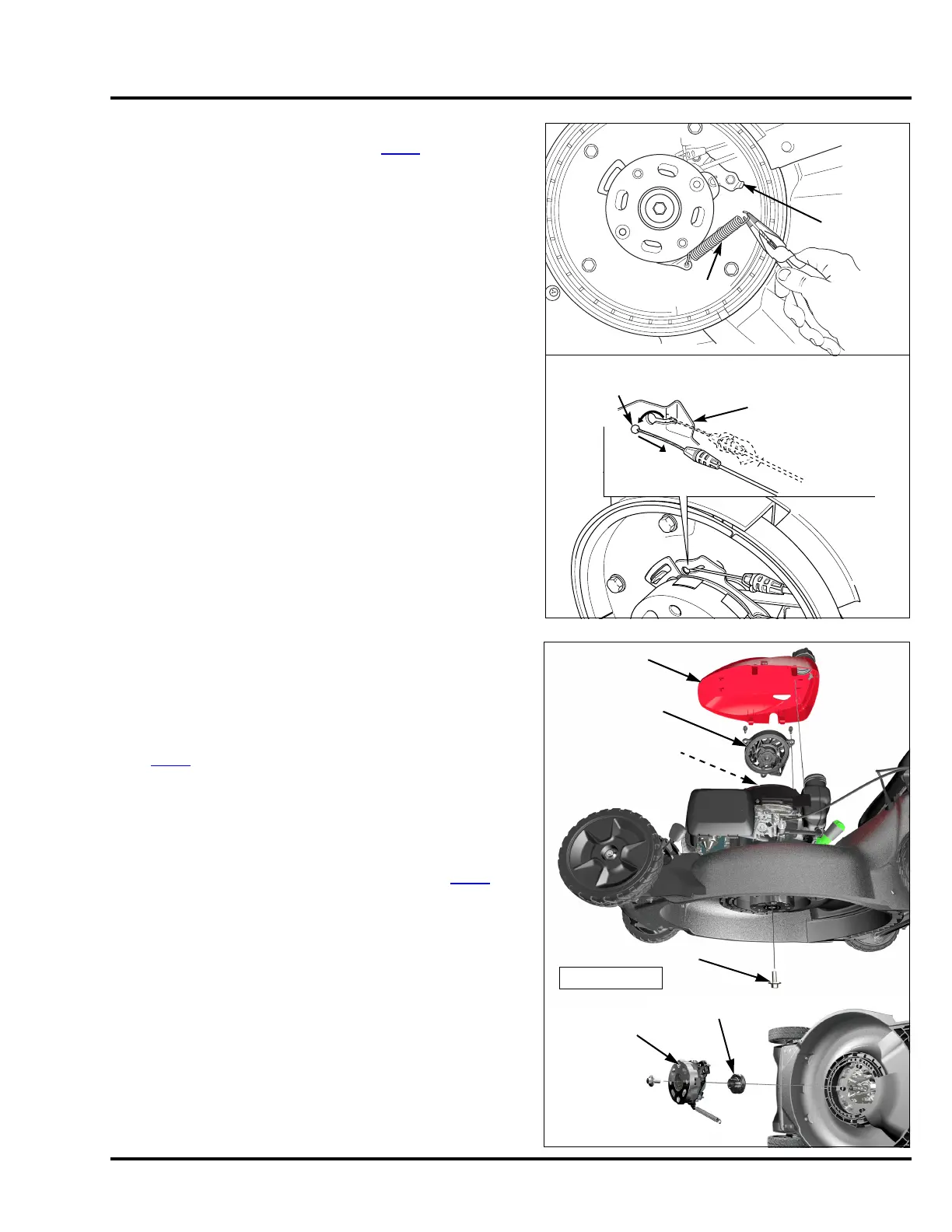

13-5
HRN216 TRANSMISSION/DRIVE BELT
5. Disconnect the Roto-Stop return spring and then remove
the lower end of Roto-Stop cable (P. 4 - 2
).
6. Remove the top cover and recoil. Hold the flywheel nut
with a 19 mm socket while removing the center
Roto-Stop special blade holder bolt.
If the flywheel nut come loose while removing the blade
holder bolt, it must be tightened to the proper torque
(P. 9 -8
).
7. Pull the Roto-Stop brake assembly off the crankshaft as
a complete assembly. Be sure not to lose the Woodruff
key.
8. Remove the drive belt from the drive pulley (P. 4 - 6
).
CLUTCH SPRING
UPPER
ANCHOR
POINT
ROTO-STOP INNER
CABLE
BALL PLATE
TOP COVER
RECOIL
FLYWHEEL NUT
BLADE HOLDER BOLT
54 N•m (40 ft-lb)
ROTO-STOP
BRAKE
ASSEMBLY
DRIVE PULLEY
