17 EN

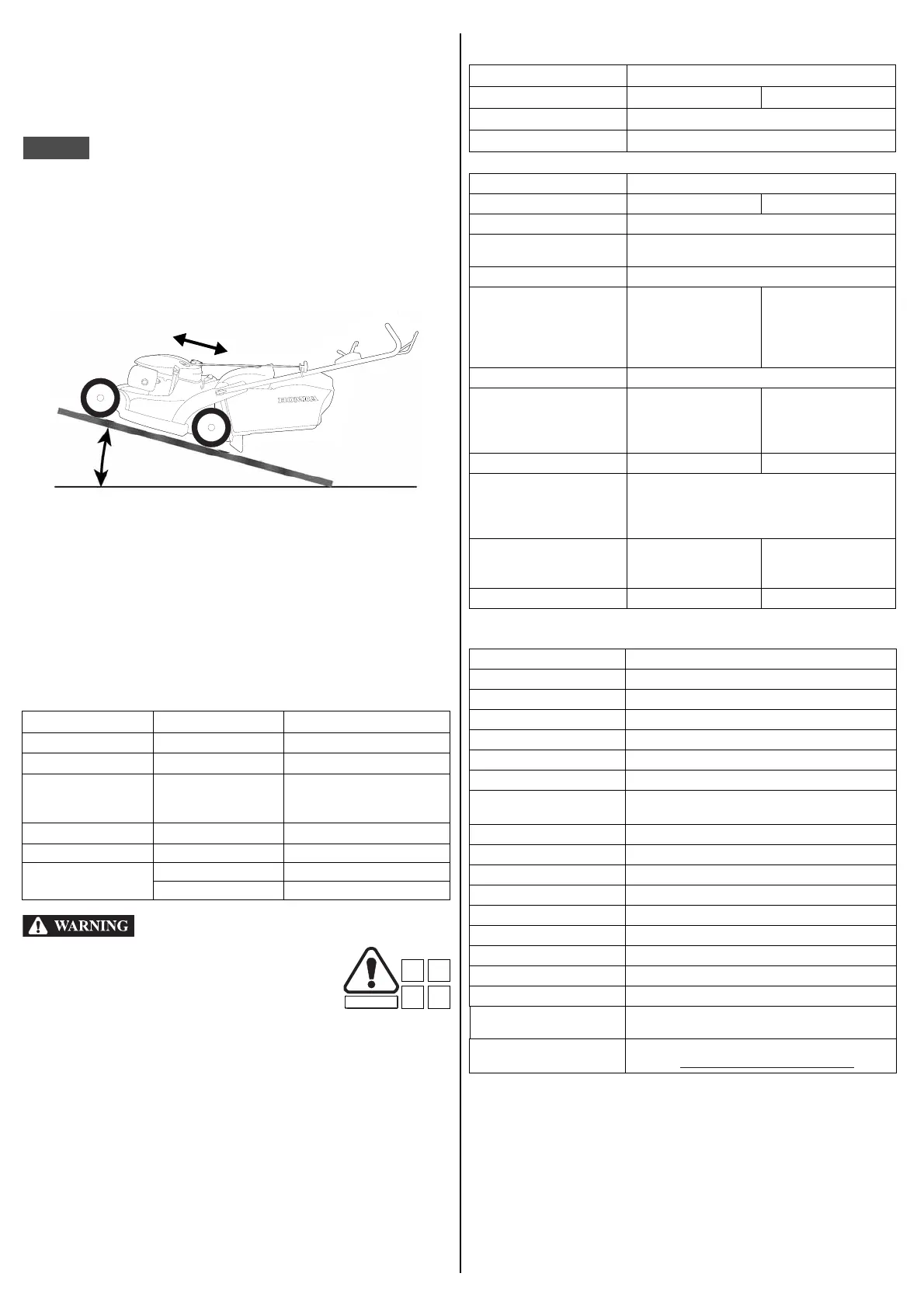

LOADING AND UNLOADING
Position the mower so all four wheels are on the bed of the transport
vehicle. Tie the mower down with rope or straps, and block the wheels.
Keep the tie-down rope or straps away from the controls, adjustment
levers, cables, and the carburetor.
To prevent losing control of or damaging the mower, do not use the drive
system when going up or down a loading ramp.
1. Turn the fuel valve to the OFF position.
2. Use a suitable loading ramp. Adjust the loading ramp so that it is
inclined at an angle of less than 15° (26%). If a loading ramp is not
available, two people should lift the mower on and off the transport
vehicle while keeping the mower level.
USEFUL INFORMATION
FIND AN AUTHORIZED DEALER
Please refer to page 19.
CURRENT PARTS, OPTIONAL ATTACHMENT AND
CONSUMABLES
To buy one of the original parts listed below, or any other part, please
contact an authorized Honda dealer.
For your safety, it is strictly prohibited to install
any other attachment than the ones listed above
and especially designed for your lawnmowers'
model and type.
TECHNICAL SPECIFICATIONS
Item Part Number Notes
Air Cleaner
17211-Z8B-901 Paper
Spark Plug
98079-55846 NGK (brand) BPR5ES
Cutting Means:
Lower
Upper
72511-VR8-M00
72531-VR8-M00
Always use an upper and lower
cutting means as a set.
Cutting-means Bolt (2)
90105-960-710 2 required, 10 x 20 mm
Bolt Washer (2) 90502-VG3-000 2 required
Wheel/tire 44710-VR8-N00 Front
42710-VR8-N00 Rear
MODEL HRN536C1
TYPE VKEA VYEA
DESCRIPTION CODE MCHF
FUNCTION Cutting of grass
GENERAL
Dimensions L x W x h
1 550 x 575 x 1 035 mm
Dry weight
36 kg 40 kg
Cutting width
530 mm
Cutting height settings
27 mm, 39 mm, 51mm,
64 mm, 76 mm, 88 mm, 100 mm
Grass catcher capacity
70 l
Sound pressure level at
operator's ears
(in accordance with EN
ISO5395-2:2013 + A1:2016 +
A2:2017)
84.8 dB(A) 85.4 dB(A)
Uncertainty
1 dB(A)
Measured sound power level
(in accordance with
directives 2000/14/EC,
2005/88/EC)
96.68 dB(A) 96.33 dB(A)
Uncertainty
0.78 dB(A) 0.64 dB(A)
Sound power level
guaranteed (in accordance
with directives 2000/14/EC,
2005/88/EC)
98 dB(A)
Vibration test (in accordance
with EN ISO5395-2:2013 +
A1:2016 + A2:2017) *
3.87 m/s
2
5.39 m/s
2
Uncertainty (EN12096)
0.45 m/s
2
0.63 m/s
2
ENGINE
Model
GCV170A
Type
4-stroke, single cylinder, vertical shaft
Displacement
166 cc
Bore and stroke
60 x 59 mm
Cooling
Forced air
Lubrication
Splash and spray
Compression ratio
8.0:1
Maximum operating engine
speed
2 950 min
-1
Net power **
3.6 kW
Nominal power
3.2 kW
Ignition system
Transistorized magneto
Spark plug
NGK: BPR5ES
Spark plug gap
0.7 ~ 0.8 mm
Air cleaner
Dry element type
Recommended fuel
Unleaded petrol E10
Fuel tank capacity
0.91 l
Recommended oil
SAE 5W-30, 10W-30, API SJ or later
Engine oil capacity
0.40 l
*** Refill amount: 0.35 ~ 0.40 l
Carbon dioxide (CO2)
emissions ****
Please refer to the CO2 values of the Honda engine
at www.honda-engines-eu.com/co2
