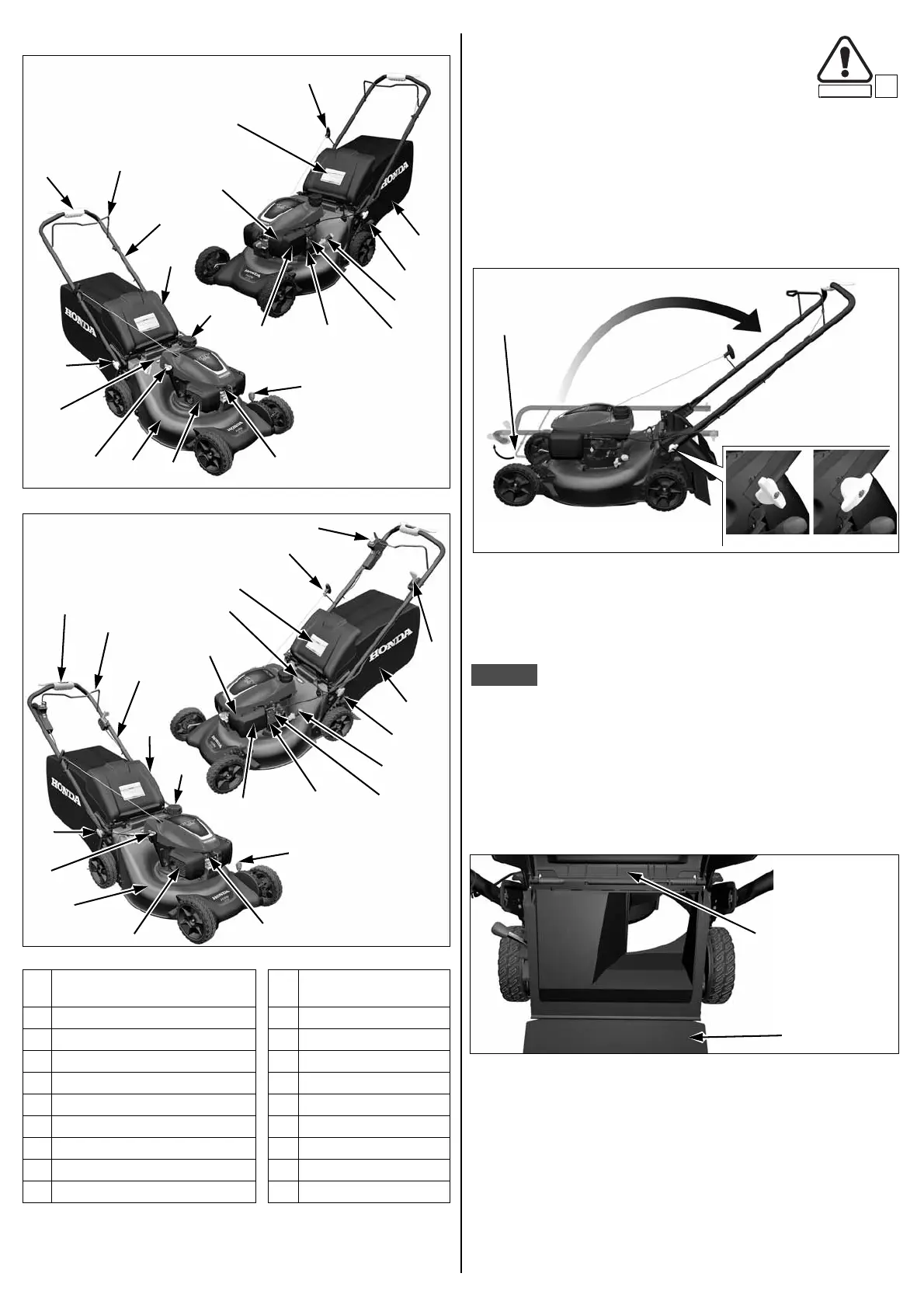

GENERAL DESCRIPTION PREPARATION AND CHECKS
BEFORE USE
UNPACKING
Remove all the cardboard from around the handlebar.
ASSEMBLY OF THE HANDLE
Turn the handlebar adjust knobs into the unlocked position, and then
carefully raise the handlebar into the mowing position . The VKEA type
requires the cutting-means control lever to be pulled against the
handlebar.
Align the adjust knobs with one of the two holes on each handle stay.
Setting the adjust knobs in the lowest holes raises the handlebar to its
highest position.
Turn the handlebar adjust knobs 90 degrees into the locked position,
making sure both sides are positioned at the same height.
Do not allow the control cables to become caught, pinched, or kinked while
unfolding the handlebar. The cables or engine control system may be
damaged.
CHECKING THR REAR SHIELD
During normal use the rear shield is subject to deterioration and wear.
Remove the grass catcher and raise the discharge guard [1] to check the
rear shield [2] for cracks or tears. If the rear shield is excessively worn, have
it replaced by your authorized Honda servicing dealer.
1
Cutting-means control lever (Starts
and stops the cutting means)
11 Smart Drive control
2 Handlebar 12 Handlebar adjust knob (2)
3 Fuel tank cap 13 Fuel valve
4 Cutting-means enclosure 14 Engine serial number
5 Muffler 15 Air cleaner
6Oil filler cap 16Carburetor
7 Clip Director knob 17 Spark plug cap
8 Cutting height adjustment lever (2) 18 Discharge guard
9 Grass catcher 19 Throttle Lever (VYEA)
10 Recoil starter 20 Roto-Stop Button (VYEA)
