Diagnostics
Part No.: 4417594_Rev11 Troubleshooting & Maintenance Guide
CIU 888 1 - 9
The Software screen is displayed, showing the version of the
CIU 888 display software (see FIGURE 1-6).

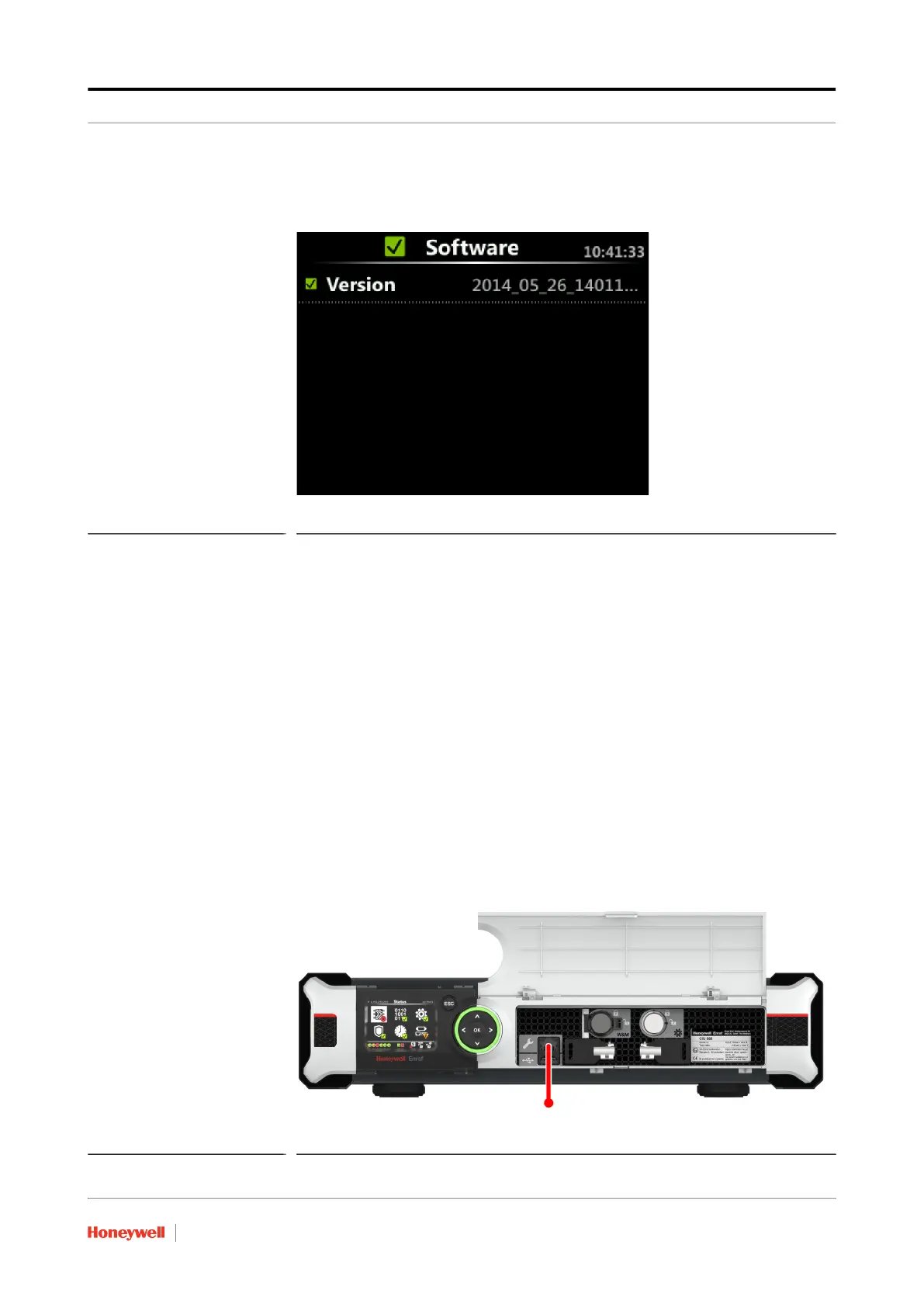

FIGURE 1-6 CIU 888 display: Software screen
1.3 CIU 888 Web interface
1.3.1 Diagnostics
The diagnostics function of the CIU 888 Web interface enables users to
monitor the CIU 888.
REMARK: To perform the following procedure, a PC or laptop with Internet Explorer 10 or
higher Web browser installed is needed. Furthermore, a Cat. 5 Ethernet cable
is required and it is recommended to have a PC screen resolution of 1280 x
1024 or higher.
Perform the following steps to view the data provided by the CIU 888:
1. Connect the PC or laptop to the Service port of the CIU 888 using
the Ethernet cable. The Service port is located at the front of the
CIU 888 (see FIGURE 1-7).
FIGURE 1-7 CIU 888: Service port
