Honeywell Portable Electrical Generator Service Manual www.honeywellgenerators.com 4-1
4: COMPONENTS
A—Power Control Center
Household Outlets
125VAC 20 Amp Duplex (NEMA 5-20R) outlets to connect
120V appliances to generator for power.
Generator Cord
125/250VAC 30 Amp Twist-Lock (NEMA L14-30R) outlet
can be used to:
Power 120V appliances using 4-in-1 power cord (not
included).
Power 240V appliances using appropriate (NEMA L14-
30P) power cord (not included).
Breakers
Protects circuits from damage caused by overload or
short-circuit by stopping the flow of electricity from the
generator to the appliance. Master circuit breaker controls
power to all outlets. If there is no power at outlets, see
TROUBLESHOOTING.
Hour Meter
Shows the total unit run time for maintenance purposes.
Ground Terminal
Connects generator to ground wire for grounding protec-
tion.
B—Battery Tray and Battery
Provides power for electric start feature.
C—Oil Fill Dipstick
Seals off engine oil fill hole and provides indicator for
engine oil level.
D—Oil Drain Screw
Allows engine oil to drain from generator.
E—Engine Control Switch
Control used to start and stop the engine ignition system.
START—Starts generator engine
RUN—Prepares engine to start (manual start);
Indicates engine is currently running (electric start)
STOP—Stops generator engine by inhibiting ignition
F—Fuel Shut-off Valve
Controls flow of fuel from fuel tank to carburetor.
G—Recoil Starter Grip Handle
Provides means to manually start engine, if needed.
H—Air Cleaner Assembly
Removes dust from engine intake air.
I— Choke Control
Controls choke valve. Choke control must be moved to
ON position when starting a cold engine.
J—Fuel Tank Cap
Provides a secure seal on fuel tank.
K—Fuel Gage
Indicates level of fuel currently in fuel tank.
L—Muffler Equipped with Spark Arrester
Provides outlet for engine exhaust. Prevents sparks and
other combustible materials from escaping generator.
M—Spark Plug Cap (Wire)
Delivers voltage to spark plug. When spark plug needs
service, cap must be removed.
N—Carbon Canister
Reduces hydrocarbon emissions.

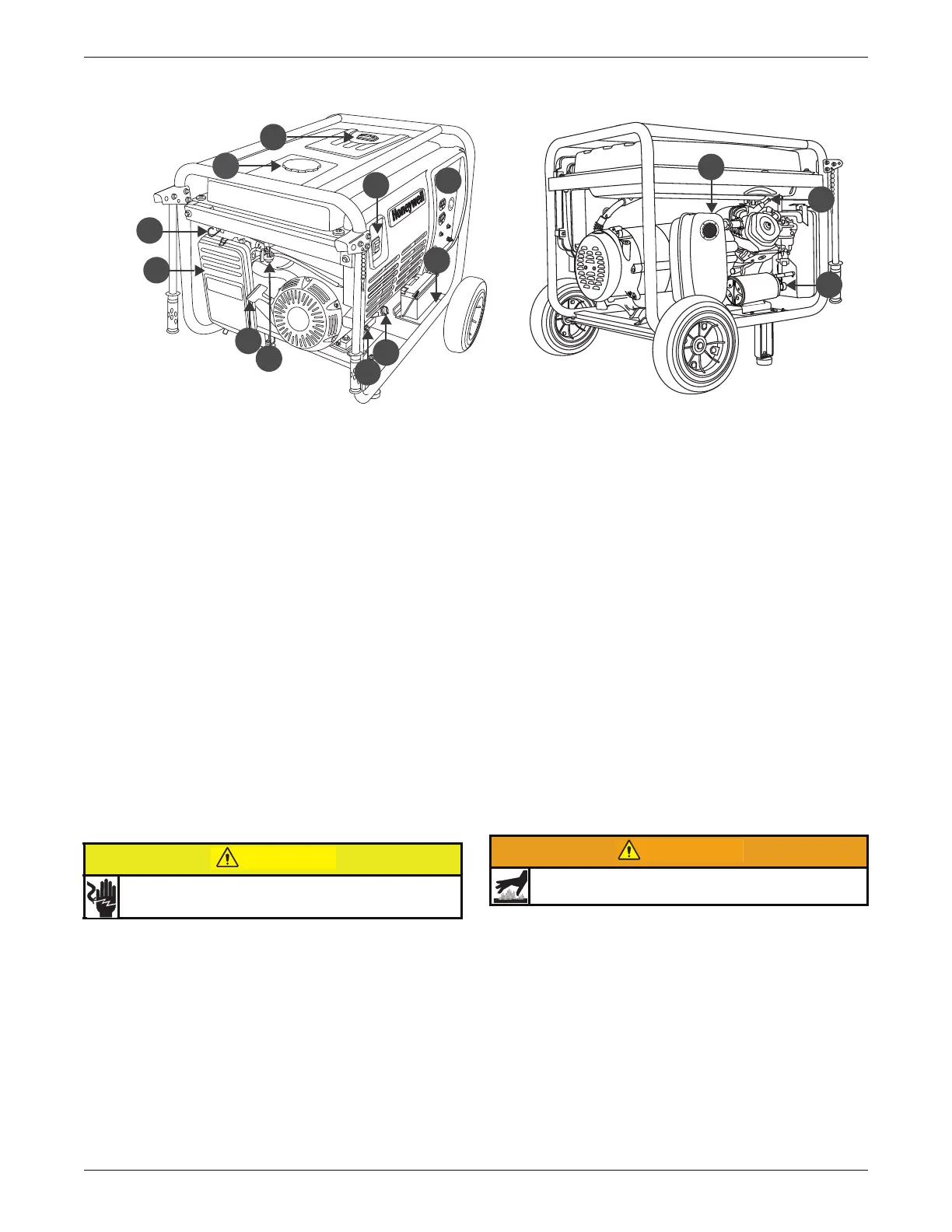

FIGURE 4-2: Honeywell Portable Electrical Generator Controls and Components
M
L
N
Generator must be grounded to prevent electrical
shock from faulty appliances.
CAUTION
Muffler reaches temperatures that can cause serious
burns if touched. NEVER touch hot surfaces.
WARNING
