ENGINE AND ALTERNATOR
9-4 www.honeywellgenerators.com Honeywell Portable Electrical Generator Service Manual

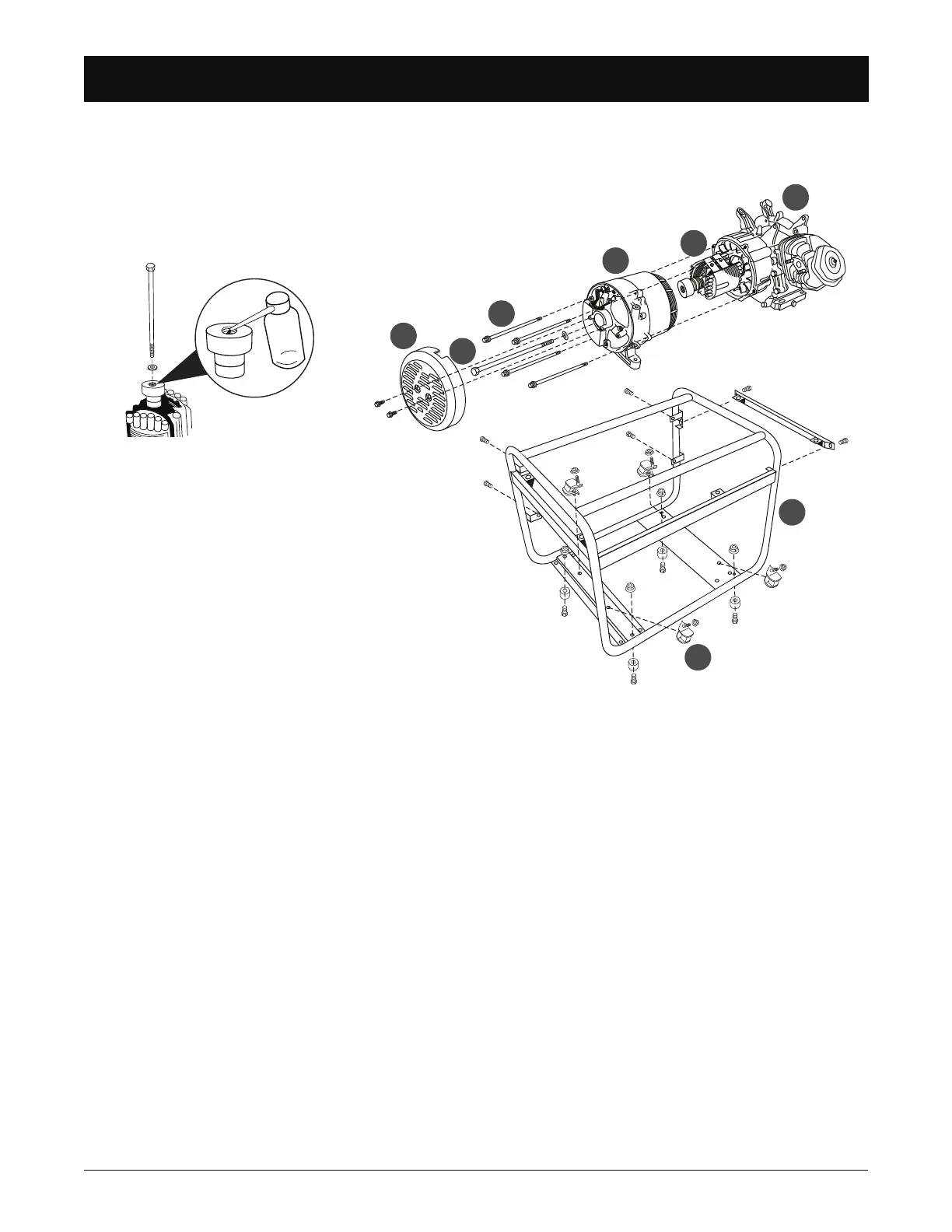

9.4 ENGINE AND ALTERNATOR
A—END COVER
4 N•m (3 lb. ft.)
B—ROTOR BOLT
Use oil before replacing the rotor bolt.
C—ALTERNATOR HOUSING BOLTS
48 N•m (35 lb. ft.)
D—ALTERNATOR REAR HOUSING
AND STATOR
See ALTERNATOR, page 9-5.
E—ROTOR
See ROTOR, page 9-4.
F—ENGINE
Contact an authorized Honda service
dealer for engine maintenance and
repairs.
G—VIBRATION ISOLATOR
Insert tabs into holes.
Be sure rubber is not chipped,
hardened, or worn.
Refer to illustration for proper
positioning.
H—FRAME
See WHEEL, LEG, & HANDLE
ASSEMBLY, page 9-9.
C
D
E
B
G
A
H
F
