FUEL TANK SYSTEM
9: SERVICE AND DISASSEMBLY
9.1 FUEL TANK SYSTEM
Fuel and its vapors are extremely flammable and explosive under certain conditions.
• Refuel the generator only outdoors, in a well-ventilated area.
• NEVER enclose the generator in any structure.
• Keep generator at least 6 feet (2 meters) away from buildings, other equipment, and combustible materials during oper-
ation.
• NEVER fill the fuel tank while the engine is running. Turn the generator OFF and allow it to cool before filling with fuel.
• NEVER smoke or allow flames or sparks near the generator or where gasoline is stored.
• NEVER overfill the fuel tank (there should be no fuel in the filler neck). After refueling, make sure the tank cap is closed
properly and securely.
• Be careful not to spill fuel when refueling. Spilled fuel or fuel vapor may ignite. If any fuel is spilled, be sure the area is
dry before starting the engine.
• Avoid repeated or prolonged contact with skin or breathing of vapor.

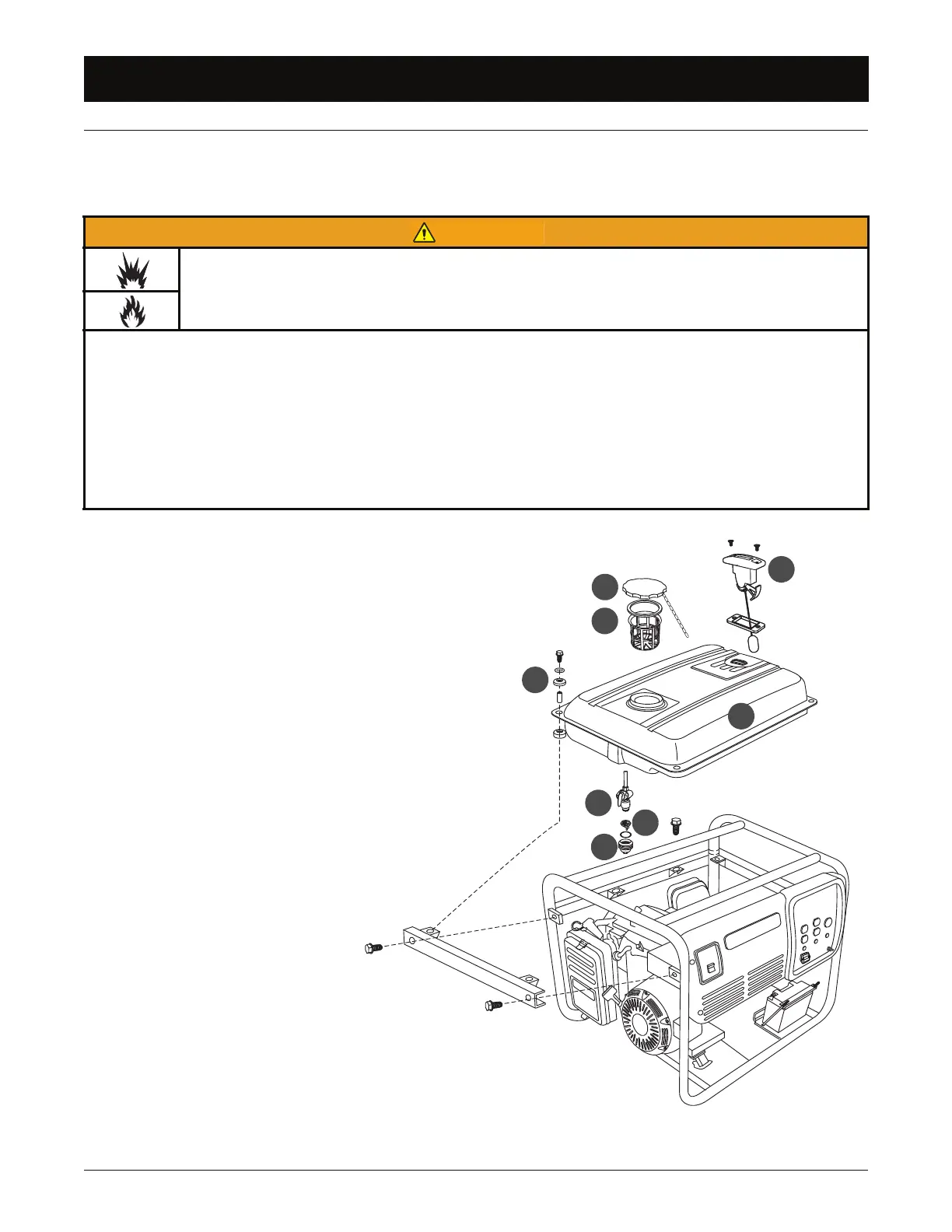

A—FUEL GAGE
After reassembly, check float for proper
operation.
B—FUEL CAP
Be sure air vent hole is clean and free
of obstruction. Blow with compressed
air if necessary.
C—FUEL STRAINER
Before reassembly, be sure fuel
strainer is clean and undamaged.
D—FUEL TANK MOUNTING
HARDWARE
10 N•m (7 lb. ft.)
E—FUEL TANK
Before reassembly, clean fuel tank to
remove any sediment and dry thor-
oughly.
F—FUEL SCREEN
See CLEANING FUEL SEDIMENT
CUP, page 7-3.
G—FUEL SHUT-OFF VALVE
Clear passages if clogged.
After reinstalling, check for fuel leak-
age.
Hex fitting - 24 N•m (17 lb. ft.)
H—FUEL SEDIMENT CUP
See CLEANING FUEL SEDIMENT
CUP, page 7-3.
