Honeywell HW7000EH Service Manual

Honeywell Portable Electrical Generator Service Manual www.honeywellgenerators.com 9-5
ALTERNATOR

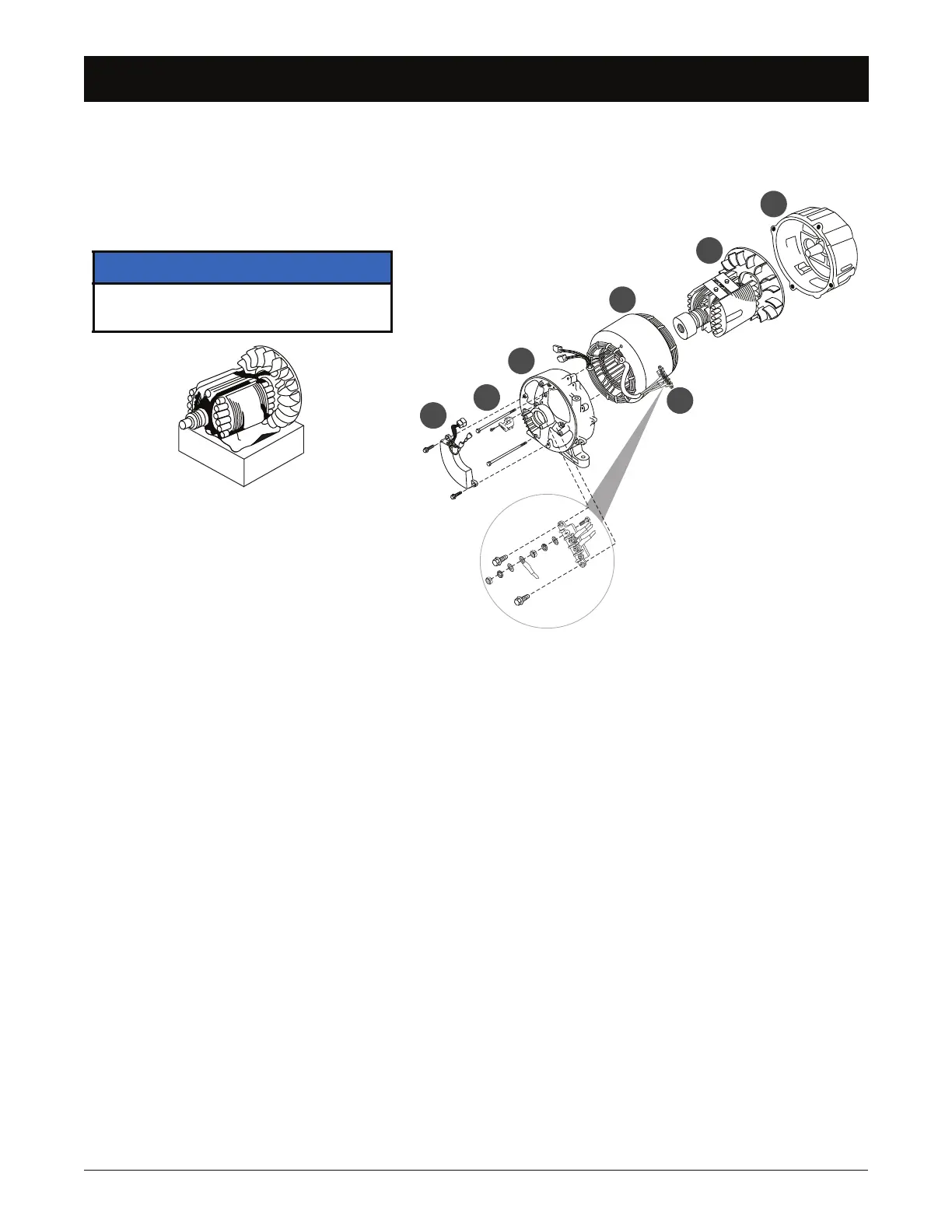

9.5 ALTERNATOR
A—ALTERNATOR ENGINE ADAPTER
B—ROTOR
Use appropriate tool to remove rotor.
C—STATOR
D—MAIN WINDING TERMINAL BLOCK
E—ALTERNATOR REAR HOUSING
F—BRUSH ASSEMBLY
Before removing rotor and stator, remove
brush assembly.
2 N•m (1.5 lb. ft.)
G—VOLTAGE REGULATOR
A
B
C
D
F
E
G
NOTICE
Rotor can become damaged if not properly sup-
ported. Place wooden block and rag under-
neath rotor for support.
