NFS2-3030 Operations Manual — P/N 52546:A 11/29/2005 43
Control Module Read Status
Lines 13 and 14 - When a module is monitoring an AMPS-24 or an ACPS-2406, information will
appear in these lines in the following format.
BATTERY VOLTAGE: 27.9 VOLTS
CHARGER CURRENT: 0.0 AMPS
Line 15 - The current time and date are displayed in this line.
Line 16 - Press
BACK to return to the previous screen.
3.5 Control Module
When a module address is entered into the Point Select Screen and the ACCEPT soft key is pressed,
the following screen will display if the module is a control module.

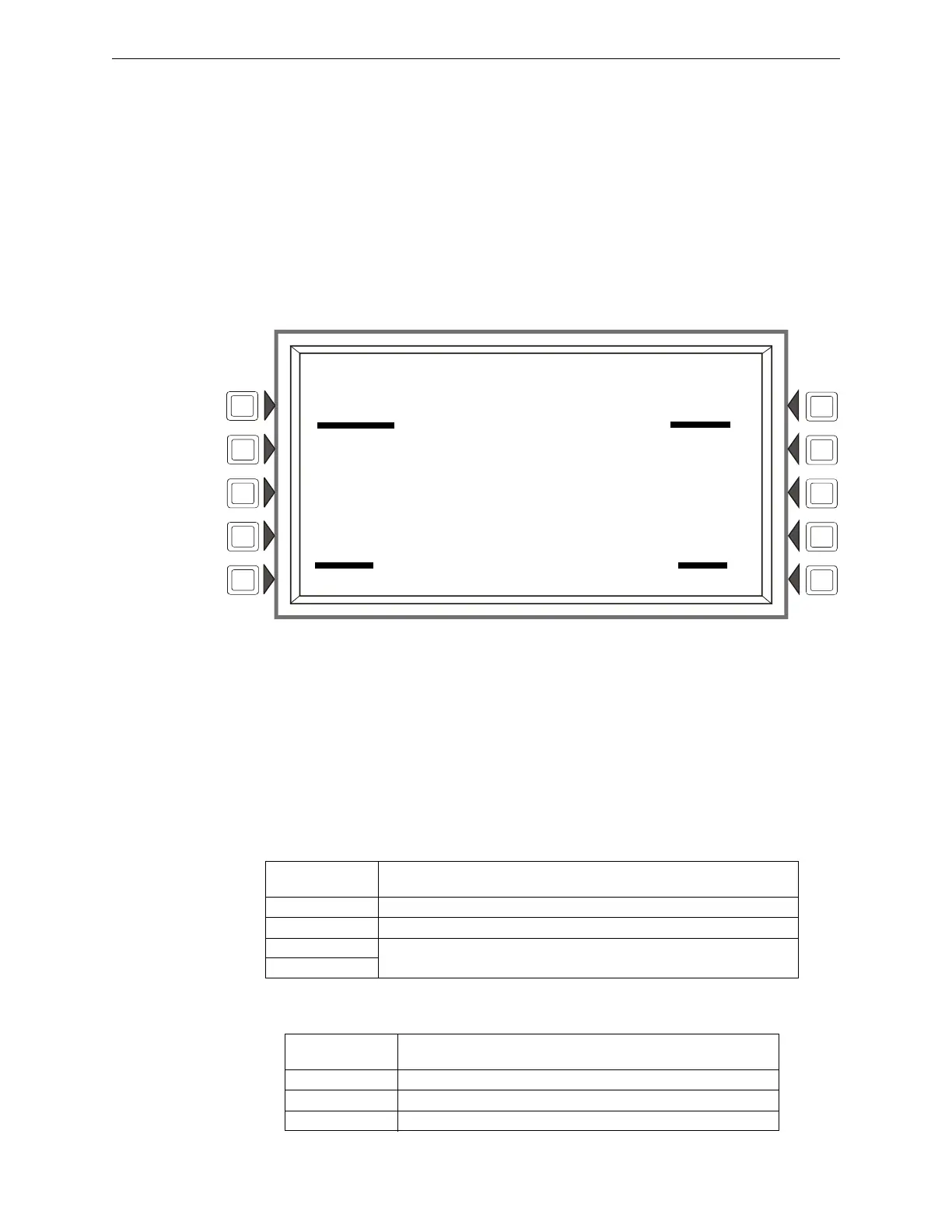

Figure 3.5 Control Module Screen - Read Status
Display
Lines 1 through 10 - Refer to the descriptions in Section 3.2, “Smoke Detector”, on page 40 with
the exception of line 6, which is described below.
Line 6 - This line displays statistics that display for control module output points; in the above
example they are:
AUTOMATIC OFF
The first field displays the point control. There are four designations that could appear in this
field
The second field displays the point status. There are three designations that could appear in this
field.
Point Control
Designation
Description
AUTOMATIC The point is being controlled automatically by the panel.
MANUAL The point has been forced into manual control state by an outside source.
DISABLED
A status change other than a change to MANUAL control has caused the
point to go off automatic control.
TROUBLE
Point Status
Designation
Description
OFF The point is currently not activated.
ON The point is currently activated.
OFF-HOOK The telephone point is currently off-hook.
LAKEVIEW GENERAL HOSPITAL
SYSTEM NORMAL
10:22:34A FRI SEP 23, 2005
READ ADDRESS: N124L03M052
AUTOMATIC OFF
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z005 CONTROL
Z005, Z027, Z066, , ,
, , , , ,
WALK TEST: YES
SWITCH INHIBIT: YES
SILENCEABLE: YES - RESOUND FIRE
10:22:34A FRI SEP 23, 2005
BACK
