Honeywell PC42T User Manual

Chapter 1 — About the Printer
18 PC42t Desktop Printer User Guide
Set the Command Language with the Print Button
1 Make sure the printer has media and ribbon (if necessary) installed.
2 Turn off the printer.
3 Press and hold the Print button.
4 Turn the printer on. The green LED turns on and blinks.
The printer calibrates the media, prints out a configuration label, and
then it prints labels with the different command languages one at a
time at two second intervals.
5 When the label prints out with the command language you want to
use, release the Print button.
Set the Command Language from the Printer Web
Page
To set the command language from the printer web page, you need to
turn on the printer and connect to your Ethernet network.
1 Make sure that the printer has media and ribbon (if necessary)
installed.
2 On your PC, open a browser.
3 In the Location or Address bar, type the printer IP address and

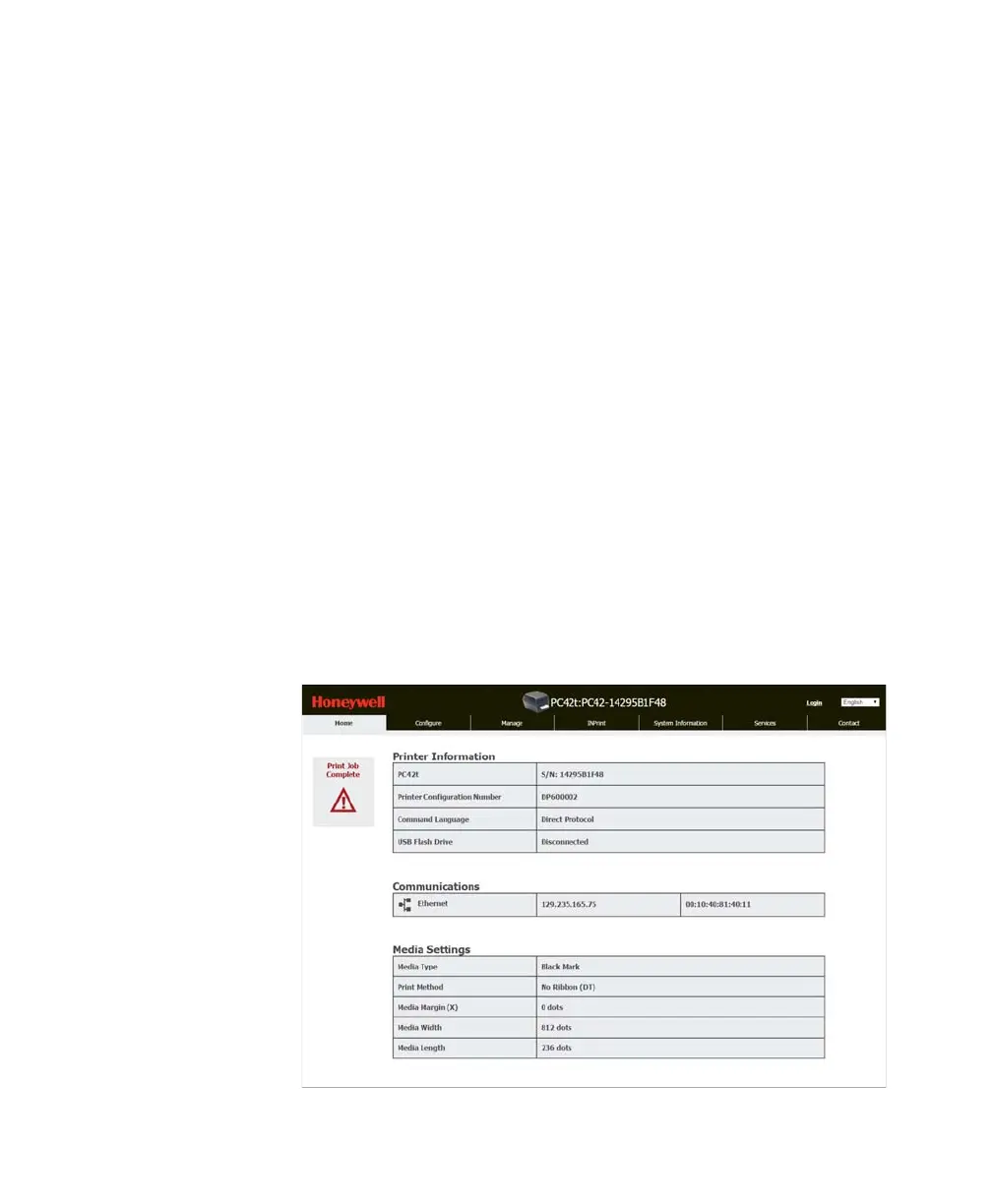

press Enter. The printer web page appears.

Honeywell PC42T Specifications

General

Color	No
Print technology	Thermal transfer
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104.1 mm
Certification	UL, cUL, cULus, CE, FCC, D Mark CCC, KCC, RCM
Internal memory	64 MB
Built-in barcodes	1D, 2D, Code 49, Data Matrix, EAN13, EAN8, MaxiCode, QR Code
Display	LED
Product color	Black
Ethernet LAN	Yes
Optional connectivity	Ethernet, Parallel, Serial (RS-232)
USB 2.0 ports quantity	1
Connectivity technology	Wired
Ribbon width	109.2 mm
Core diameter	25.4 mm
Ribbon length	300 m
Maximum label width	110 mm
Maximum media length	9.6 mm
Maximum roll diameter	127 mm
Supported paper width	25.4 - 110 mm
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output current	2.5 A
AC adapter output voltage	24 V
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	297 mm
Width	226 mm
Height	177 mm
Weight	2500 g
