Appendix C — Print Labels with INPrint
58 PC42t Desktop Printer User Guide
About the INPrint Page
The INPrint page features sample web forms you can use to quickly and
easily print single labels if you are using the Direct Protocol language on
your printer. You select a web form from the list and type information in
the fields for that label.
The printer firmware includes several predefined label formats. You can
also copy your own label formats to the printer and print them from this
page.

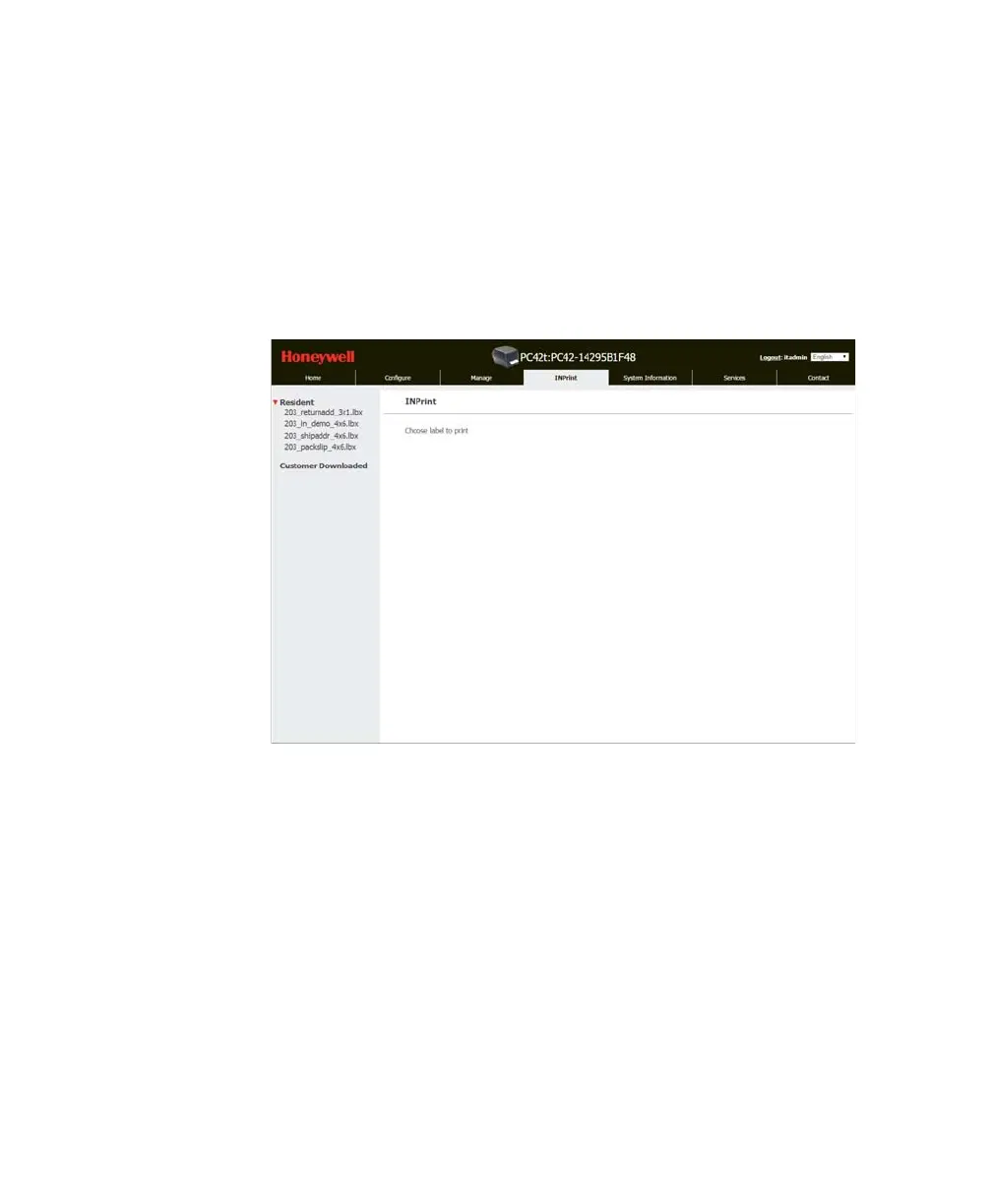

PC42t INPrint Web Page
Print INPrint Labels
If the printer is connected to an Ethernet network, you can print labels by
entering information in a web form. You access web forms through the
printer web page.
1 On your desktop PC, start a browser.
2 In the address bar, type the IP address of your printer and press
Enter. The printer web page appears.
3 Click Login. The Login page appears.

Honeywell PC42T Specifications

General

Color	No
Print technology	Thermal transfer
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104.1 mm
Certification	UL, cUL, cULus, CE, FCC, D Mark CCC, KCC, RCM
Internal memory	64 MB
Built-in barcodes	1D, 2D, Code 49, Data Matrix, EAN13, EAN8, MaxiCode, QR Code
Display	LED
Product color	Black
Ethernet LAN	Yes
Optional connectivity	Ethernet, Parallel, Serial (RS-232)
USB 2.0 ports quantity	1
Connectivity technology	Wired
Ribbon width	109.2 mm
Core diameter	25.4 mm
Ribbon length	300 m
Maximum label width	110 mm
Maximum media length	9.6 mm
Maximum roll diameter	127 mm
Supported paper width	25.4 - 110 mm
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output current	2.5 A
AC adapter output voltage	24 V
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	297 mm
Width	226 mm
Height	177 mm
Weight	2500 g
