Honeywell ScanPal EDA51 User Manual

P50

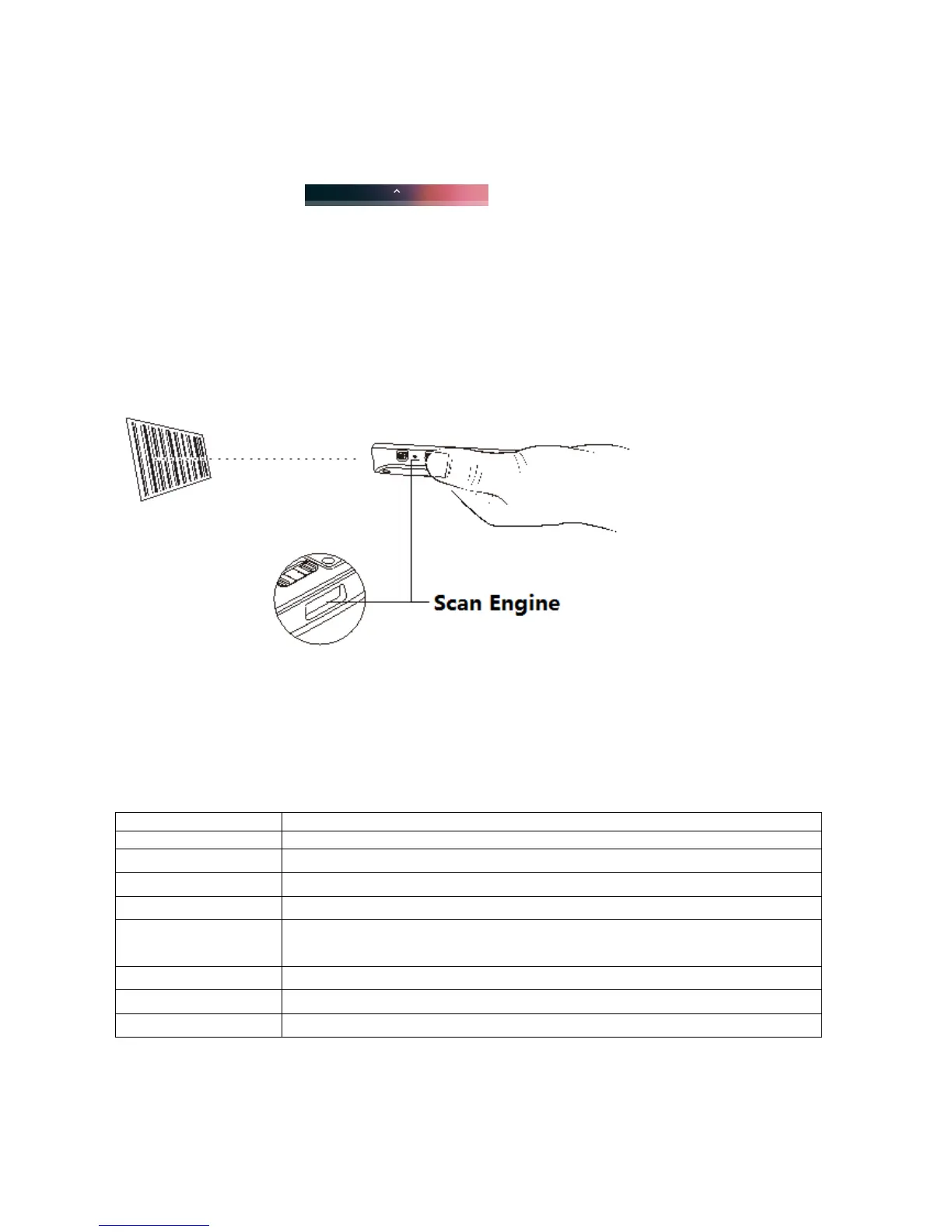

Scanning barcodes
Scan engine will emit scanning beams for accurate barcode aiming. It will also support a full range of 360°
scanning, which will make barcode scanning more convenient.
1. Tap or pull upward >Demos>ScanDemo.
2. Align the scanning window with the barcode and stably place the terminal a few inches away from the
barcode.
3. Press one of the scan keys or tap Scan on the interface. Make sure the entire barcode is within the
scanning beam range.
4. When the scanning is successfully completed, you will hear a "beep" sound, and the Good Read LED
will open immediately.
Note: Before scanning a barcode, you need to enable the desired barcode Symbology in the settings.
Scan Engine
EDA51-X equips Honeywell N6603 scan engine.
The N6603 series integrates Honeywell’s Adaptus 6.0 technology for unparalleled 1D and 2D scanning
performance.
Items
Performance
Sensor
Proprietary CMOS sensor with global shutter and 844 x 640 pixel resolution
Illumination
White LED (exempt risk group)
Aiming
650 nm high-visibility red laser (class 2 laser safety)
Typical frame rate
60 frames per second (max.)
Motion Tolerance
Up to 584 cm ( 230˝ ) per second in total darkness with 100% UPC at 10 cm (
4˝ ) distance
Field of View
Horizontal Field Angle: 42.4° /Vertical Field Angle: 33
Scan Angles
Tilt: 360°, Pitch: ± 45, Skew: ± 60°
Symbol Contrast
20% minimum reflectance
