MAN0530 Issue 10 - 11/09 Searchline Excel
2104M0506
Notes:
1. Only Transmitters have turbo mode heating which can be disabled. The Receiver uses
proportional heating, which cannot be disabled.
2. Even with turbo mode heating disabled the Transmitter window still receives standard
levels of heating.
3. Do not reverse the Receiver power supply connections. This will not damage the unit,
but the unit will not function.
3.5 UNPACKING
(1) Carefully unpack the equipment, observing any instructions that may be printed on or
contained within the packaging.
(2) Checkthecontentsfordamageandagainstthepackingnotefordeciencies.
In the event of damage or loss in transit, notify the carrier and Honeywell Analytics or
your local agent immediately.
The gas detector consists of the following items:
Where alternative component sizes are given the size depends on the version of unit,
i.e.mid/long range version or short range version.

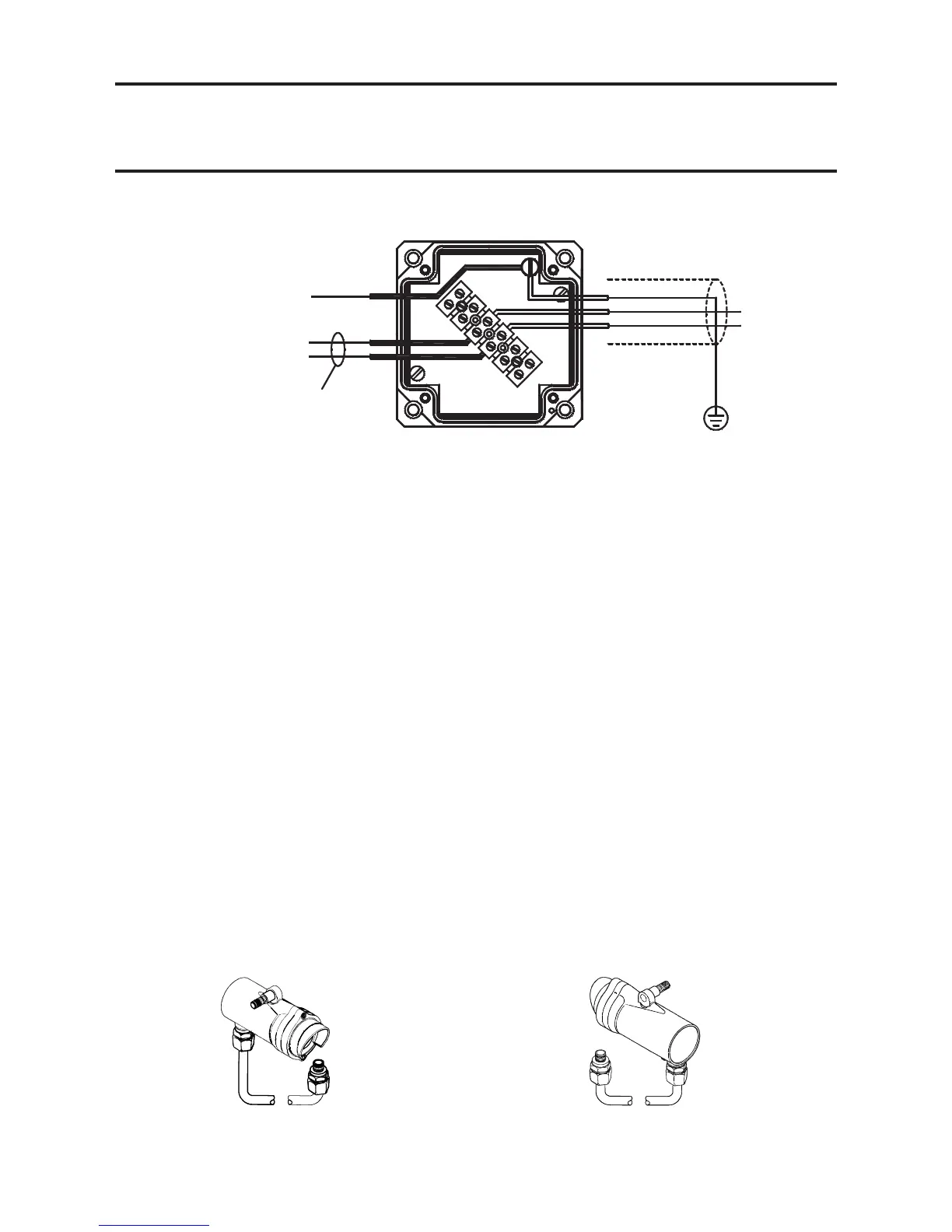

1 x Receiver Unit 1 x Transmitter Unit
3. INSTALLATION AND OPERATION
The earth bonding arrangement must ensure that the maximum peak voltage between the
unitcaseearthandanyeldcableconductorislessthan350V.Voltagesinexcessofthis
cancausepermanentdamagetotheunit'sRFIprotectionlters.
25
CONTROL
CABINET
CONNECTIONS
0V
+24V
EARTH
CABLE SCREEN
INSTRUMENT (CLEAN)
EARTH STAR-POINT
GREEN/YELLOW (EARTH)
Same potential as Excel body and conduit
BLACK (0V)
RED (+24V)
EXCEL
TRANSMITTER
WIRING
JUNCTION BOX
Shows wires reversed to
disable turbo heating
EXCEL
TRANSMITTER
WIRING
GREEN/YELLOW (EARTH)
Same potential as Excel body and conduit
BLACK (0V)
RED (+24V)
CONTROL
CABINET
CONNECTIONS
CABLE SCREEN
EARTH
+24V
0V
INSTRUMENT (CLEAN)
EARTH STAR-POINT
Honeywell Analytics Junction Box
part number 00780-A-0100
