7.2 ATEX & IECEx

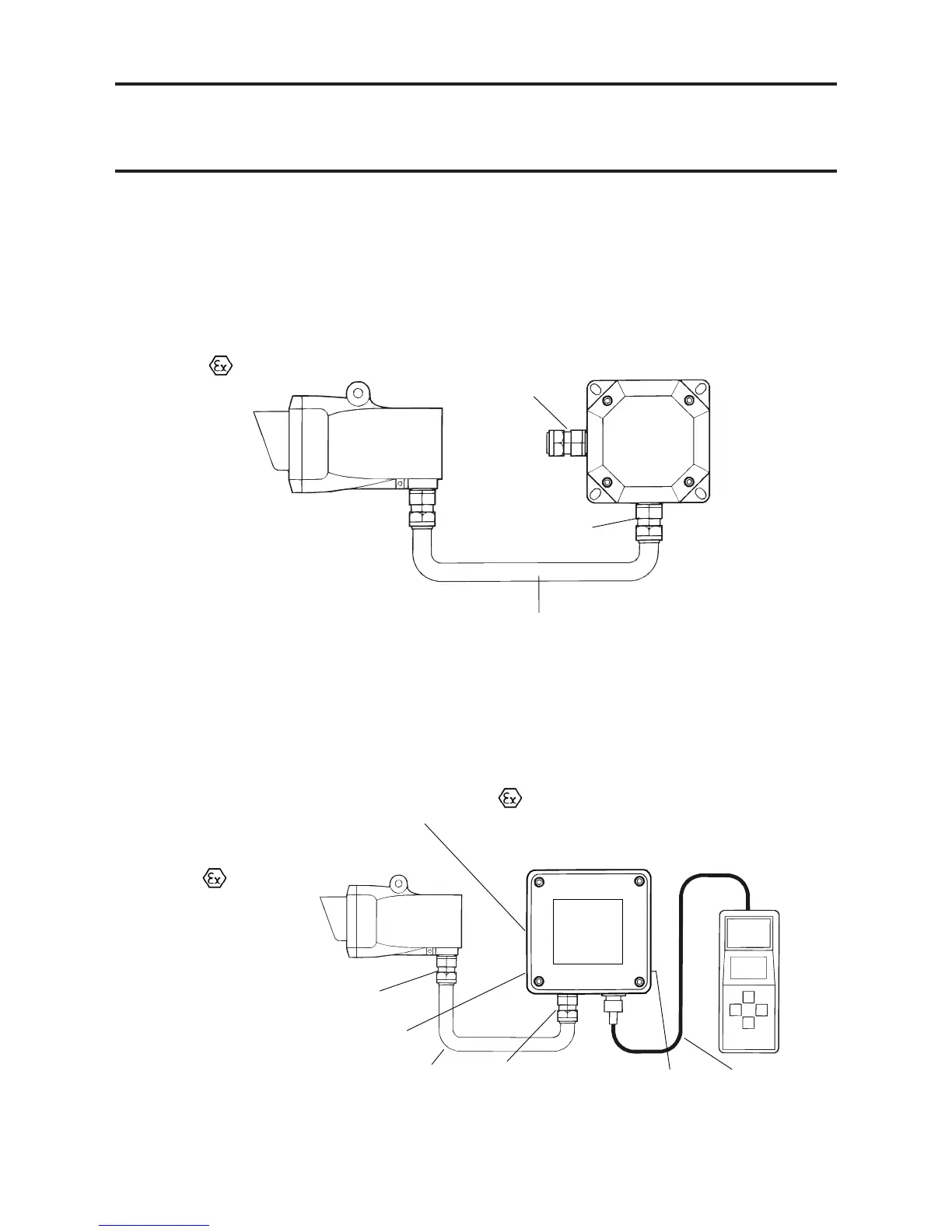

7.2.1 Transmitter Details
Open-Path
StandardJunction Box
Ex e, Ex d, IECEx d
& IECEx d Certified.
M25 gland
Ex e, Ex d, IECEx d
& IECEx d Certified.
(customer supply)
Transmitter
Ex dIIC T5 (-40to+65 °C)
Ex dIIC T6 (-40to+40 °C)
II 2G
Vmax.=32V
M20gland
Ex e, Ex d, IECEx d
& IECEx d Certified.
Flexible Conduit 900mmlong
Ex e, Ex d, IECEx d & IECEx d Certified.
(seetable of Conduit Technical Characteristics)
Note: Later units
will be
1
/
2
" NPT
7.2.2 Receiver Details
Open-Path
7. CERTIFICATION
Receiver
Ex d IIC T5 (-40to+65
°C)
Ex d IIC T6 (-40to+40
°
C)
II 2G
Vmax.=32V
1/2" NPT gland
Flexible Conduit 900mm long
(seetable of Conduit
Technical Characteristics)
M20gland Ex e
(customer supply)
Certified M25
blank fitted
M20gland
Ex e, Ex d, IECEx d
& IECEx d Certified.
CertifiedM20
blankfitted
IS Cable
Length15m max.
DVC100 Termination Unit
EExiaemIIC
T6 (-40to+65 C)
o
Vmax.=50V,
Imax.=5A
Cable glands M20/M25
SHC1 Handheld
Interrogator
Ex ia IIC
T4 (-40to+40 C)
o
Note:
Later units
1
/
2
" NPT
DVC100(M) MK2 Termination Unit
II 2G Ex ia e m IIC
T5 (-40 to +65°C)
V max. = 32V
Cable glands M20/M25
