HP 34904A 4x8 Matrix Switch
This module contains 32 two-wire crosspoints organized in a 4-row by
8-column configuration. You can connect any combination of inputs and
outputs at the same time. This module does not connect to the internal
DMM. Each crosspoint relay has its own unique channel label

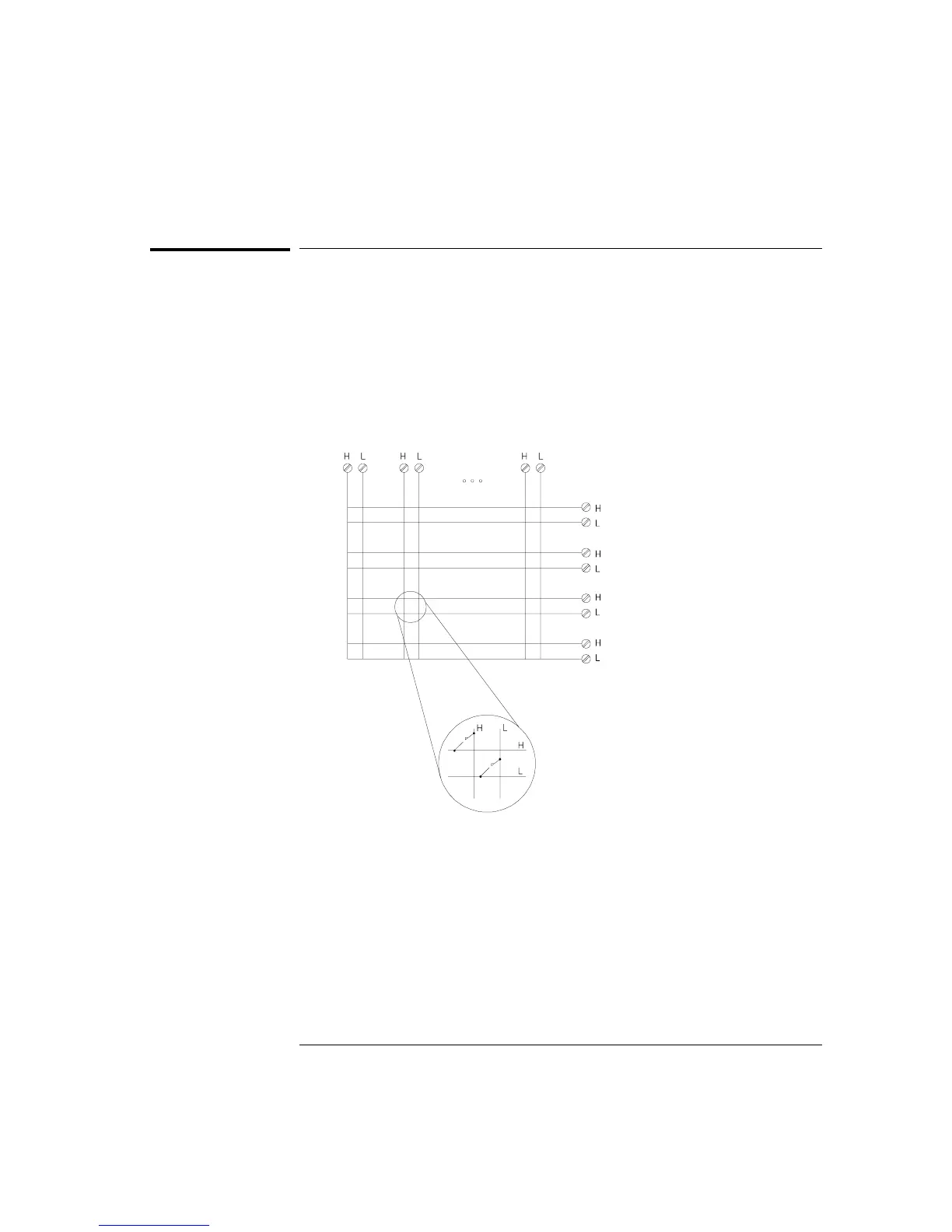

representing the row and column. For example, channel 32 represents
the crosspoint connection between row 3 and column 2 as shown below.
NOTES:
• You can close multiple channels at the same time on this module.
Row 1
Row 2
Row 3
Row 4
Col 8Col 2Col 1
Channel 32
(Row 3, Column 2)
Chapter 4 Features and Functions
HP 34904A 4x8 Matrix Switch
170
