4-9
Replacing Components
Replacing the J9154x Module Compact Flash Card
Replacing Components
Replacing the J9154x Module Compact
Flash Card
The Compact Flash card is the primary non-volatile storage medium located
on the Services Module that contains both the boot software and configuration
files. When a Flash card fails the ”CF Status” LED on the Services Module will
blink simultaneously with the switch Fault LED.
Installing a Compact Flash Card
To install (or replace) a Compact Flash card:
1. Using either a flat-bladed or Torx T-10 screwdriver loosen the retaining
screws securing the module. (You cannot access the Compact Flash
when the module is installed.)
2. Using the extractor handles, pull the module out of the slot and turn it over.

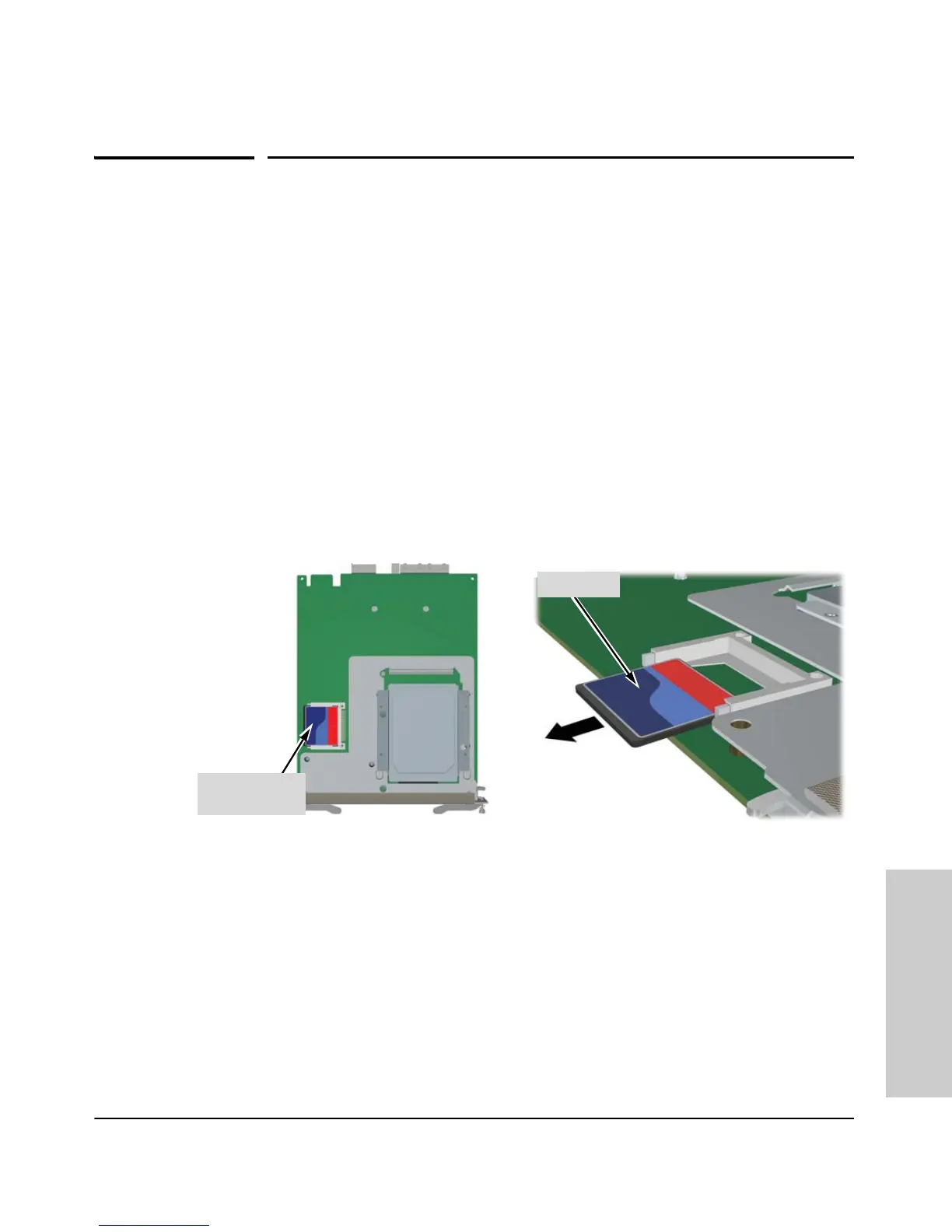

Figure 4-6. Services zl Module Flash Card Removal
3. Slide out the old flash card by applying slight pressure to the top of the
flash card and sliding it to the right.
4. Position the new flash card properly and slide in the new flash card being
careful not to bend any pins.
5. Reinstall the module into the switch.
6. Use an equal amount of pressure and push both extractor handles closed
to completely seat the module.
7. Tighten the retaining screws.
Slide out
Compact Flash
Memory disk
