18 Chapter1

Remove/Replace System Components

Removing/Replacing System Components

Replacing Memory DIMMs

This section explains how to replace DIMM cards in your workstation. For the proper

sequencing of DIMM cards in the system board’s memory slots, see Figure 1-6.

Here is the procedure for replacing DIMM cards in your workstation:

1. Remove the current DIMM(s) if you have not already done this. Otherwise, skip this

step. To remove the current DIMM(s), follow the procedure in the section “Removing

Memory DIMMs” found in this chapter.

2. Determine the appropriate memory slot(s) for your DIMM card(s). See Figure 1-6. You

can mix 256MB, 512MB and 1GB memory cards in the memory slots, but you must

install them using the memory sequence shown in Figure 1-6.

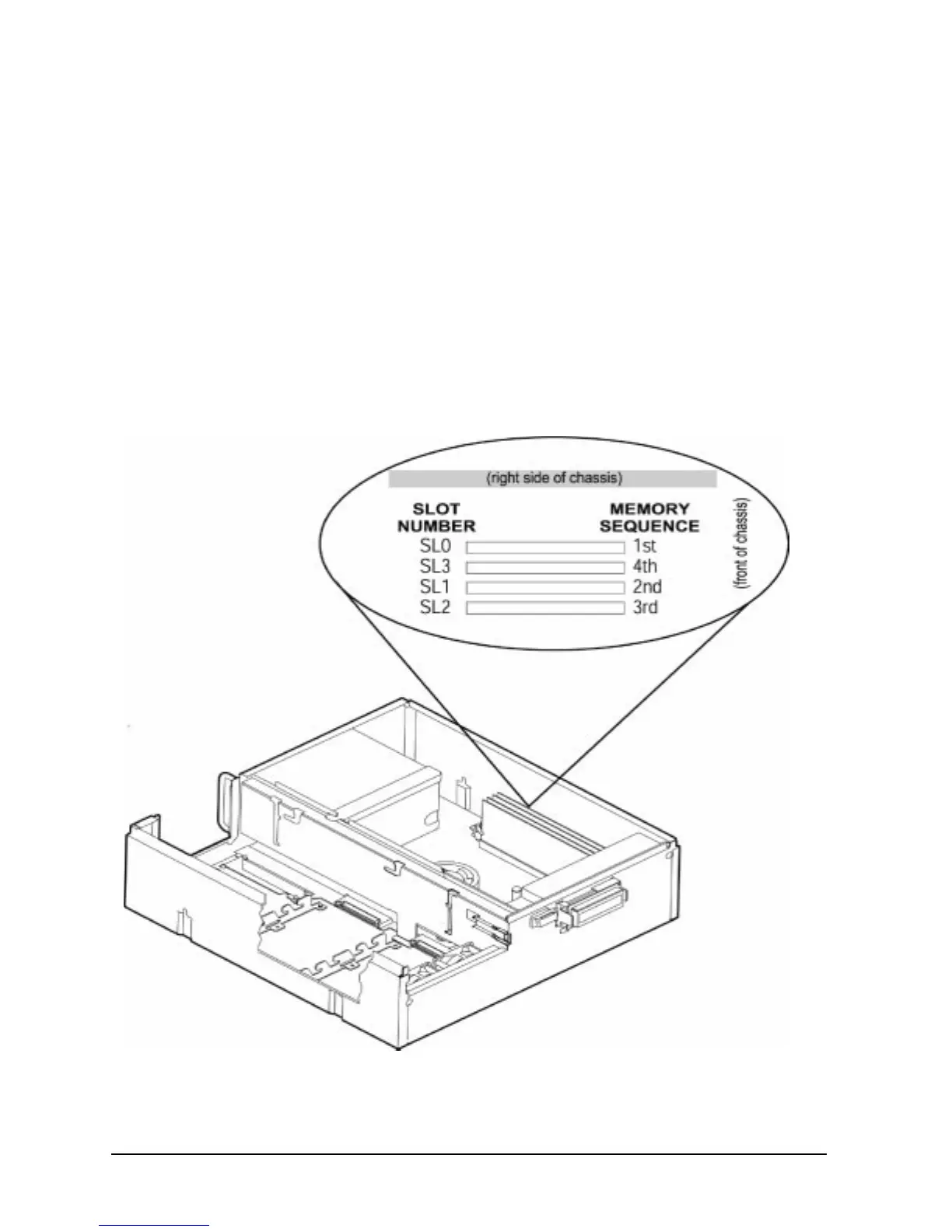

Figure 1-6. Memory Loading Sequence in the HP B2600
