HP b2600 Supplementary Guide

Appendix D
Remove/Replace Flexible Disk Drives
Removing the Flexible Disk Drive
98
Removing the Flexible Disk Drive
To remove the flexible disk drive, follow the procedure in this section. Note that this procedure
assumes you already have a SCSI card and cable installed in your system.
1. Complete the procedure in the section “Removing the Front Bezel and Top Cover” found in
Chapter 1.
2. Disconnect the flexible disk drive power cable from the system board by pressing in on the power
cable connector’s latch release. See
Figure D-1.

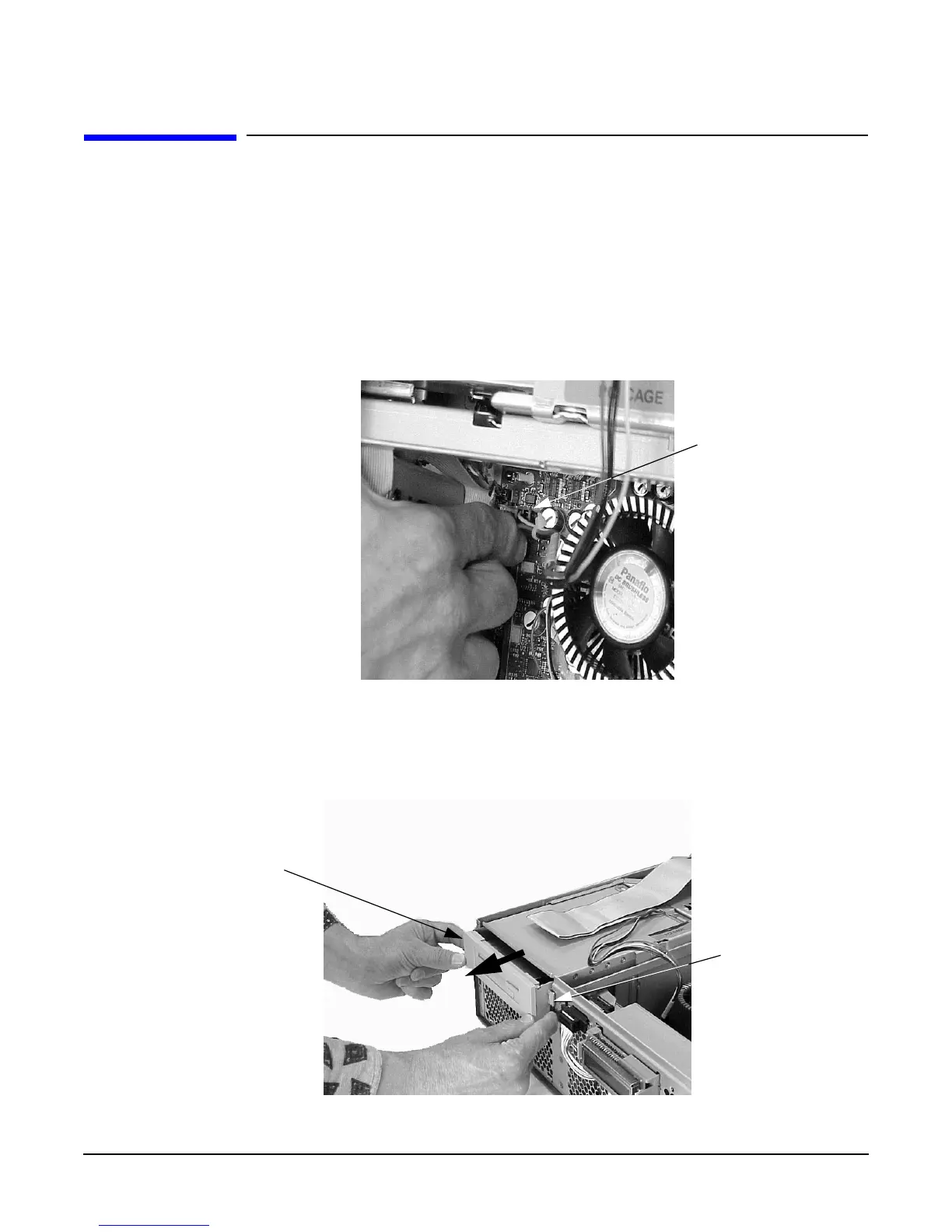

Figure D-1 Disconnecting the Flexible Disk Drive Power Cable
3. Remove the flexible disk drive and flexible disk drive bay area from the workstation by pressing
in on both flexible disk drive retainer clips and pull outward. See
Figure D-2.
Figure D-2 Remove the Flexible Disk Drive and Flexible Disk Drive Bay
Power Cable
Connector
Flexible Disk Drive
Retainer Clip
Flexible Disk Drive
Retainer Clip
