Appendix C
Remove/Replace DAT Drives
Removing the DAT Drive
86
Removing the DAT Drive
To remove the DAT drive, follow the procedure in this section. Note that this procedure assumes
you already have a SCSI card and cable installed in your system.
1. Complete the procedure in the section “Removing the Front Bezel and Top Cover” found in
Chapter 1.
2. Disconnect the DAT drive power cable from the system board by pressing in on the connector’s
latch release. See
Figure C-1.

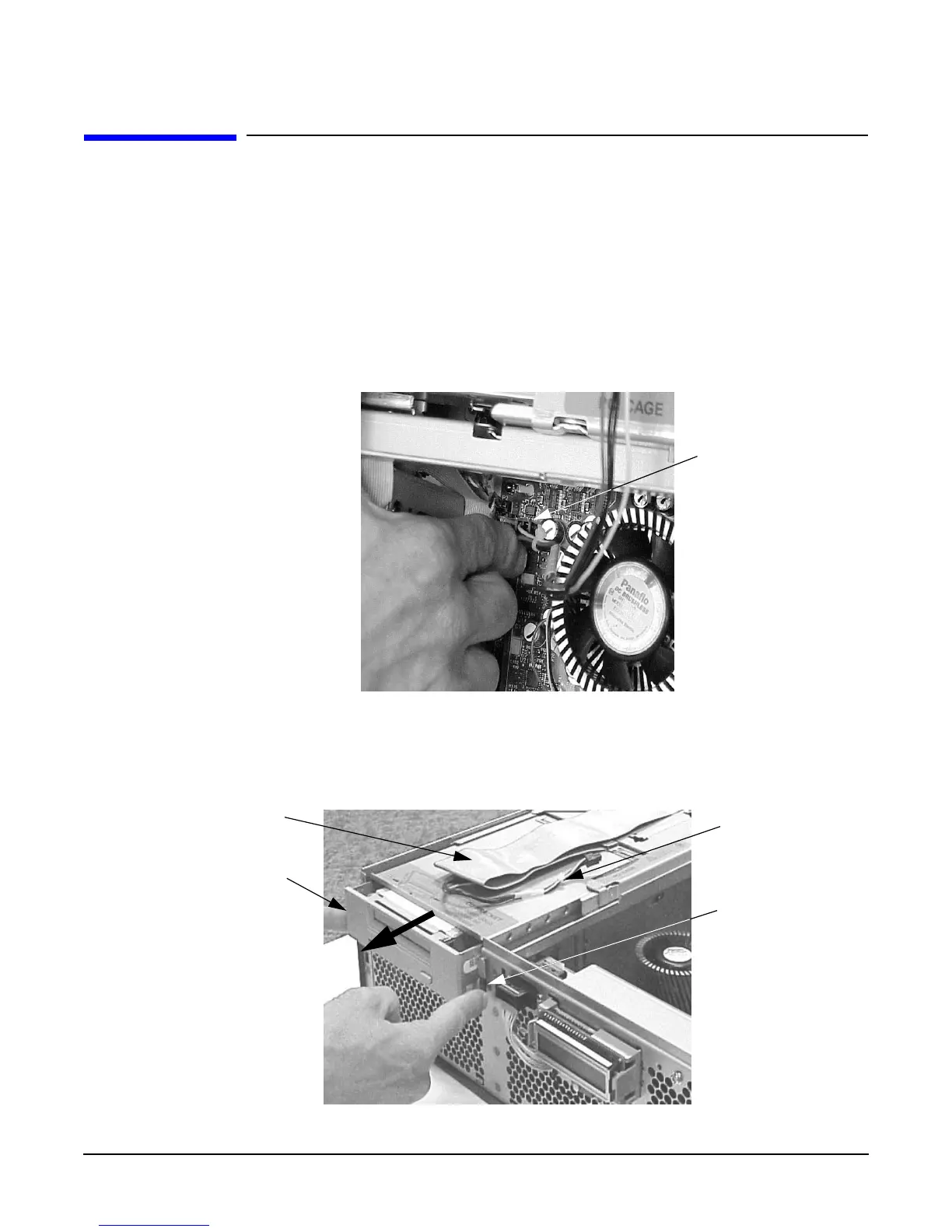

Figure C-1 Disconnecting the DAT Drive Power Cable
3. Remove the DAT drive and DAT drive bay from the workstation by pressing in on both DAT
drive retainer clips and pull outward. See
Figure C-2.
Figure C-2 Remove the DAT Drive and DAT Drive Bay Area
Power Cable
Connector
DAT Drive
Retainer Clip
DAT Drive
Retainer Clip
Power Cable
SCSI Cable
To Next Page
