40 Chapter1
Remove/Replace System Components
Removing/Replacing System Components
Removing the Liquid Crystal Display (LCD) Module
To remove the liquid crystal display, follow this procedure:
1. Complete the procedure in the section “Removing the Front Bezel and Top Cover”
found in this chapter.
2. Disconnect the LCD control cable. See Figure 1-43.

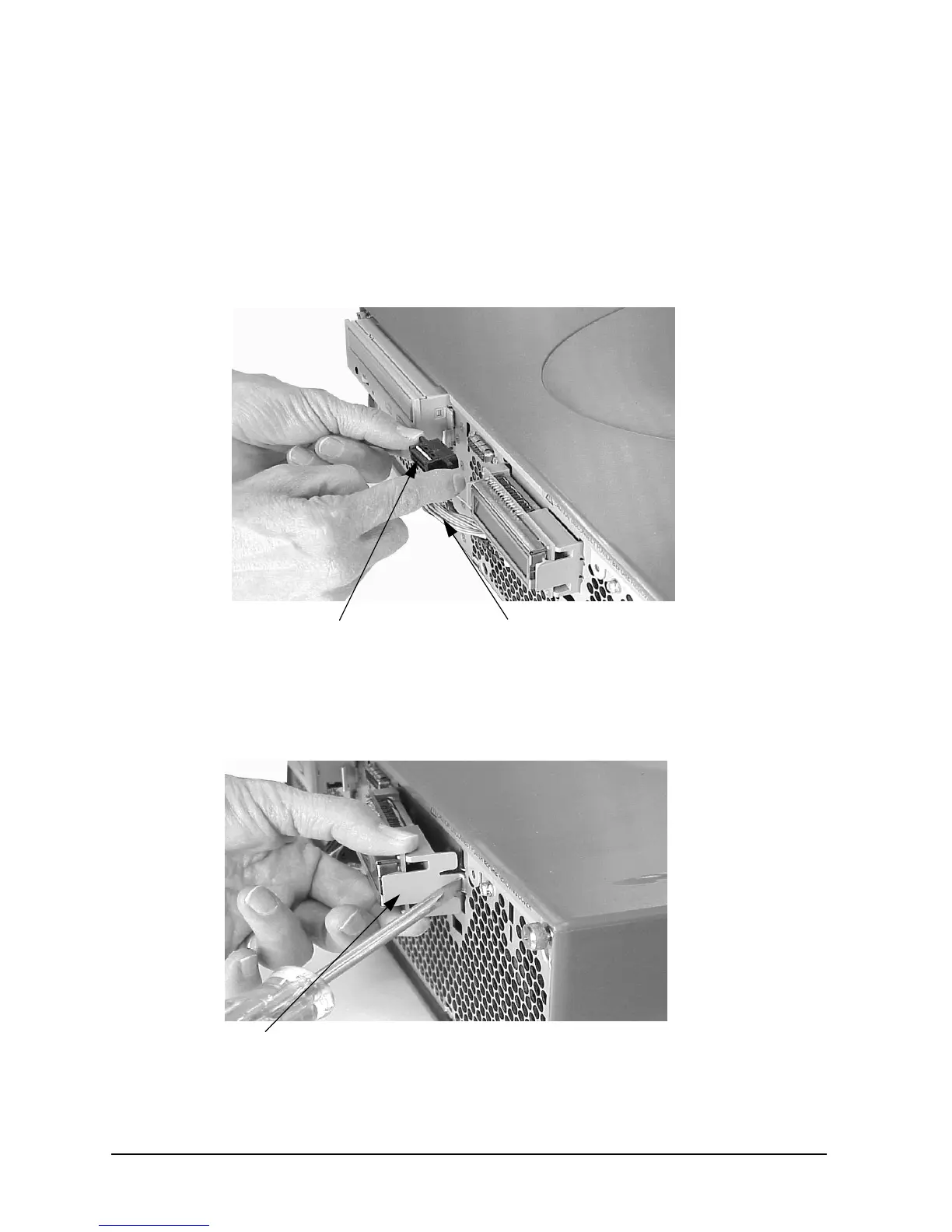

Figure 1-43. Disconnecting the LCD Control Cable
3. Press inward on the right side of the LCD’s plastic retainer with a screwdriver and pull
outward on this same side. See Figure 1-44. This will remove the LCD module.
Figure 1-44. Removing the LCD Module
LCD Control Cable
LCD Connector
LCD Module
To Next Page
