Accessing or Replacing the System Board
Accessing or Replacing the System Board
Removing the Side Panel for Easy Access to System Board
Components

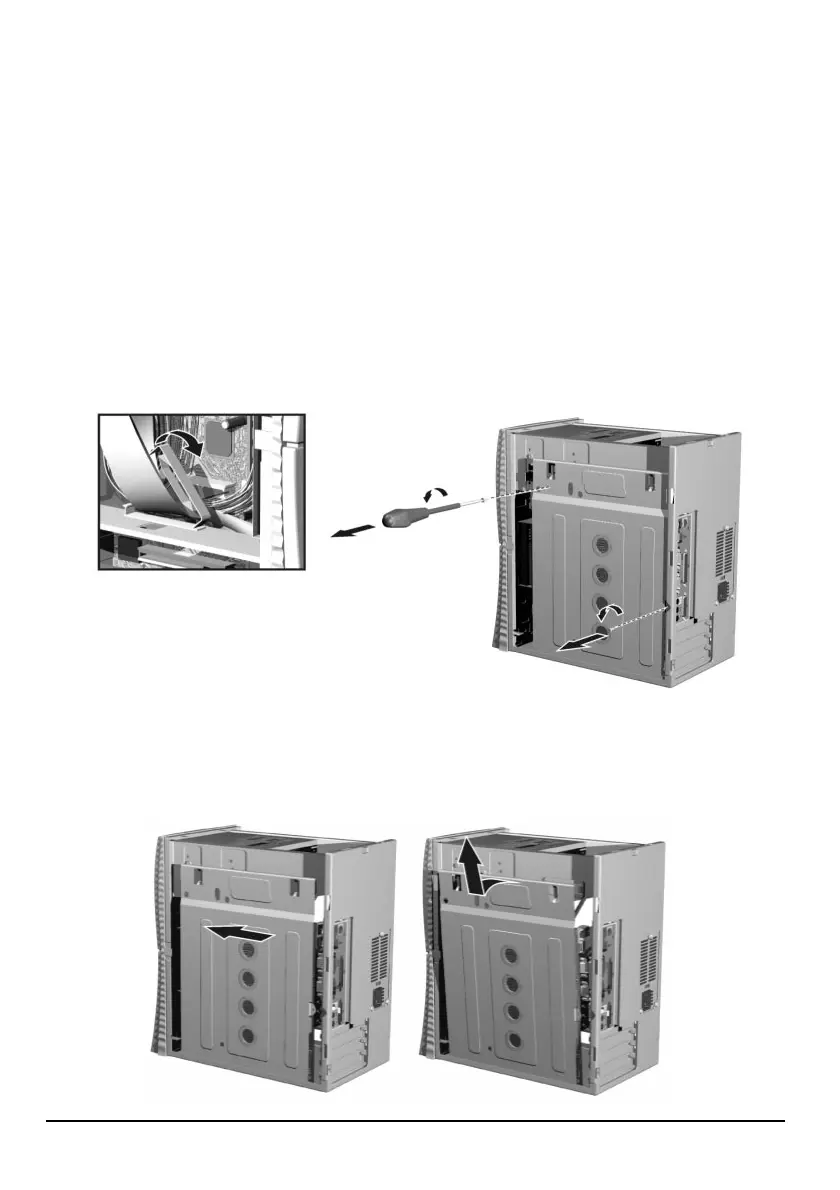

When replacing some components, you should take out the panel holding the system
board for easy access to the components. To do this:
1
Remove the PC’s cover. Refer to page 44.
2
Free the two cables held in place by the plastic clip.
3
Remove any cards from the expansion slots (see page 60).
4
Remove the two screws in the PC’s side panel.
5
Slide the panel towards the front of the PC until it is free of its retaining tabs.
6
Rotate the top of the panel out slightly and lift it up and out of the PC, taking care
not to pull any cables connected to the system board.
➁
➁➁
➁
➃
➃➃
➃
➄
➄➄
➄➅
➅➅
➅
