Accessing or Replacing the System Board
Replacing the Side Panel
1

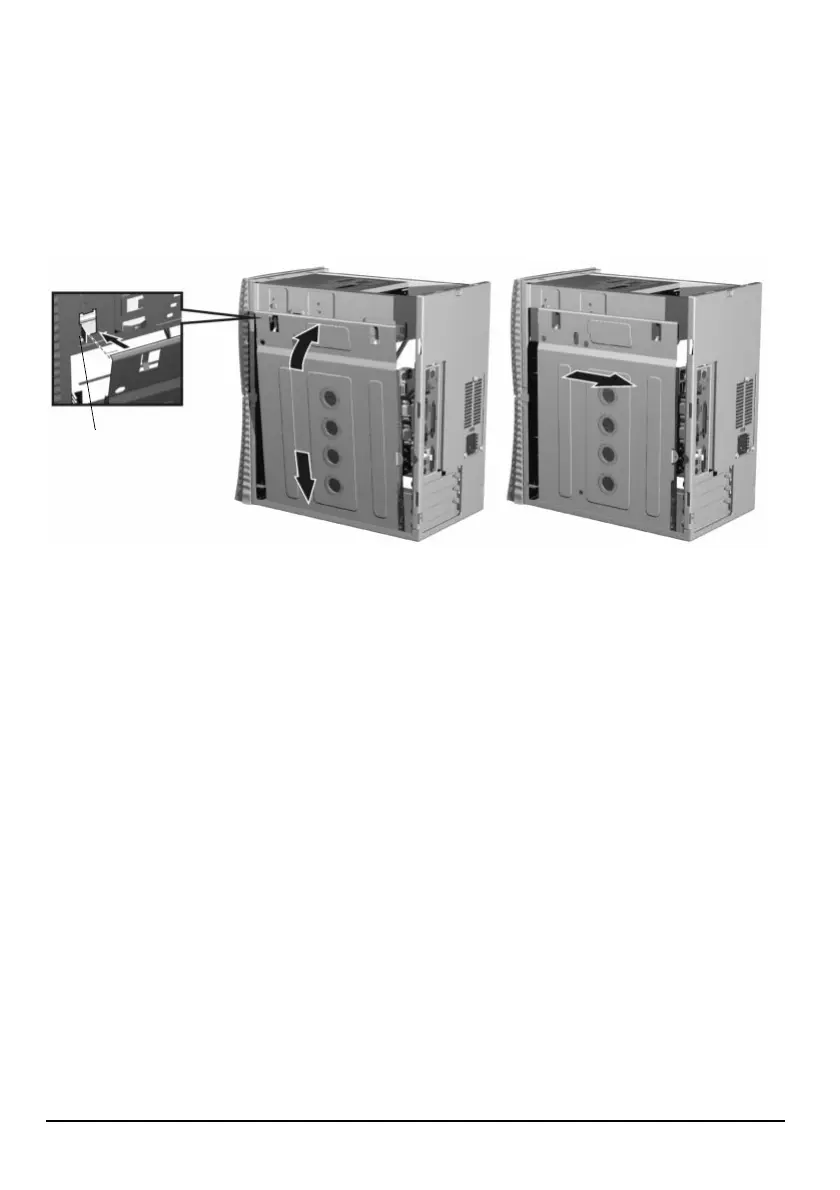

Replace the side panel in the PC. Align the panel with the metal positioning tab and
engage the lower retaining tabs.
2
Rotate the top of the panel towards the PC.
3
Slide the panel towards the rear of the PC until all the retaining tabs are engaged.
4
Replace the two screws that hold the panel in place.
5
Reattach the cables with the plastic clip.
6
Replace the cover. Refer to ”Replacing the Cover” on page 45.
