Replaceable Parts
Assembly and Disassembly Guidelines
5-20 HP EPM-441A/442A Service Guide
Replacing the Rear Panel Power Reference Cable Assembly
(Option 003)
1. Disassemble the power meter down to allow access to the rear
panel connectors. (Refer to “Removing the A4 Interface Assembly”,
on page 5-10.)

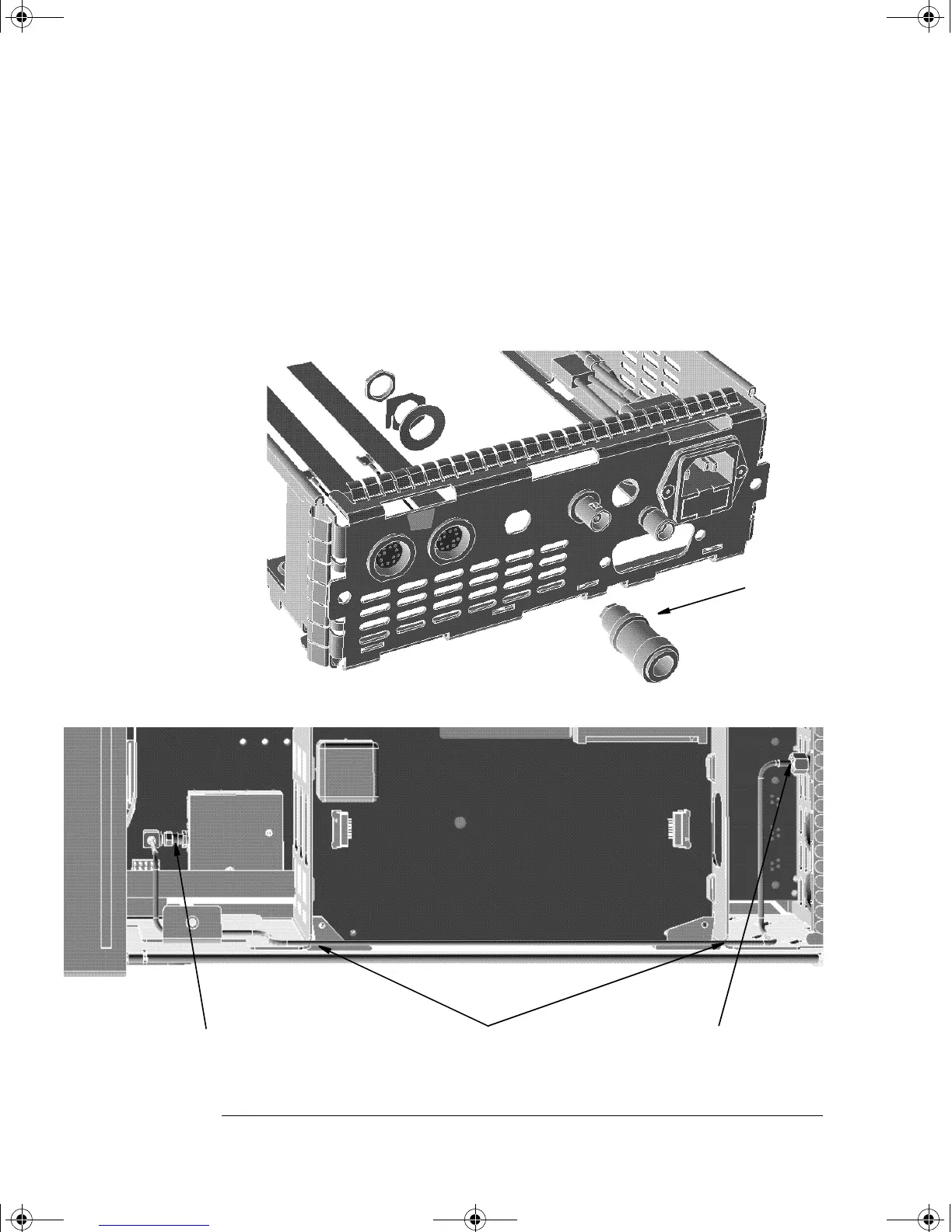

2. Replace the power reference cable assembly using the replacement
kit and the torques indicated on the following diagrams.
25 lb/in
6lb/in 9lb/in
tie wraps
