Operations 8

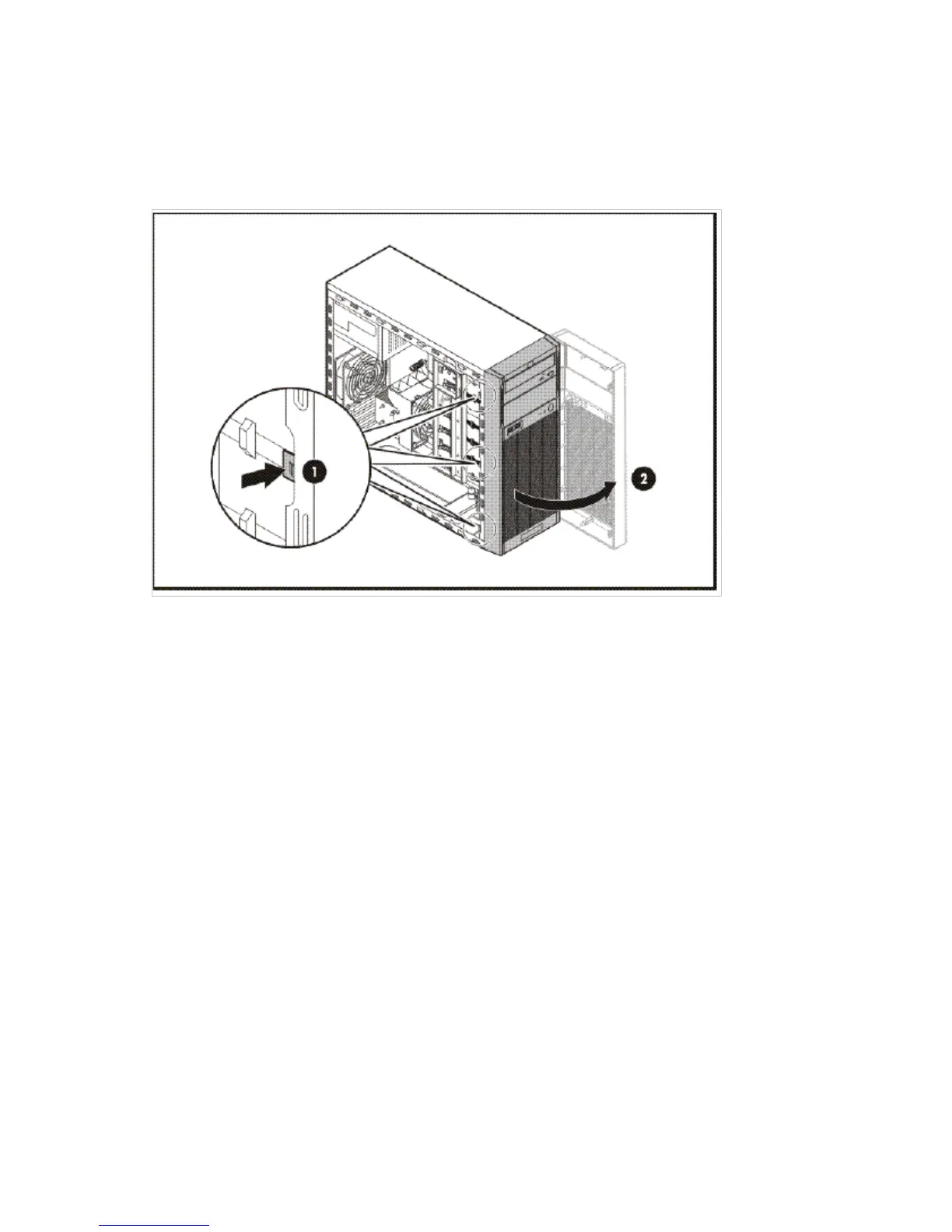

Remove the tower bezel (ML110 G6 servers)
1. Remove the access panel (on page 7).
2. To release the bezel, push the left side of the bezel.
3. Release the tabs, then turn the bezel counter-clockwise to remove it.
To replace the component, reverse the removal procedure.
For server-specific information, see the installation sheet that ships with the server.
Remove the tower bezel (ML150 G6 servers)
1. Insert the key provided with the server and turn clockwise to unlock the bezel.
The key is provided for the service person using model HSTNS-7105 with the HP RPS enablement kit.
2. Open the tower bezel.
3. Lift up the tower bezel and remove it from the chassis.
To replace the component, reverse the removal procedure.
For server-specific information, see the installation sheet that ships with the server.
