1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the bottom cover (Bottom cover on page 31).
3. Remove the solid-state drive to the left of the battery (Solid-state drive on page 32).
WARNING! To reduce potential safety issues, use only the user-replaceable battery provided with the
computer, a replacement battery provided by HP, or a compatible battery purchased from HP.
IMPORTANT: Removing a user-replaceable battery that is the sole power source for the computer can cause
loss of information. To prevent loss of information, save your work or shut down the computer through
Windows before you remove the battery.

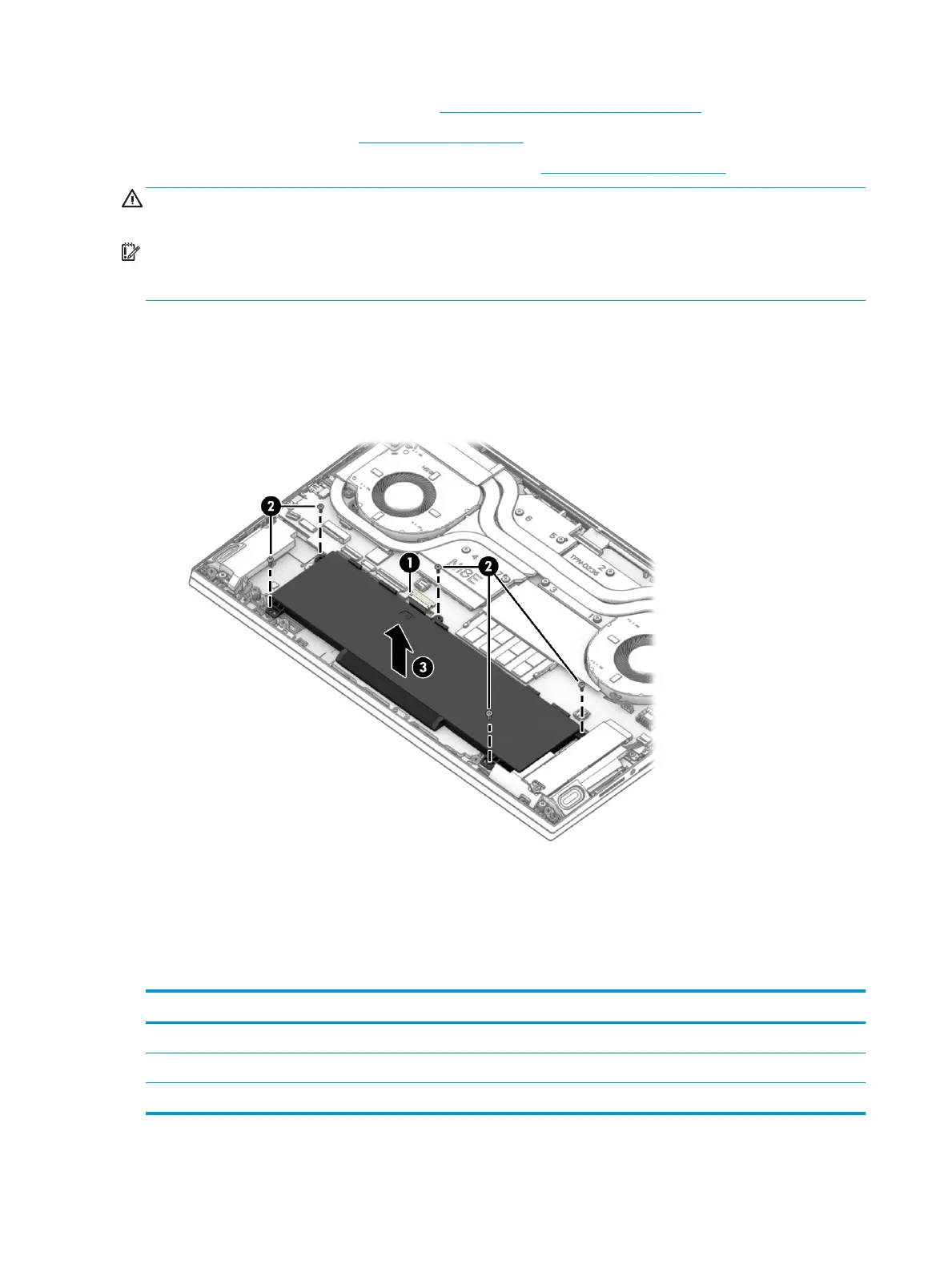

Remove the battery:
1. Doisconnect the battery cable from the system board (1).
2. Remove the ve Phillips M2.0 × 5.0 screw (2) that secure the battery to the computer.
3. Remove the battery from the computer (3).
To insert the battery, reverse the removal procedures.
RGB keyboard control board (select products only)
To remove the RGB keyboard control board, use this procedure and illustration.
Table
6-2 RGB keyboard control board description and part number
Description Spare part number
RGB keyboard control board L98746-001
RGB keyboard control board cable L98728-001
RGB keyboard control board LED cable L98729-001
38 Chapter 6 Removal and replacement procedures for authorized service provider parts
