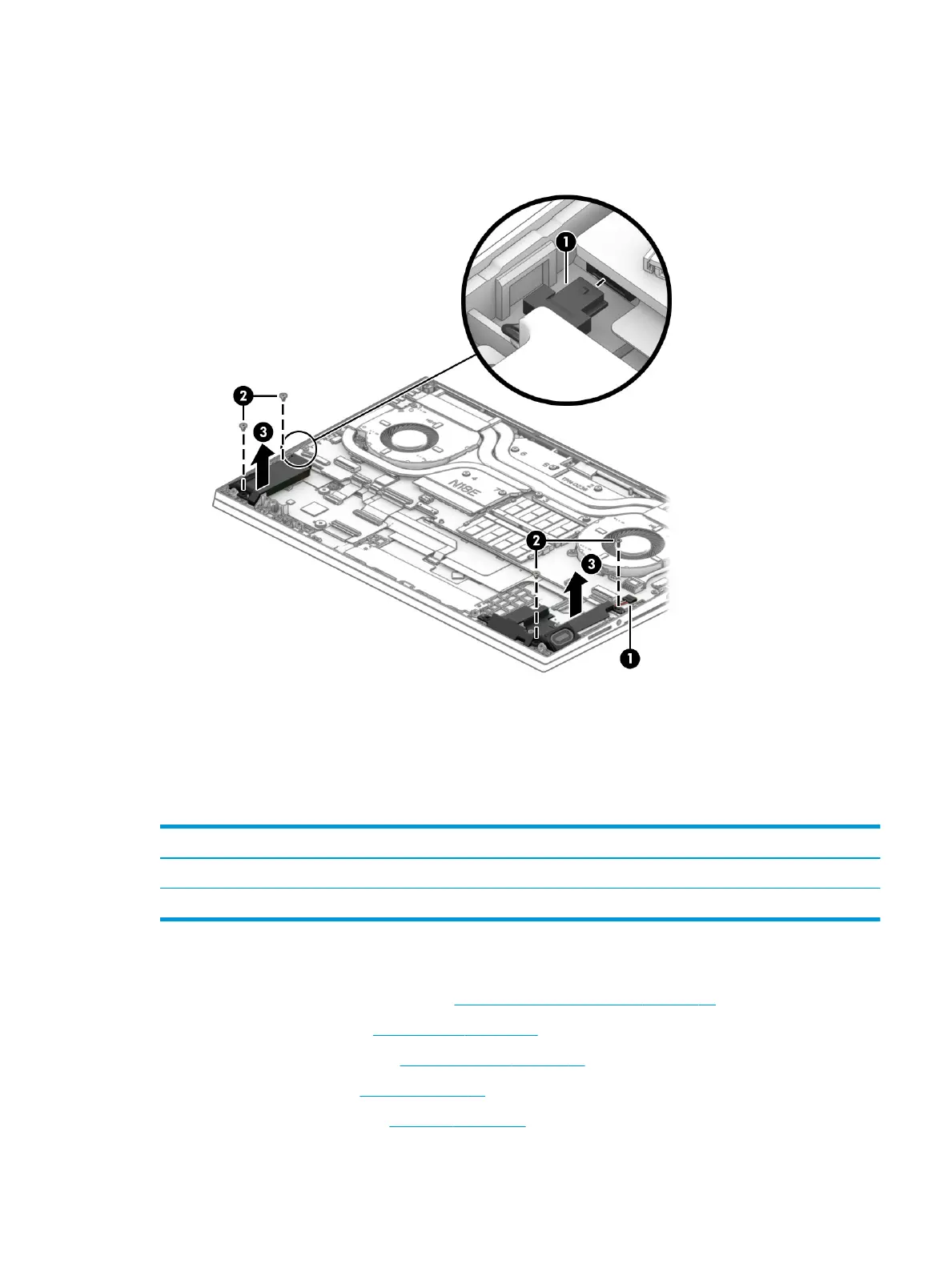

1. Disconnect the cables for each speaker from the system board (1).
2. Remove the two Phillips M2.0 × 4.0 screws from each speaker (2).
3. Remove the speakers from the computer (3) .
Reverse this procedure to install the speakers.
Card reader/audio board
To remove the card reader/audio board, use this procedure and illustration.
Table
6-5 Card reader/audio board description and part number
Description Spare part number
Card reader/audio board L98744-001
Card reader/audio board cable L98727-001
Before removing the card reader/audio board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the bottom cover (Bottom cover on page 31).
3. Remove the solid-state drives (Solid-state drive on page 32).
4. Remove the battery (see Battery on page 37).
5. Remove the left speaker (see Speakers on page 40).
Component replacement procedures 41
