3. Remove the solid-state drive to the left of the battery (Solid-state drive on page 32).
4. Remove the battery (see Battery on page 37).

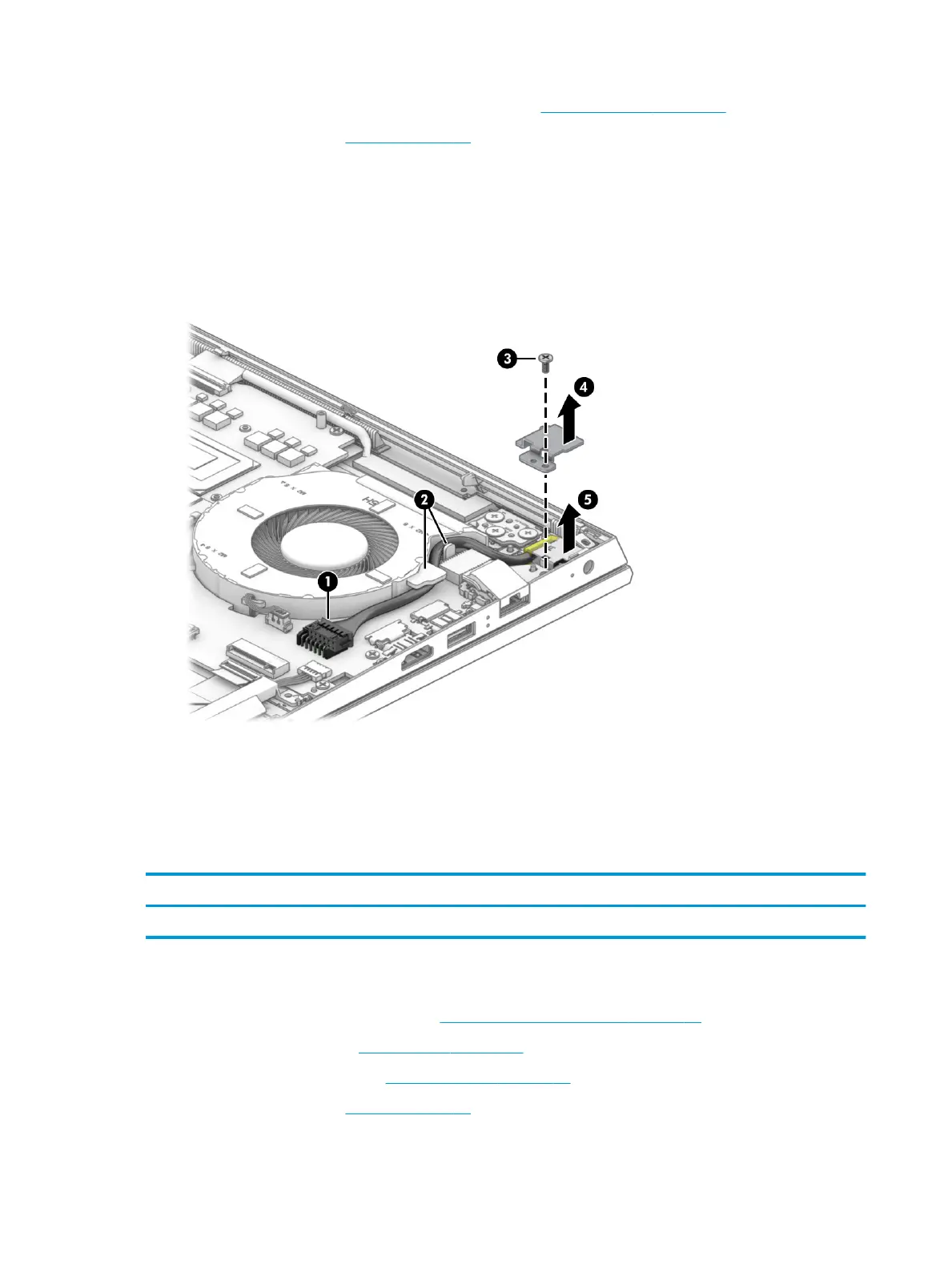

Remove the power connector cable:
1. Diconnect the cable from the system board (1), and then remove the cable from the routing along the
fan (2).
2. Remove the Phillips M2.0 × 5.0 screw (3) that secures the power connector cable to the computer.
3. Remove the bracket from the power connector (4), and then remove the power connector cable from the
computer
(5).
Reverse this procedure to install the power connector cable.
Speakers
To remove the speakers, use this procedure and illustration.
Table
6-4 Speaker description and part number
Description Spare part number
Speaker Kit L98748-001
Before removing the speakers, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the bottom cover (Bottom cover on page 31).
3. Remove the solid-state drives (Solid-state drive on page 32).
4. Remove the battery (see Battery on page 37).
Remove the speakers:
40 Chapter 6 Removal and replacement procedures for authorized service provider parts
