Removing an adjustable height stand
To remove the stand:
1. Remove all removable media, such as optical discs or USB ash drives, from the computer.
2. Turn o the computer properly through the operating system, then turn o any external devices.
3. Disconnect the AC power cord from the AC outlet and disconnect any external devices.
4. Place the computer face down on a soft at surface. HP recommends that you set down a blanket, towel,
or other soft cloth to protect the bezel and screen surface from scratches or other damage.
5. Remove the rear port cover, if it is installed. For instructions, see Rear port cover on page 23.

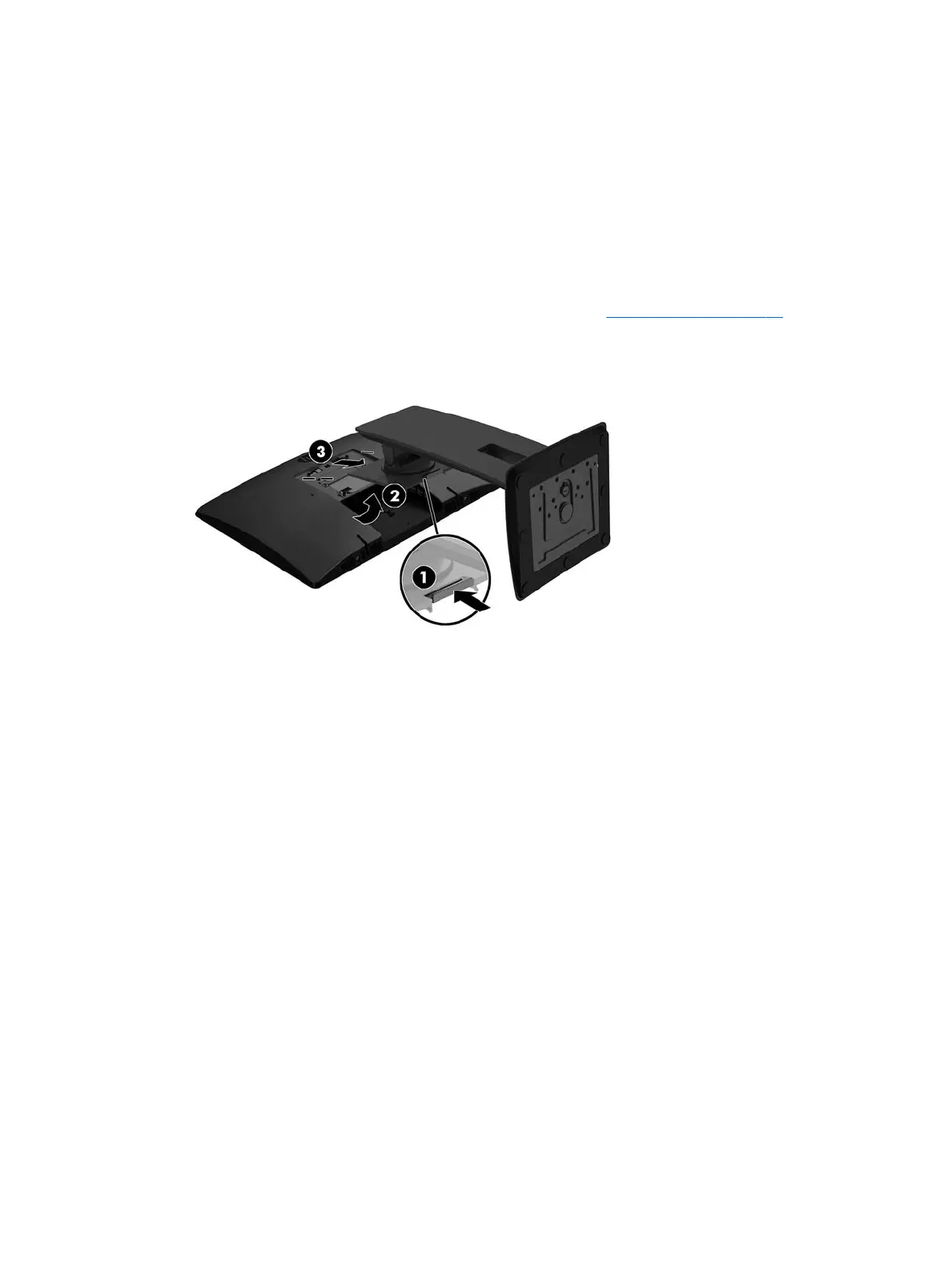

6. Press the release latch under the stand (1).
7. Lift the stand up (2), and then pull the stand hooks out of the computer (3).
22 Chapter 4 Removal and Replacement Procedures
