HP ProOne 600 G3 User Manual

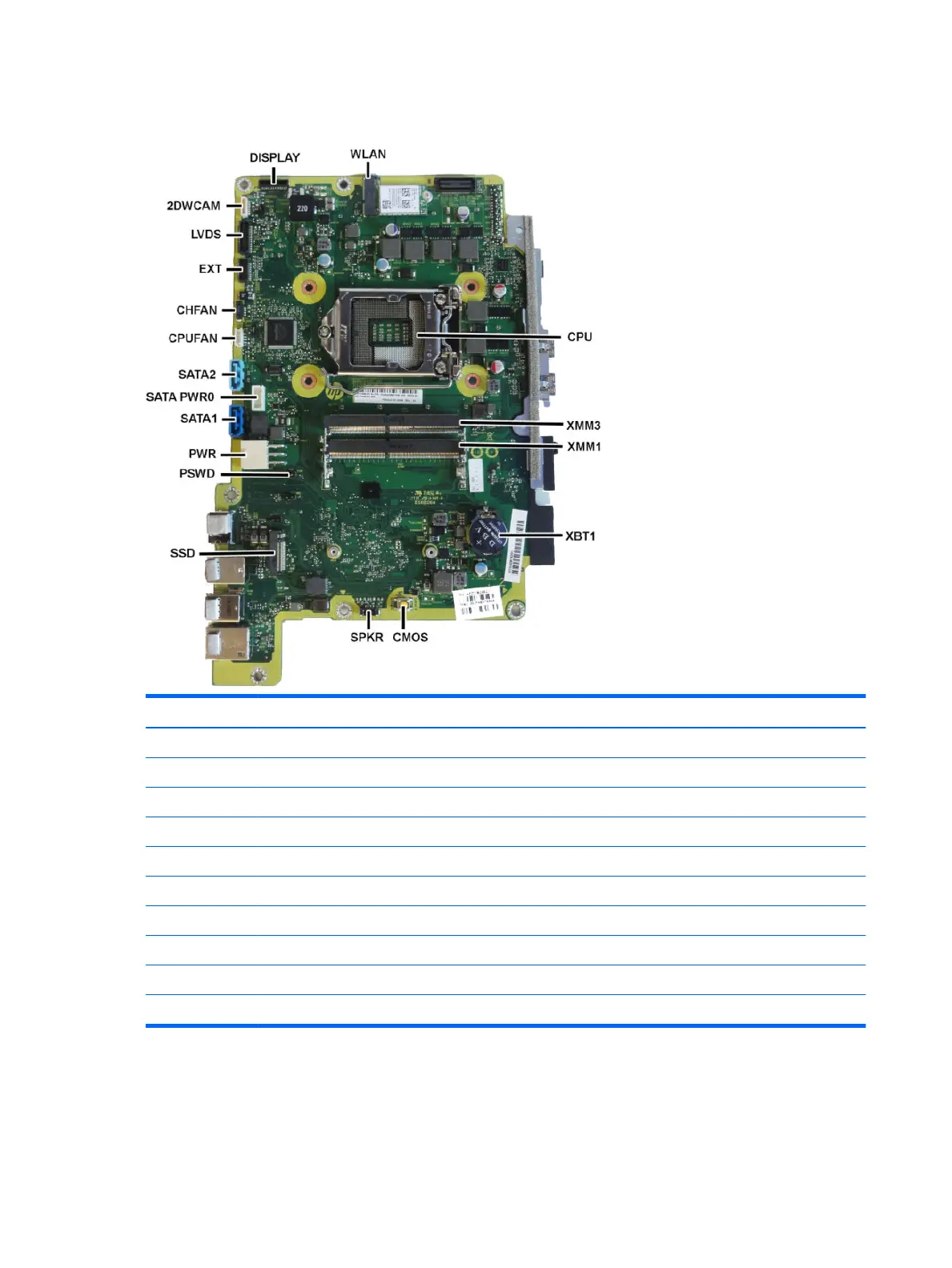

System board callouts
Sys Bd Label Color Component Sys Bd Label Color Component
DISPLAY Black Display connector PWR White Main power
WLAN Black WLAN module SATA1 Dark blue Second hard drive
CPU Black Processor socket SATAPWR0 White Hard drive power
XMM3 Black Memory module SATA2 Light blue Hard drive
XMM1 Black Memory module CPUFAN White Fan connector
XBT1 Black RTC battery CHFAN Black Fan connector
CMOS Yellow Reset CMOS EXT Black PS2/serial board
SPKR Black Speaker LVDS Black Display connector
SSD Black M.2 SSD drive 2DWCAM White Webcam connector
PSWD Green Clear system passwords
